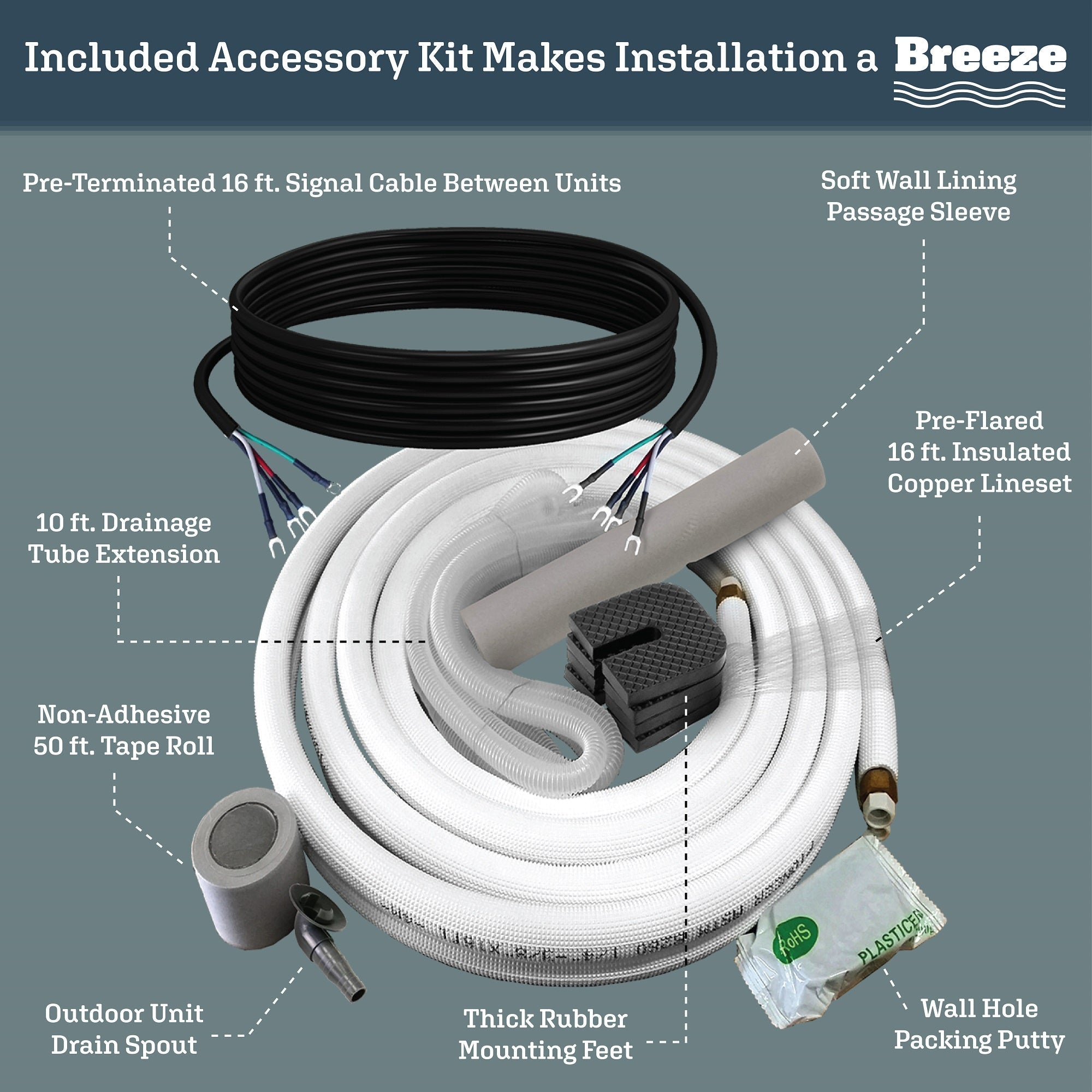

Pioneer® Diamante Essenza™ 23,000 BTU 17 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit
Pioneer® Diamante Essenza™ 23,000 BTU 17 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit
Pioneer® Diamante Essenza™ 23,000 BTU 17 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit
Pioneer® Diamante Essenza™ 23,000 BTU 17 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit
Pioneer® Diamante Essenza™ 23,000 BTU 17 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit
Pioneer® Diamante Essenza™ 23,000 BTU 17 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit
Pioneer® Diamante Essenza™ 23,000 BTU 17 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit
Pioneer Official Store

Pioneer® Diamante Essenza™ 23,000 BTU 17 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit

Sale price$1,228.00 Regular price$1,749.00
Pioneer® Diamante Essenza™ 23,000 BTU 17 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit
Pioneer® Diamante Essenza™ 23,000 BTU 17 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit Sale price$1,228.00 Regular price$1,749.00

Pioneer Diamante Essenza™ 23,000 BTU Wall-Mounted Ductless Mini Split

The Diamante Essenza delivers dependable heating and cooling with 17 SEER2 / 9.5 EER2 efficiency and 9.5 HSPF2 performance. This variable-speed DC inverter system arrives factory-precharged with eco-friendly R-32 refrigerant and operates in a standard ambient range (heating to 5°F, cooling to 122°F). Ideal for larger rooms, it provides quiet comfort in a sleek, high wall-mounted design.

Specifications

  • Type: High wall-mounted ductless heat pump (cooling & heating)

  • Power Supply: 208/230V, 60Hz, 1Ph

  • Cooling Rated Capacity: 23,000 BTU/h (range 5,120–24,500)

  • Heating Rated Capacity: 22,400 BTU/h (range 5,120–24,500)

  • Efficiency Ratings: 17.0 SEER2 / 9.5 EER2; 9.5 HSPF2 (Region IV); COP2 3.3 (47°F) / 1.8 (5°F)

  • Refrigerant: R-32 (factory-precharged)

  • Recommended Room Size: 600–950 sq ft; Minimum Room Size: 41 sq ft

  • Indoor Unit (WT024GLUI17HLD): Airflow 676/629/505/412/352 CFM; Sound 50/48/46/40/37 dB(A); Dimensions (W×D×H) 39-3/4" × 8-3/4" × 12-3/8"; Net/Gross 26.5 / 33.1 lbs

  • Outdoor Unit (YN024GLUI17RPD): Breaker 20A (double-pole); Sound 56 dB(A); Dimensions (W×D×H) 34" × 13-3/4" × 23-5/8"; Net/Gross 70.5 / 82.7 lbs

  • Piping Diameter: 1/4" × 1/2"; Minimum Installation Height: 6 ft

  • AHRI Reference: 217048737

Features

  • Operating Modes: Cooling, heating, dry, and ventilation

  • Drainage: Dual-drainage ports for flexible installs

  • Filtration: Washable, reusable air filters

  • Airflow Control: Dual-axis motorized louvers (up-down & left-right)

  • Remote Functions: ECO & SLEEP, Timer On/Off, TURBO, Self-Clean, MEMORY, IFEEL (ambient sensing)

  • Ambient Range: Heating to 5°F / Cooling to 122°F

Maintenance

  • Filters: Rinse washable filters regularly to maintain airflow

  • Self-Clean: Run the self-clean cycle periodically to reduce coil residue

  • Seasonal Care: Keep the outdoor unit clear of debris; verify condensate drainage; schedule annual professional checkups

Warranty

  • Coverage: See manufacturer’s parts and compressor warranty terms

  • Documentation: Refer to the AHRI Certificate and Energy Guide for certified ratings
