Pioneer Diamante Essenza™ 35,000 BTU Wall-Mounted Ductless Mini Split

The Diamante Essenza delivers reliable whole-room comfort with 35,000 BTU/h cooling and 35,400 BTU/h heating. This variable-speed DC inverter system arrives factory-precharged with eco-friendly R-32 refrigerant and is engineered for a standard ambient operating range (heating to 5°F, cooling to 122°F). It’s an excellent choice for large zones, offering balanced performance at 17 SEER2 / 9.5 EER2 and 8.5 HSPF2.

Specifications

  • Type: High wall-mounted ductless heat pump (cooling & heating)

  • Power Supply: 208~230V, 60Hz, 1Ph

  • Cooling Rated Capacity: 35,000 BTU/h (range 7,500–36,000)

  • Heating Rated Capacity: 35,400 BTU/h (range 7,500–36,000)

  • Efficiency Ratings: 17.0 SEER2 / 9.5 EER2; 8.5 HSPF2 (Region IV); COP2 3.2 (47°F) / 1.8 (5°F)

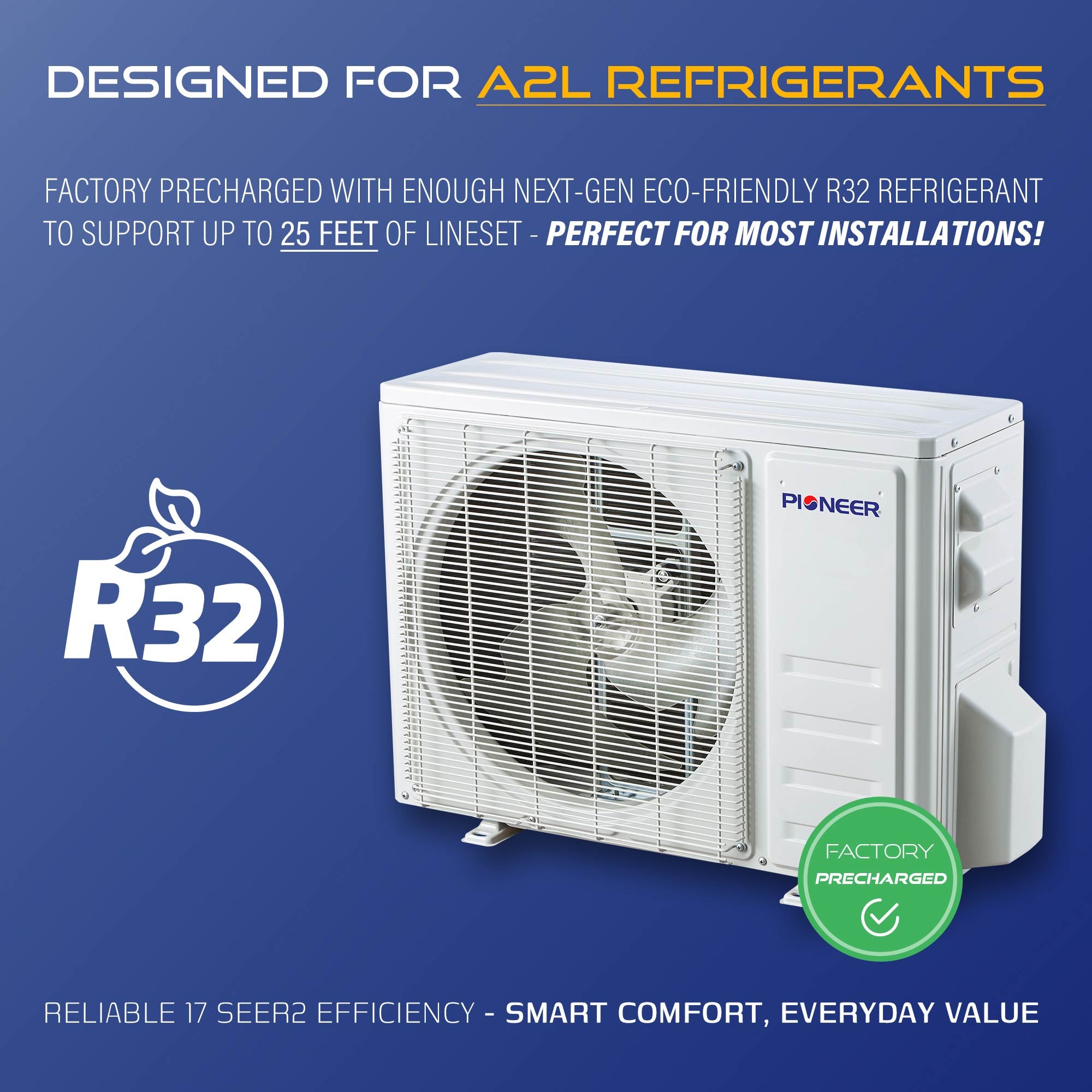

  • Refrigerant: R-32 (factory-precharged)

  • Recommended Room Size: 800–1,350 sq ft; Minimum Room Size: 63 sq ft

  • Indoor Unit (WT036GLUI17HLD): Airflow 882/741/564/458/411 CFM; Sound 55/52/46/41/39 dB(A); Dimensions (W×D×H) 46-7/8" × 10-1/4" × 14-1/4"; Net/Gross 38.6 / 46.3 lbs

  • Outdoor Unit (YN036GLUI17RPD): Breaker 30A (double-pole); Sound 63 dB(A); Dimensions (W×D×H) 38-1/2" × 16-1/2" × 31-5/8"; Net/Gross 105.8 / 120.2 lbs

  • Piping Diameter: 1/4"–5/8"; Minimum Installation Height: 6 ft

  • Ambient Range: Heating to 5°F / Cooling to 122°F

  • AHRI Reference: 217048738

Features

  • Operating Modes: Cooling, heating, dry, and ventilation

  • Drainage: Dual-drainage ports for flexible installs

  • Filtration: Washable, reusable air filters

  • Airflow Control: Dual-axis motorized louvers (up-down & left-right)

  • Remote Functions: ECO & SLEEP, Timer On/Off, TURBO, Self-Clean, MEMORY, IFEEL (ambient sensing)

Maintenance

  • Filters: Rinse washable filters regularly to maintain airflow

  • Self-Clean: Run the self-clean cycle periodically to reduce coil residue

  • Seasonal Care: Keep the outdoor unit clear of debris; verify condensate drainage; schedule annual professional checkups

Warranty

  • Coverage: See manufacturer’s parts and compressor warranty terms

  • Documentation: AHRI Certificate and Energy Guide available for certified ratings
