Diamante Pro™ Ductless Mini Split Heat Pump System
The Diamante Pro™ Ductless Mini Split Heat Pump System delivers efficient year-round comfort for residential and light commercial spaces. Designed for high wall-mounted installation, it combines superior energy performance with quiet operation, variable-speed inverter technology, and eco-friendly refrigerant for optimized heating and cooling performance.
Summary
- High Efficiency: Diamante Pro™ Ductless Mini Split Heat Pump System
- Cooling Capacity: 24,000 BTU/H with 21 SEER2 / 11 EER2 efficiency
- Heating Capacity: 24,600 BTU/H with 9.5 HSPF2 / 3.41 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- Mount Type: High Wall-Mounted Ductless Air Conditioning & Heating System
- Compressor: Variable-Speed DC Inverter Driven Performance
- Refrigerant: Factory-Precharged with Environmentally Friendly R454b
- Low Ambient Range: Operates from -4°F (Heating) up to 122°F (Cooling)
Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports for Flexible Installation
- Washable, Reusable Air Filters
- Dual-Axis Airflow with Motorized Up-Down and Left-Right Louvers

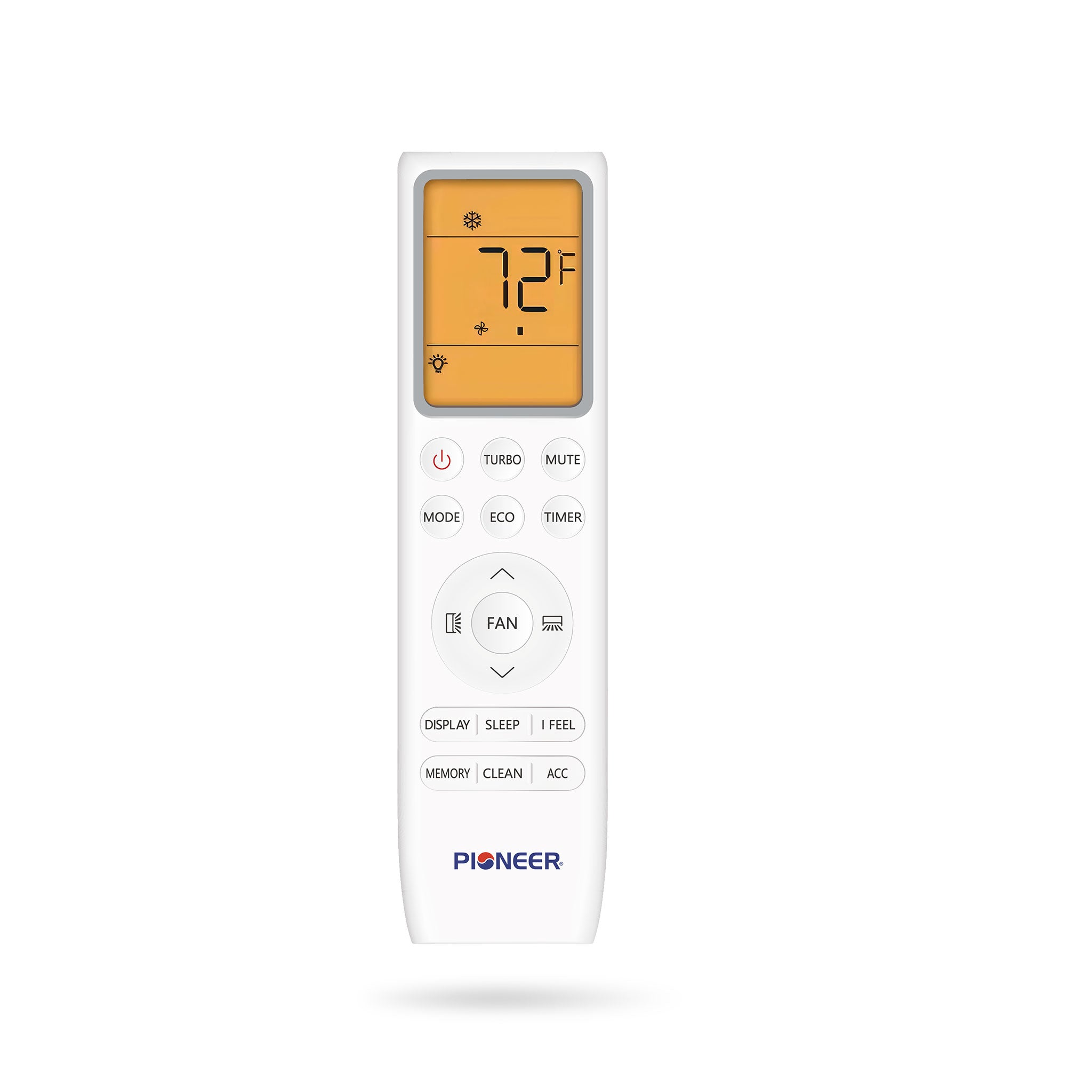

- Functional Remote Control Including:
- ECO & SLEEP Modes: Energy-Conservation Functions
- Timer On/Off Control: Scheduled Operation
- TURBO Mode: Rapid Cooling/Heating for High-Demand Use
- Self-Clean Cycle: Maintains Coil Cleanliness
- MEMORY Function: Recalls Preferred Settings
- IFEEL Mode: Senses and Adjusts to Local Temperature Automatically
Technical Information & Performance
-
System Kit
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 24,000 BTU/h
- Cooling Capacity Range: 5,100 – 25,200 BTU/h
- Cooling SEER2: 21.0 BTU/W.h
- Cooling EER2: 11.0 BTU/W.h
- Heating Rated Capacity: 24,600 BTU/h
- Heating Capacity Range: 5,100 – 25,900 BTU/h
- Heating HSPF2 (Region IV): 9.5 / 8.2 BTU/W.h
- Heating COP2 (47°F/5°F): 3.41 / 2.1 W/W
- Refrigerant Type: R454b
- Recommended Room Size: 750–1000 sq ft
- Minimum Room Size: 51 sq ft
- Minimum Installation Height: 6 ft
- Piping Diameter: 1/4" x 1/2"
- AHRI Reference: 217048745
-

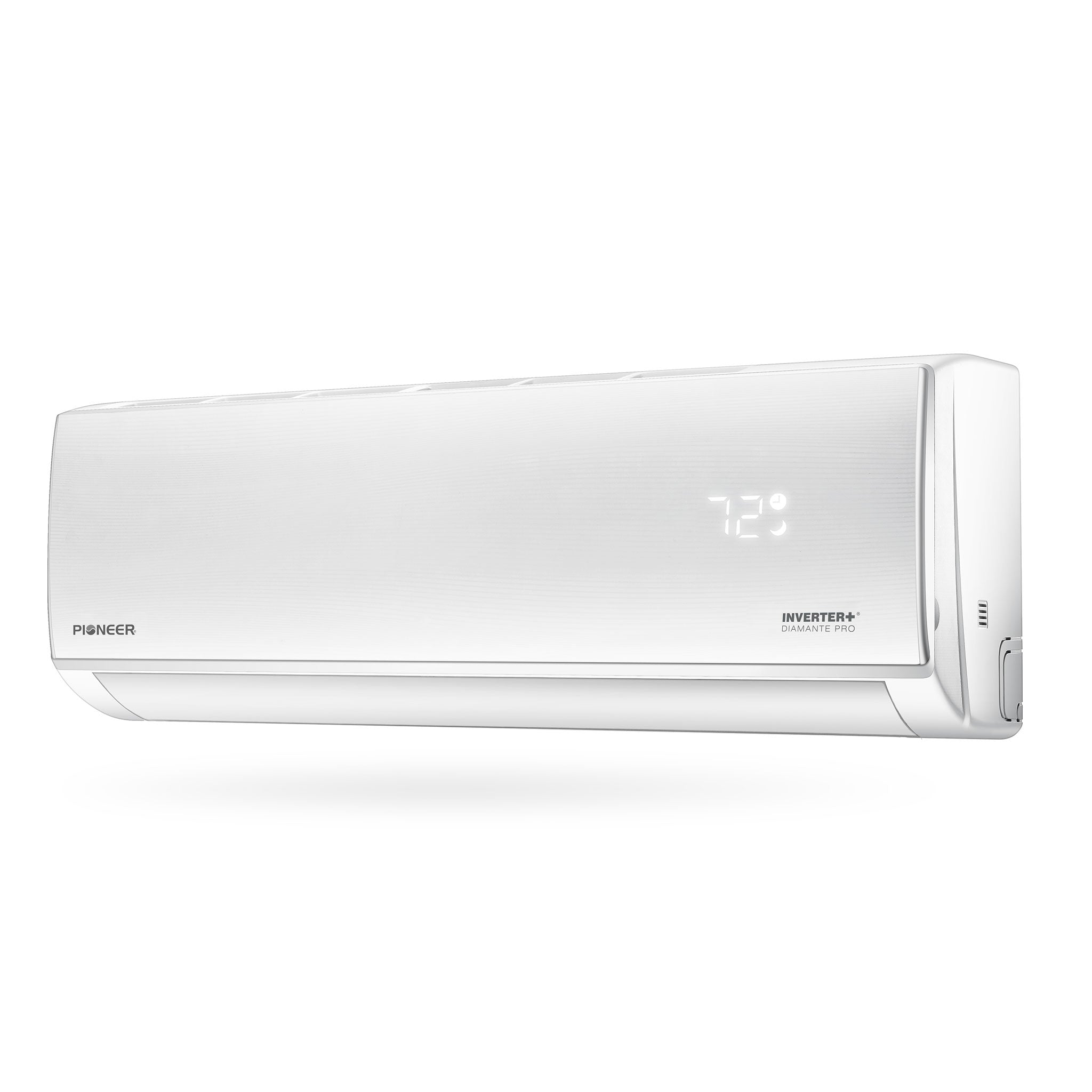

Indoor Unit
- Part Number: WT024GLSI20HLF
- Air Flow (Turbo/Hi/Med/Lo/Mute): 847 / 705 / 588 / 470 / 412 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 52 / 49 / 43 / 38 / 36 dB(A)
- Product Dimensions (W×D×H): 46⅞ × 10¼ × 14¼ in
- Carton Dimensions (W×D×H): 49⅝ × 13 × 17 in
- Net / Gross Weight: 36.4 / 43 lbs
-

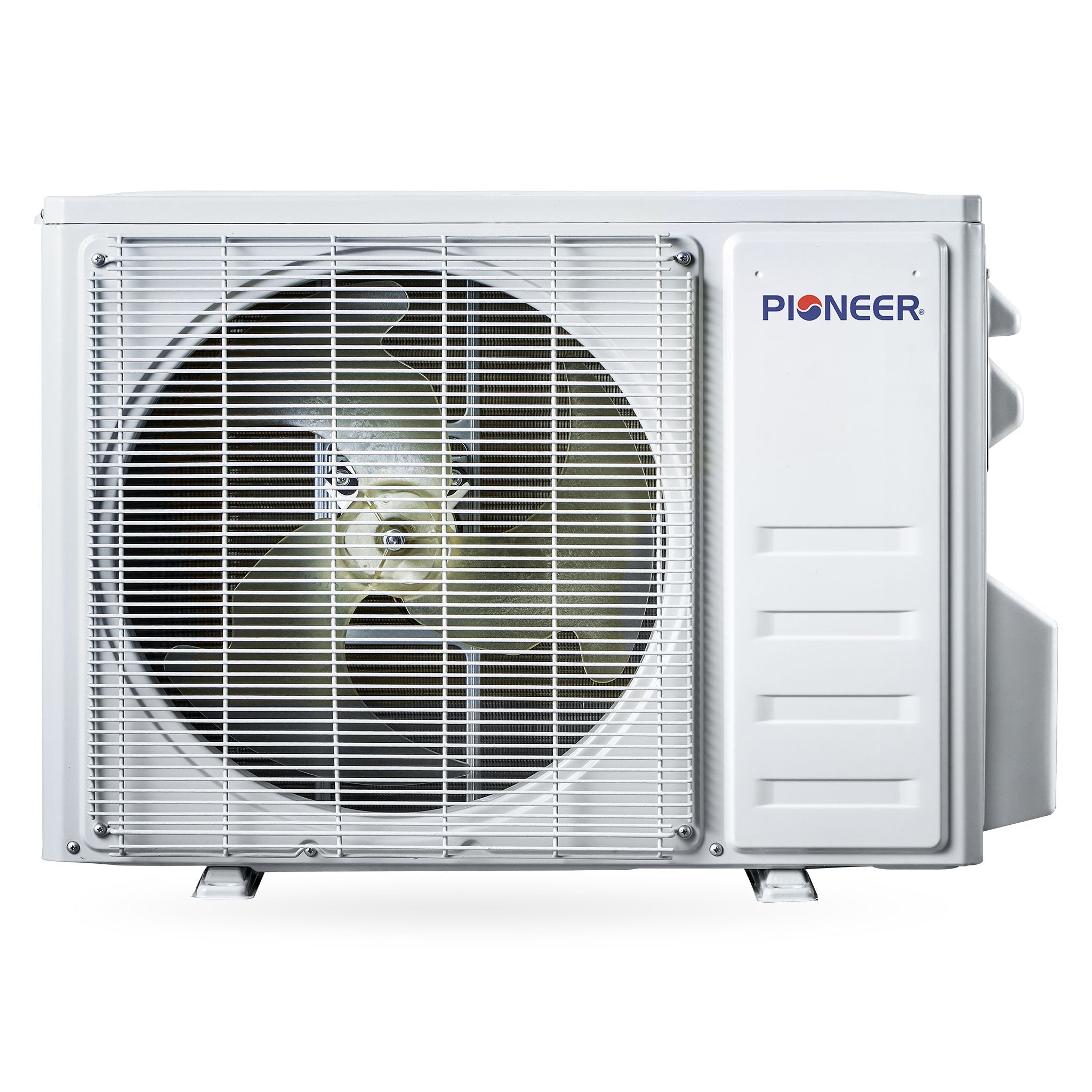

Outdoor Unit
- Part Number: YN024GLSI20RPF
- Breaker Needed: 20A (Double-Pole)
- Sound Level: 58 dB(A)
- Net Dimensions (W×D×H): 36½ × 14⅞ × 27½ in
- Carton Dimensions (W×D×H): 37¾ × 17⅛ × 30½ in
- Net / Gross Weight: 88.2 / 103.6 lbs
