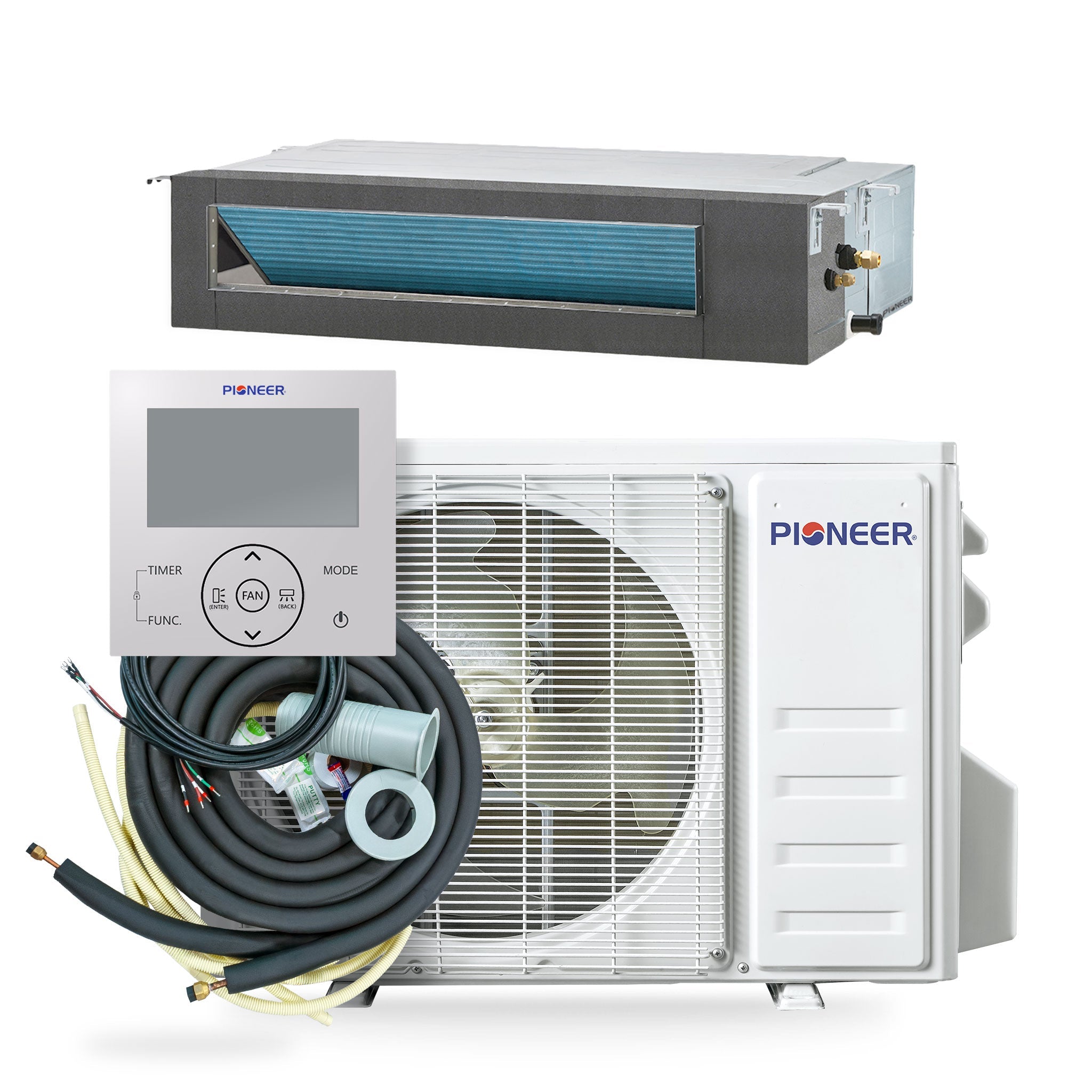

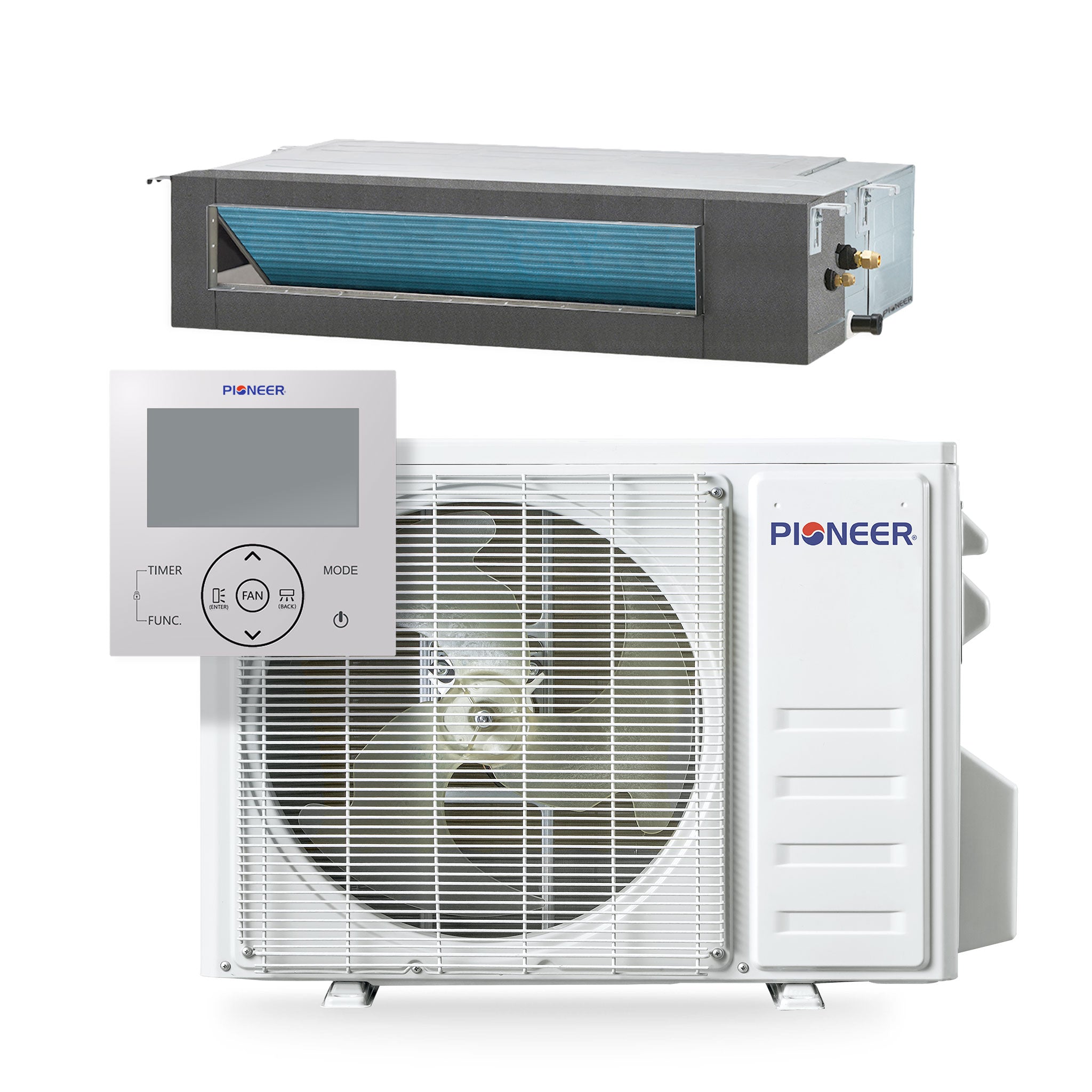

Quantum Ultra Ceiling Concealed Ducted Split Heat Pump System

The Quantum Ultra Ceiling Concealed Ducted Split Heat Pump System delivers efficient heating and cooling performance in a compact, concealed form. With its DC Inverter technology and environmentally friendly R454b refrigerant, it offers precise temperature control, quiet operation, and reliable performance in a wide range of ambient conditions — down to -13°F in heating and up to 131°F in cooling.

Summary

• Model: High Efficiency Quantum Ultra Ceiling Concealed Ducted Split Heat Pump System
• Cooling Capacity: 11,000 BTU/H with 18.5 SEER2 / 11.7 EER2 efficiency
• Heating Capacity: 12,000 BTU/H with 8.5 HSPF2 / 3.3 COP2 efficiency
• Voltage: 208/230V, 60Hz, 1Ph
• Mount Type: Ceiling Concealed Mounted (Ducted)
• Performance: Variable-Speed DC Inverter Driven
• Refrigerant: Factory-Precharged with Environmentally Friendly R454b
• Operating Range: Ultra Low Ambient — Heating down to -13°F / Cooling up to 131°F

Features

• Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
• Dual-Drainage Ports for Flexible Installation
• Washable and Reusable Air Filters
• Dual-Axis Airflow with Motorized Up-Down and Left-Right Louvers

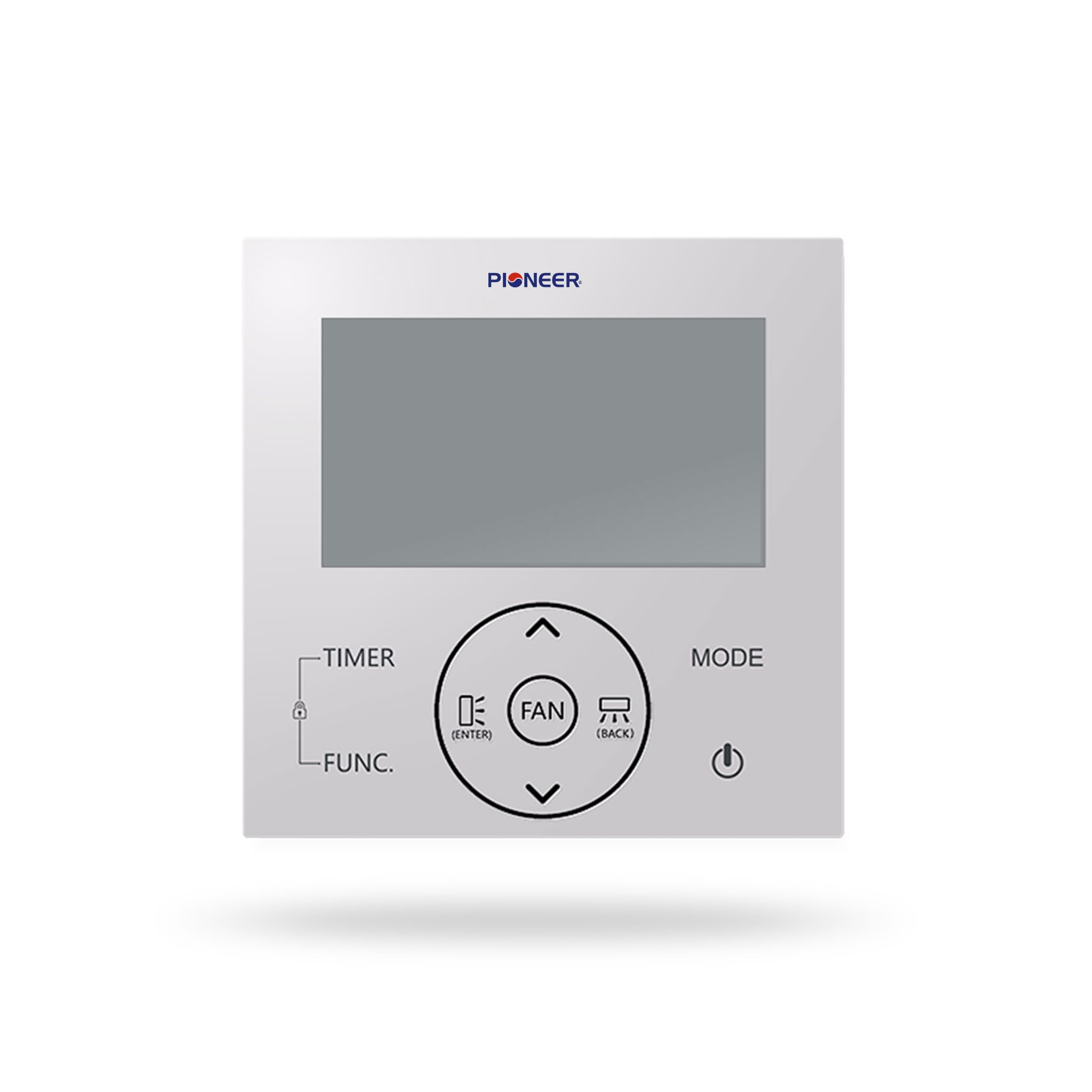

• Functional Remote Control Including:
  • ECO and SLEEP Modes for Energy Conservation
  • Timer On/Off Control
  • TURBO Mode for High-Demand Operation
  • Self-Clean Cycle
  • MEMORY Function to Recall Favorite Settings
  • IFEEL Mode for Local Temperature Detection and Adjustment

Technical Information & Performance

• System Kit
  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 11,000 BTU/h
  • Cooling Capacity Range: 2,000~12,300 BTU/h
  • Cooling SEER2: 18.5 BTU/W.h
  • Cooling EER2: 11.7 BTU/W.h
  • Heating Rated Capacity: 12,000 BTU/h
  • Heating Capacity Range: 3,100~12,300 BTU/h
  • Heating HSPF2 (Region IV): 8.5 / 7.5 BTU/W.h
  • Heating COP2 (47°F/5°F): 3.3 / 1.8 W/W
  • Refrigerant Type: R454b
  • Suitable Area: 350~500 Sq.Ft.
  • AHRI Reference: 217048763
  • AHRI Certificate
  • Energy Guide
• Indoor Unit
  • Part Number: RT012GLSILCFHG
  • Air Flow (Turbo/Hi/Med/Lo/Mute): 360 / 330 / 270 / 210 / 180 CFM
  • Sound Level (Turbo/Hi/Med/Lo/Mute): 43 / 41 / 39 dB(A)
  • Dimensions (W x D x H): 27½" × 19¼" × 7⅞"
  • Carton Dimensions: 35½" × 21⅞" × 9⅞"
  • Net / Gross Weight: 33.1 / 40.8 lbs.

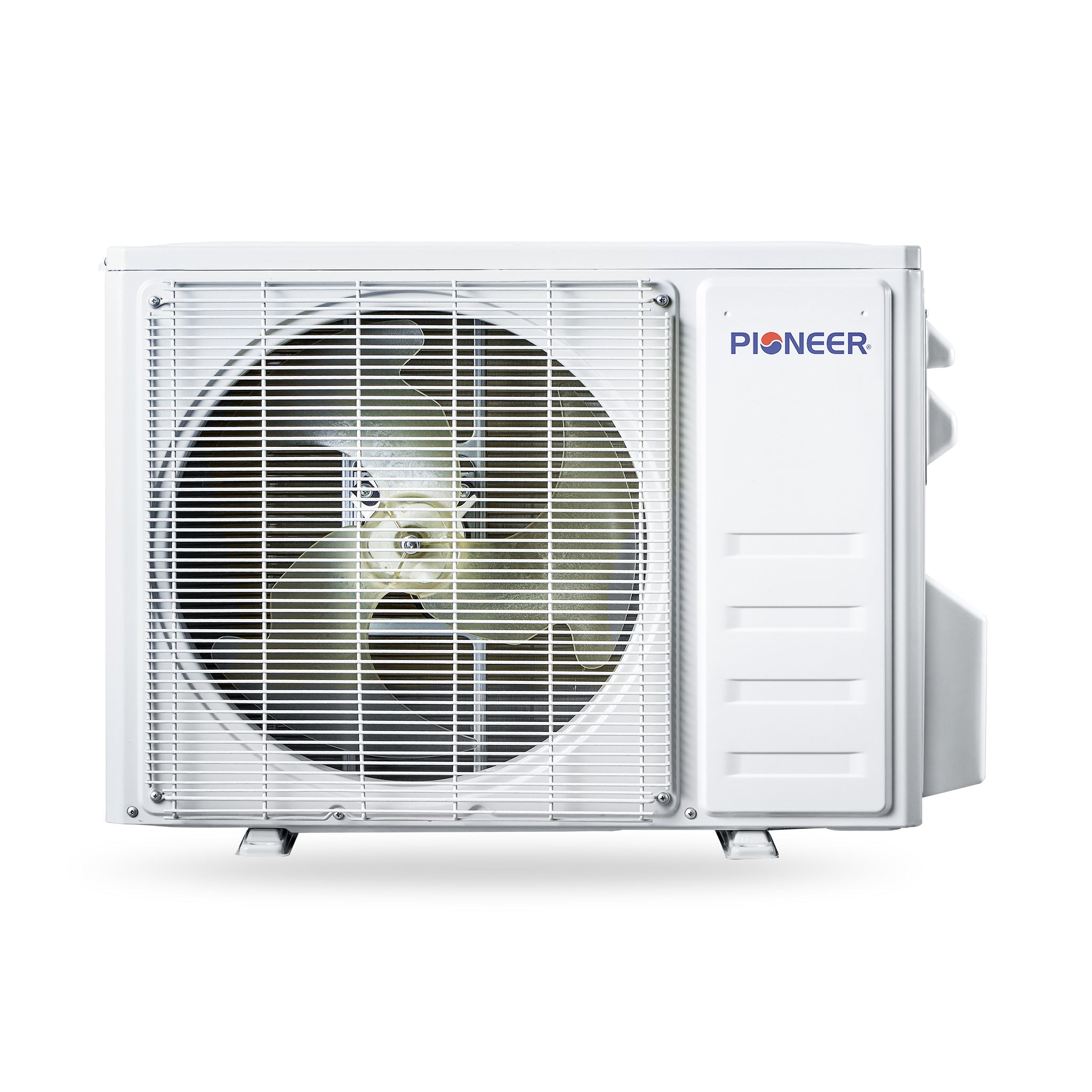

• Outdoor Unit
  • Part Number: YN012GLSI24RPG
  • Breaker Requirement: 15A (double-pole)
  • Sound Level: 52 dB(A)
  • Dimensions (W x D x H): 31⅞" × 12" × 21⅝"
  • Carton Dimensions: 32⅞" × 13" × 22⅝"
  • Net / Gross Weight: 58.4 / 65.0 lbs.

Dimension Chart
