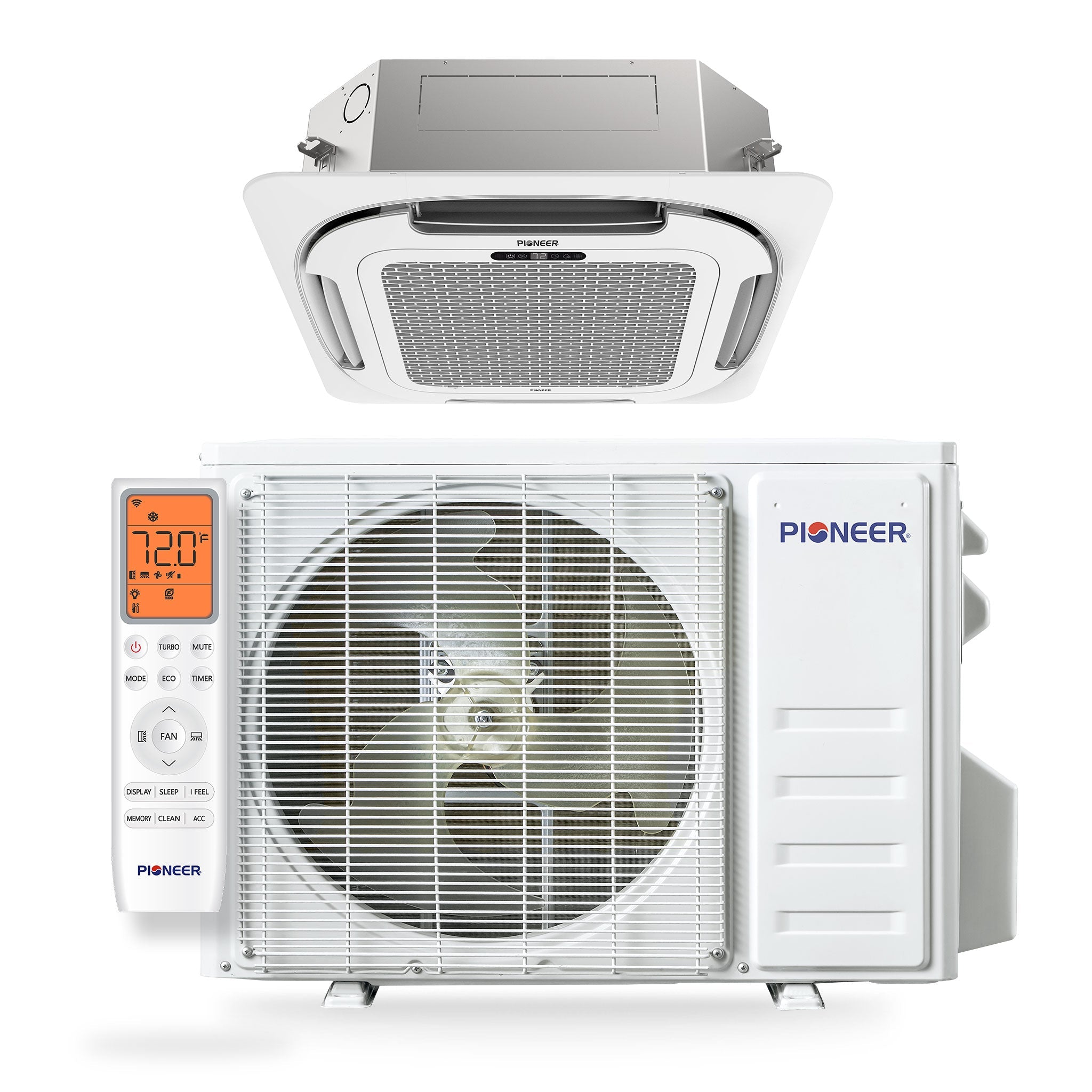

Quantum Ultra Ceiling Cassette Split Heat Pump System

The Quantum Ultra Ceiling Cassette Split Heat Pump System is a high-efficiency ductless air conditioning and heating solution designed for discreet ceiling installation. Delivering powerful year-round comfort, it operates quietly, efficiently, and reliably—even in extreme temperatures as low as -13°F and as high as 131°F. With DC inverter technology, Wi-Fi control, and energy-efficient performance, this system provides optimal comfort for spaces of 350–500 sq. ft.

Summary

• High Efficiency Quantum Ultra Ceiling Cassette Split Heat Pump System
• Cooling capacity: 12,000 BTU/H with 22 SEER2 / 11.7 EER2 efficiency
• Heating capacity: 12,500 BTU/H with 9.5 HSPF2 / 3.6 COP2 efficiency
• Voltage: 208/230V, 60Hz, 1Ph
• Ceiling Cassette Mounted Ductless Air Conditioning & Heating System
• Variable-Speed DC Inverter Driven Performance
• Factory-Precharged with Environmentally Friendly R454b Refrigerant
• Ultra Low Ambient Range: Operates from -13°F (Heating) to 131°F (Cooling)

Features

• Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
• Dual-Drainage Ports
• Washable, Reusable Air Filters
• Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)

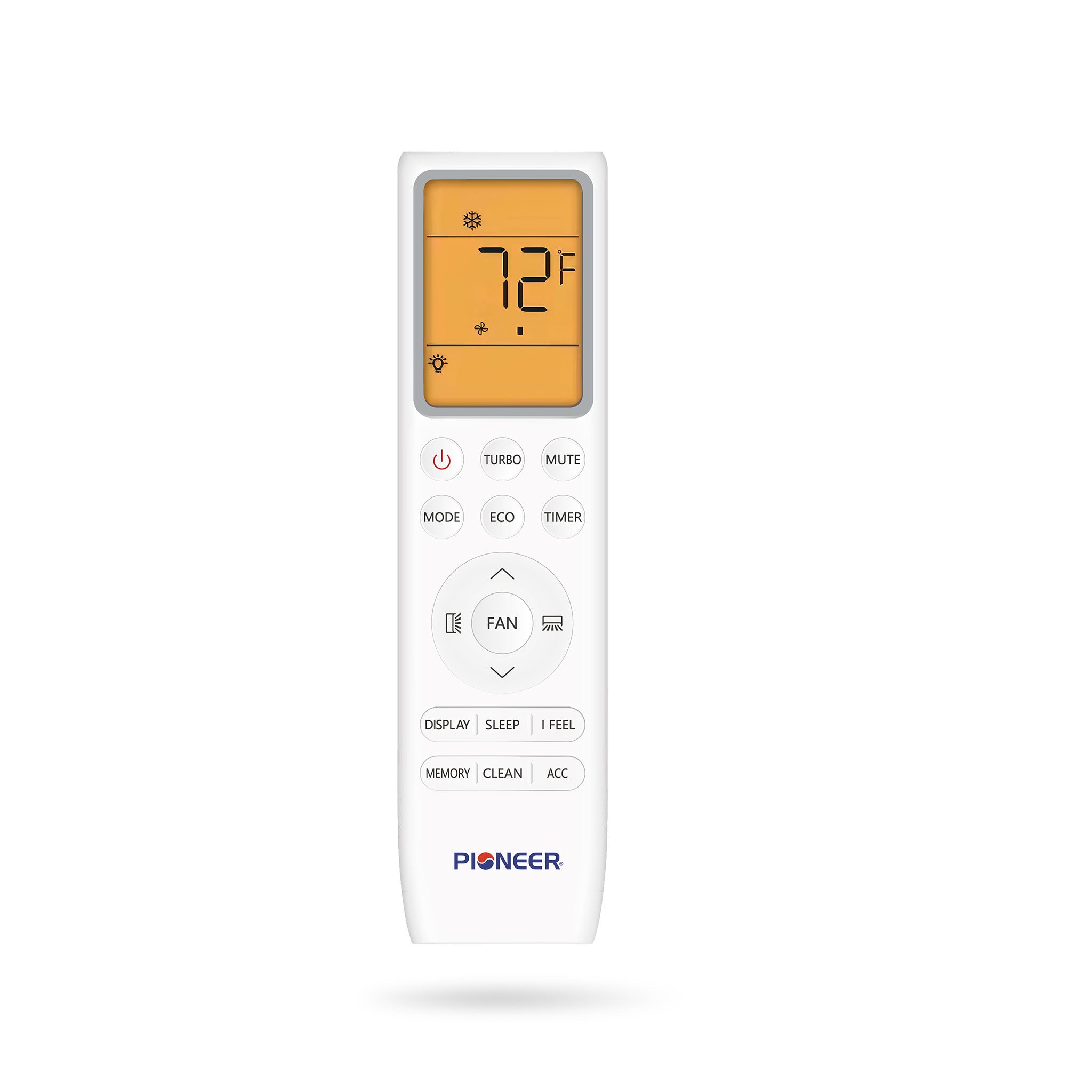

• Functional Remote Control Featuring:
  • ECO and SLEEP Modes for Energy Conservation
  • Timer On/Off Control
  • TURBO Mode for High-Demand Situations
  • Self-Clean Cycle
  • MEMORY Function to Recall Favorite Settings
  • IFEEL Sensor to Detect and Adjust to Local Temperature

Technical Information & Performance

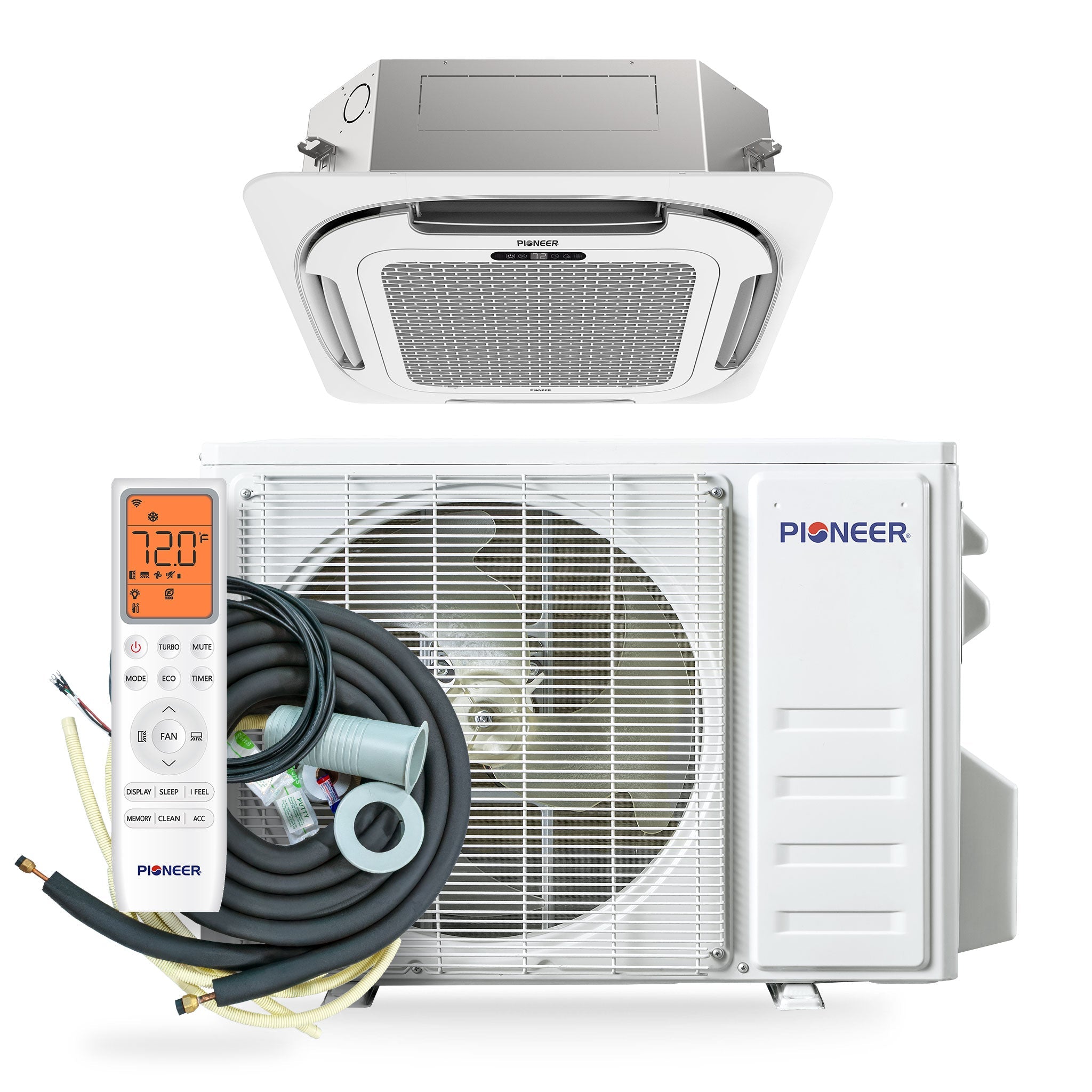

• System Kit
  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 12,000 BTU/h
  • Cooling Capacity Range: 2,000~13,600 BTU/h
  • Cooling SEER2: 22.0 BTU/W.h
  • Cooling EER2: 11.7 BTU/W.h
  • Heating Rated Capacity: 12,500 BTU/h
  • Heating Capacity Range: 3,100~12,700 BTU/h
  • Heating HSPF2 (Region IV): 9.5 / 8.5 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 3.6 / 1.9 W/W
  • Refrigerant Type: R454b
  • Suitable Area: 350–500 sq. ft.
  • AHRI Reference: 217048759

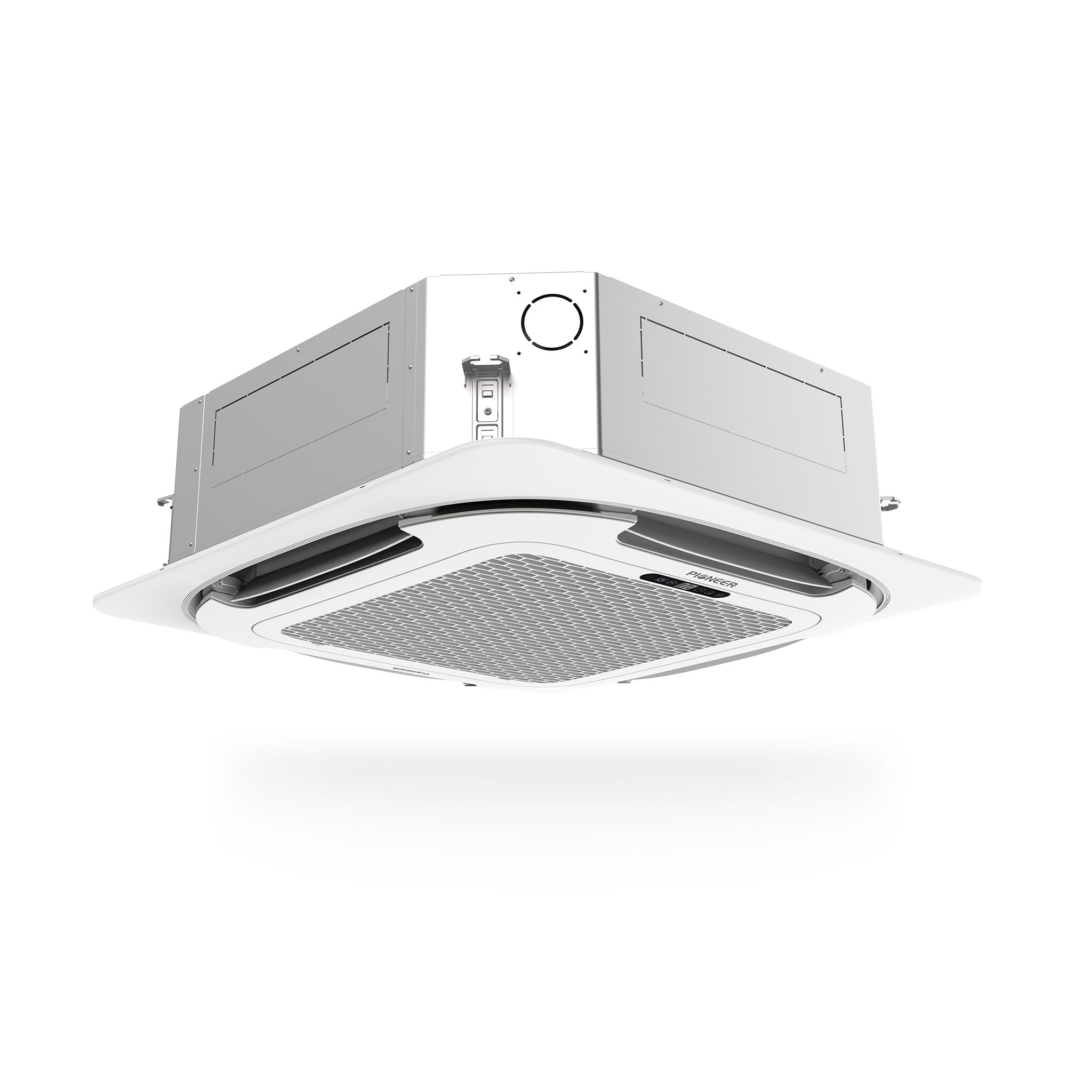

• Indoor Unit
  • Part Number: CT012GLSILCFHG
  • Air Flow (Turbo/Hi/Med/Lo/Mute): 500 / 470 / 411 / 323 / 205 CFM
  • Sound Level (Turbo/Hi/Med/Lo/Mute): 46 / 44 / 36 / 32 / 30 dB(A)
  • Product Dimensions (W x D x H): 22½" x 22½" x 9⅝"
  • Carton Dimensions (W x D x H): 28¼" x 25⅞" x 11⅞"
  • Net / Gross Weight: 32.0 / 38.6 lbs

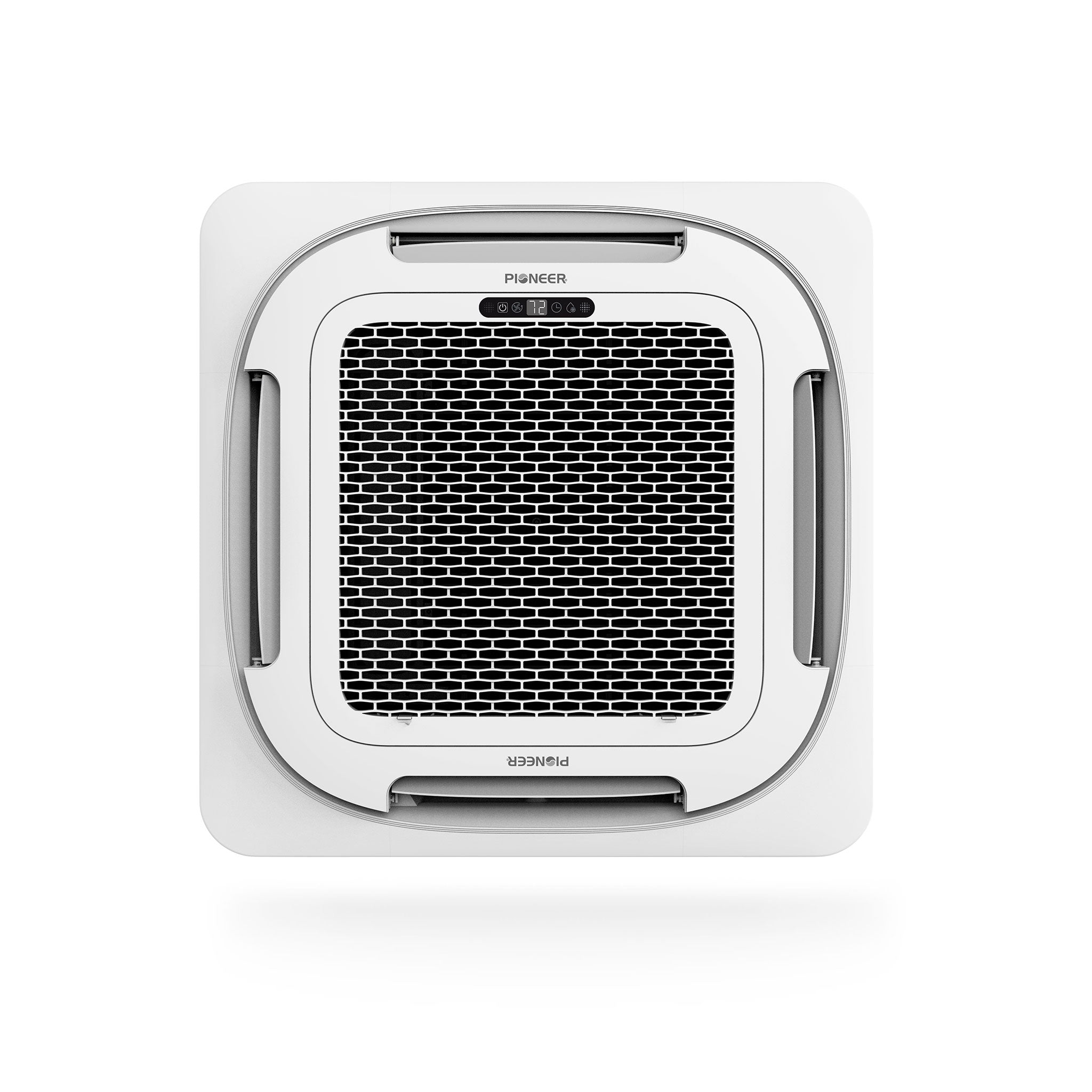

• Decorative Panel
  • Part Number: CT0918DPNL
  • Product Dimensions (W x D x H): 25⅝" x 25⅝" x 2⅜"
  • Carton Dimensions (W x D x H): 28⅞" x 28⅞" x 4⅜"
  • Net / Gross Weight: 6.0 / 9.5 lbs

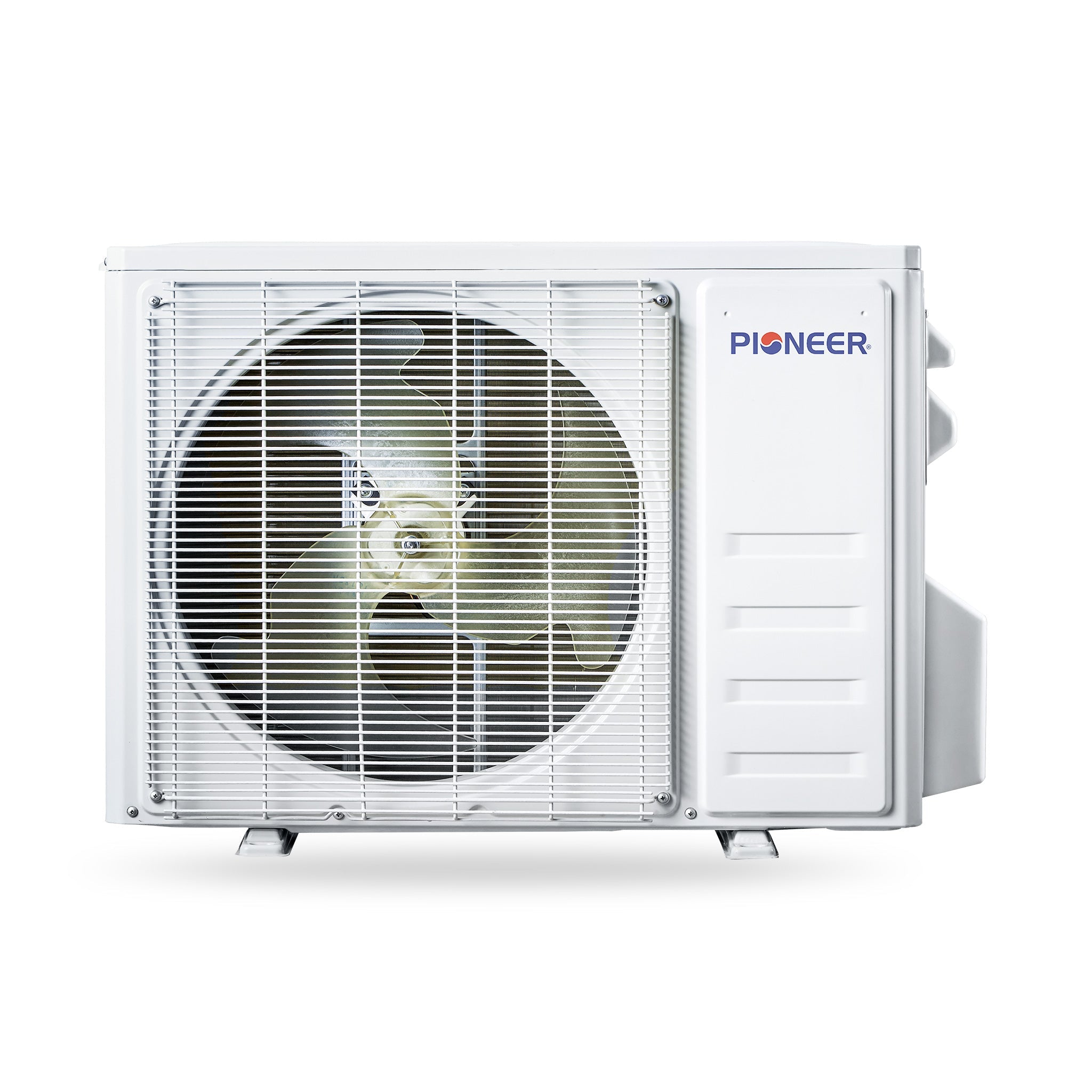

• Outdoor Unit
  • Part Number: YN012GLSI24RPG
  • Breaker Needed: 15A (double-pole)
  • Sound Level: 52 dB(A)
  • Net Dimensions (W x D x H): 31⅞" x 12" x 21⅝"
  • Carton Dimensions (W x D x H): 32⅞" x 13" x 22⅝"
  • Net / Gross Weight: 58.4 / 65.0 lbs
• Certifications:
  • AHRI Certificate
  • Energy Guide

Dimension Chart
