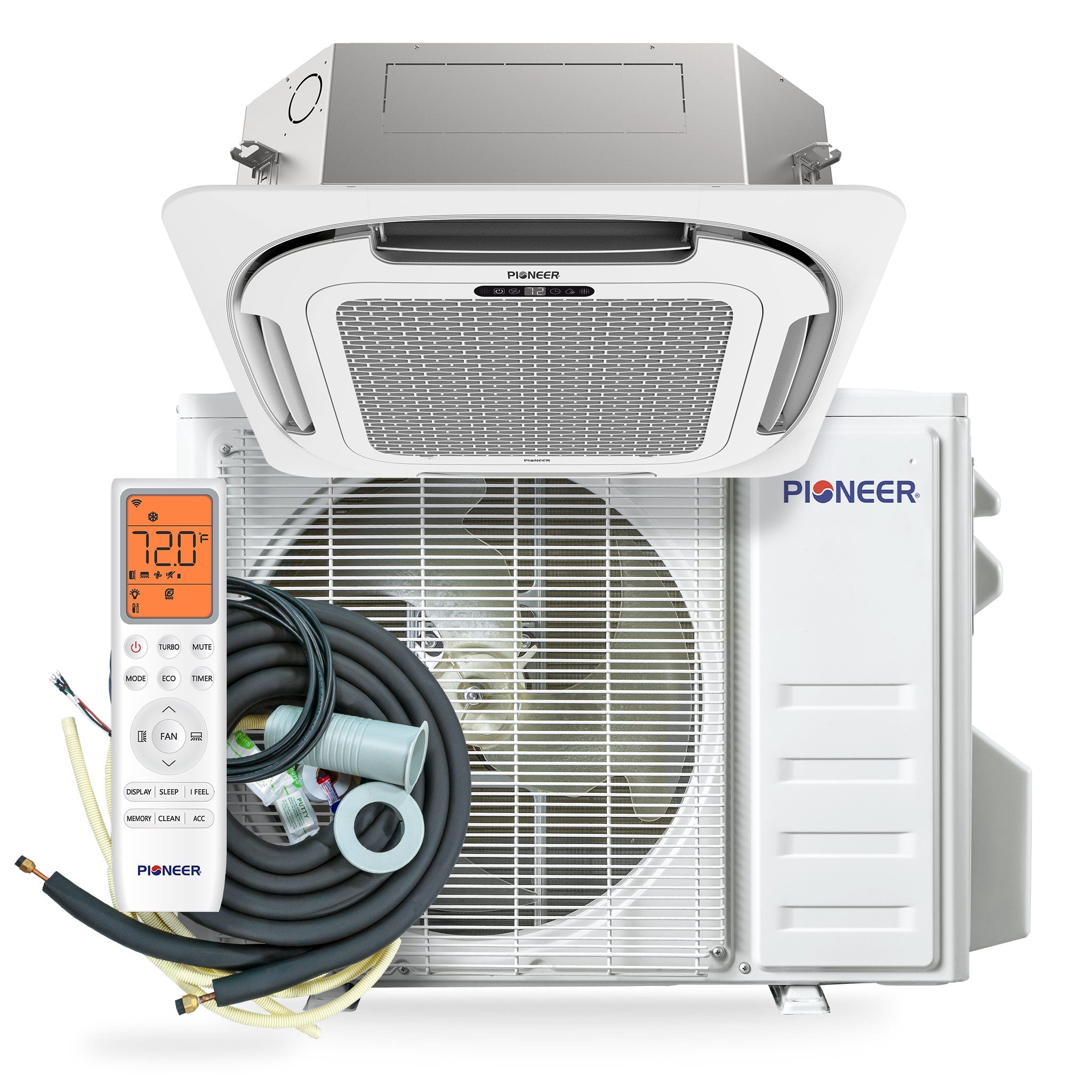

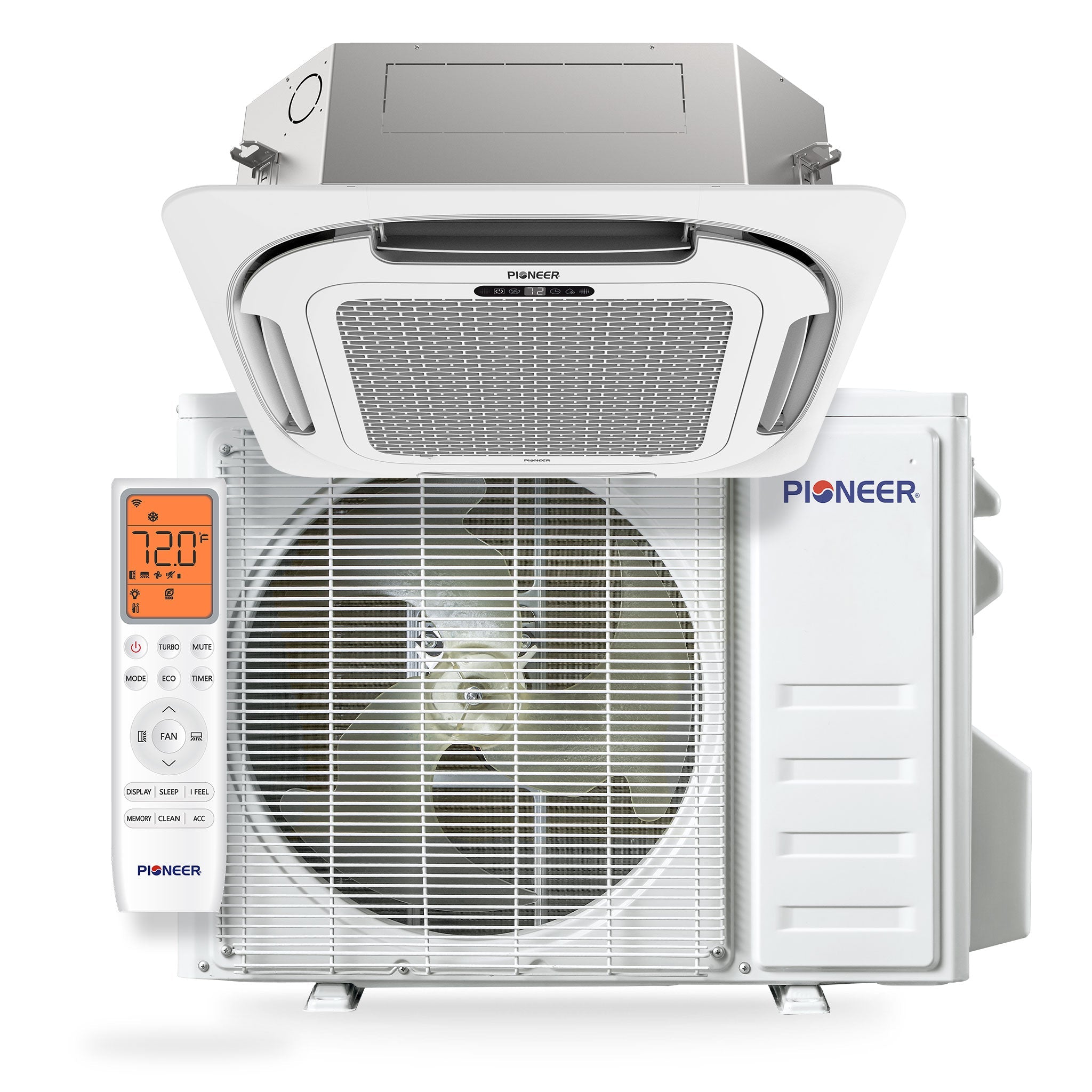

Quantum Ultra Ceiling Cassette Split Heat Pump System

The Quantum Ultra Ceiling Cassette Split Heat Pump System delivers high-efficiency performance and flexible comfort control for residential or commercial spaces. Designed for ceiling-mounted installation, it offers powerful cooling and heating, whisper-quiet operation, and energy-saving inverter technology using environmentally friendly R454b refrigerant.

Summary

• High Efficiency: Quantum Ultra Ceiling Cassette Split Heat Pump System
• Cooling Capacity: 16,000 BTU/H with 20.5 SEER2 / 11.7 EER2 efficiency
• Heating Capacity: 18,000 BTU/H with 8.5 HSPF2 / 3.0 COP2 efficiency
• Voltage: 208/230V, 60Hz, 1Ph
• Mount Type: Ceiling Cassette Mounted Ductless Air Conditioning & Heating System
• Compressor: Variable-Speed DC Inverter Driven Performance
• Refrigerant: Factory-Precharged with Environmentally Friendly R454b Refrigerant
• Operating Range: Ultra Low Ambient – as low as -13°F (Heating) and up to 131°F (Cooling)

Features

• Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
• Dual-Drainage Ports
• Washable, Reusable Air Filters
• Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)

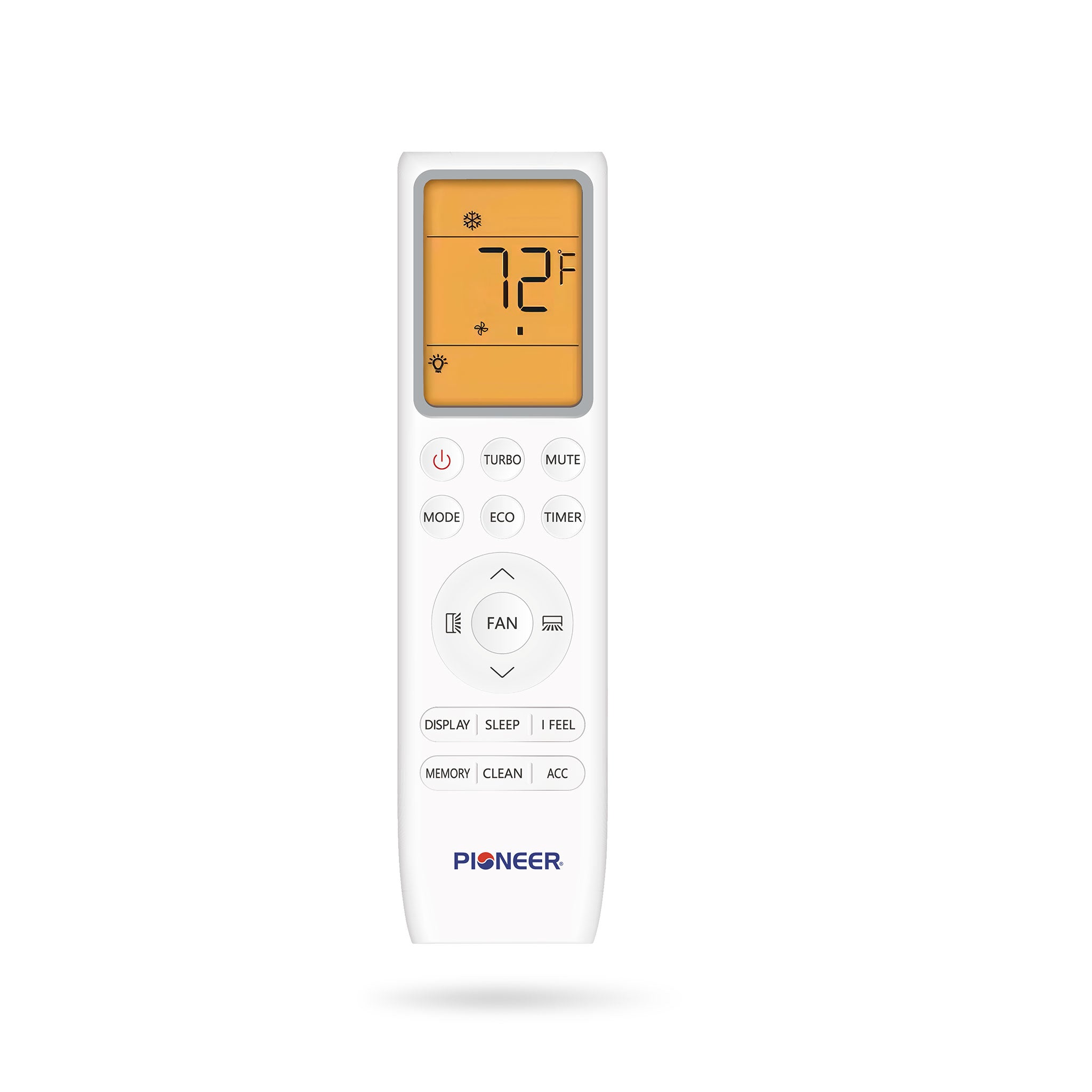

• Functional Remote Control Featuring:
  • ECO and SLEEP Modes for Energy Conservation
  • Timer On/Off Control
  • TURBO Mode for High-Demand Performance
  • Self-Clean Cycle
  • MEMORY Function to Recall Favorite Settings
  • IFEEL Sensor to Detect and Adjust to Local Temperature

Technical Information & Performance

• AHRI Certificate
• Energy Guide

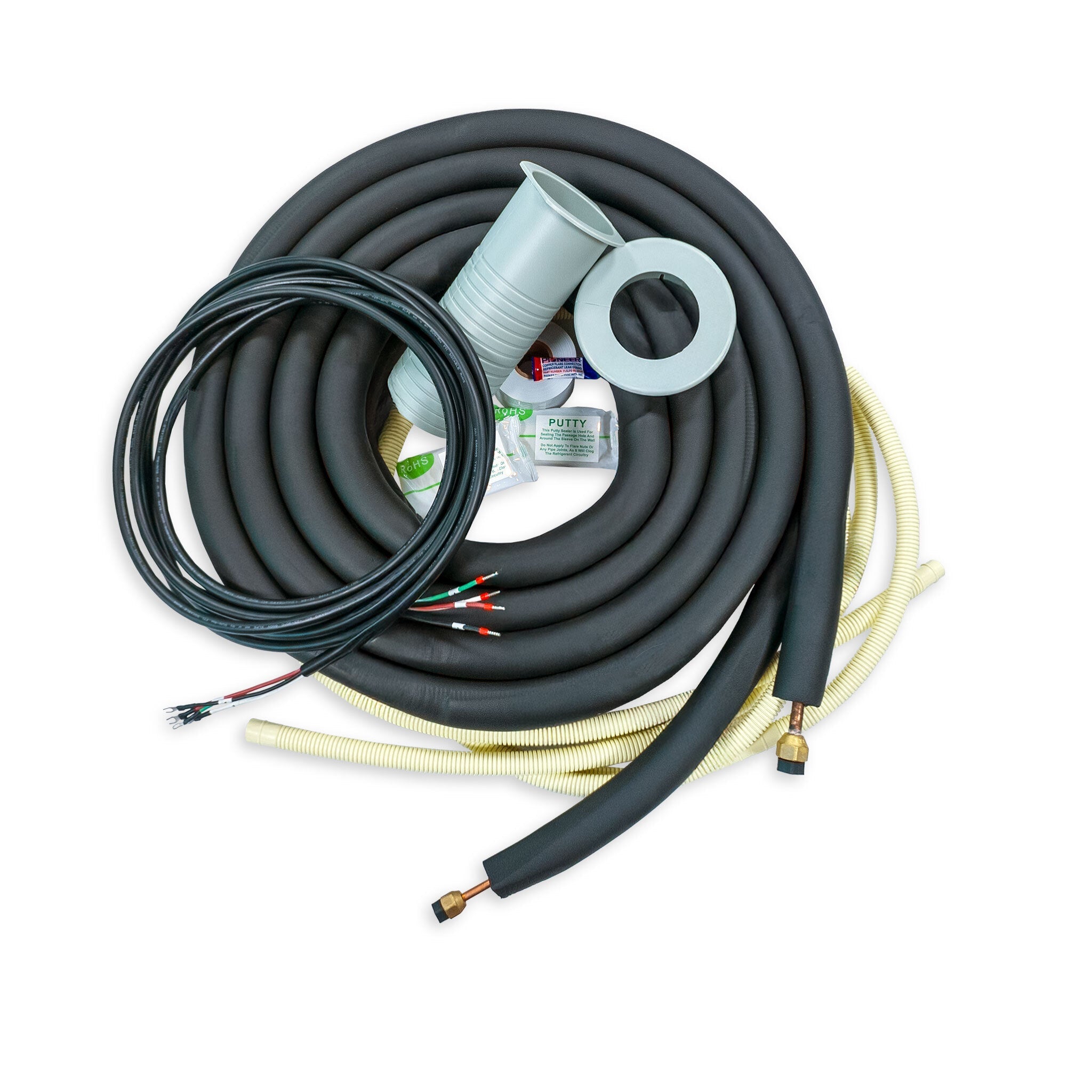

• System Kit
  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 16,000 BTU/h
  • Cooling Capacity Range: 6,000~19,400 BTU/h
  • Cooling SEER2: 20.5 BTU/W.h
  • Cooling EER2: 11.7 BTU/W.h
  • Heating Rated Capacity: 18,000 BTU/h
  • Heating Capacity Range: 4,000~21,400 BTU/h
  • Heating HSPF2 (Region IV): 8.5 / 7.4 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 3.0 / 1.8 W/W
  • Refrigerant Type: R454b
  • Suitable Area: 500–750 sq. ft.
  • AHRI Reference: 217048760

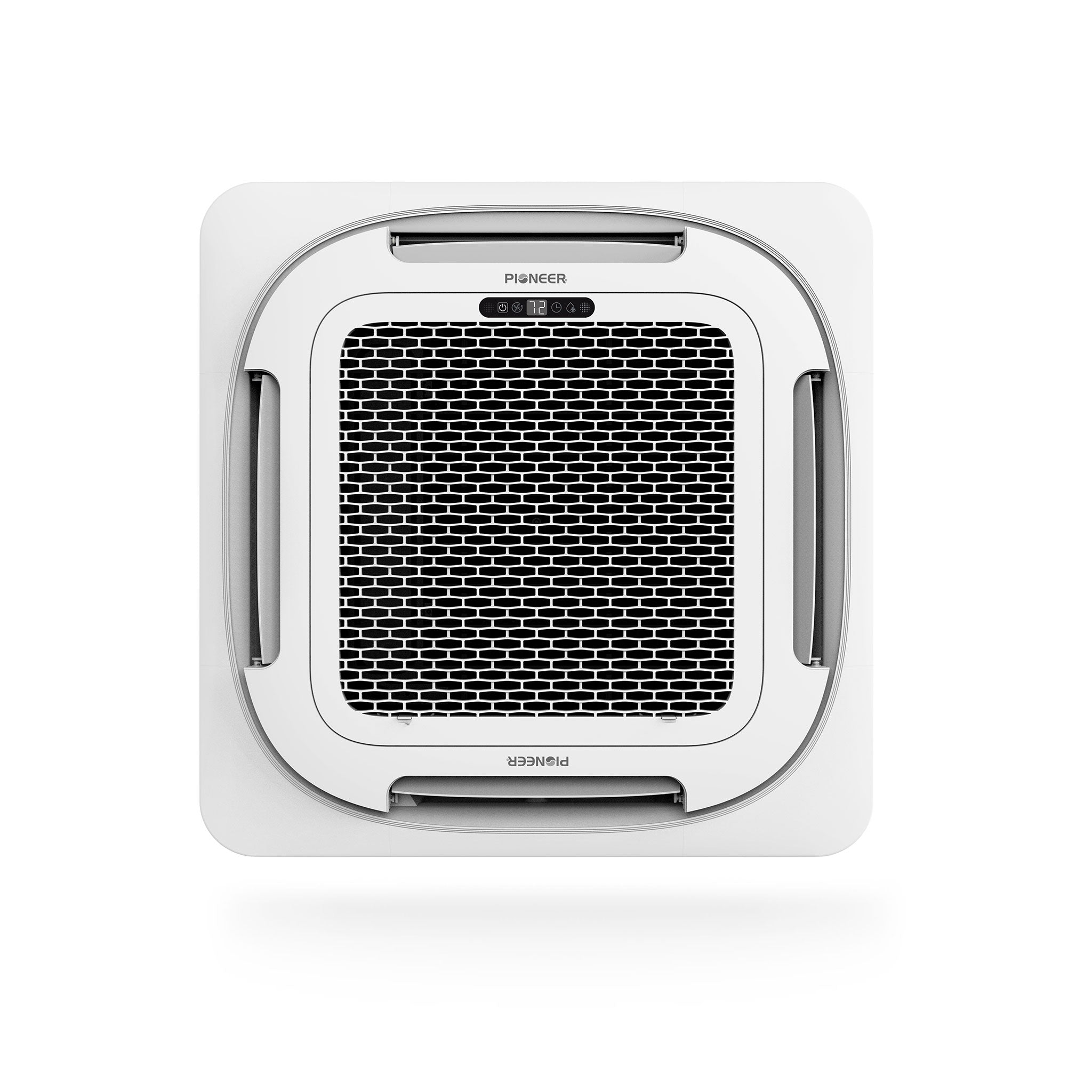

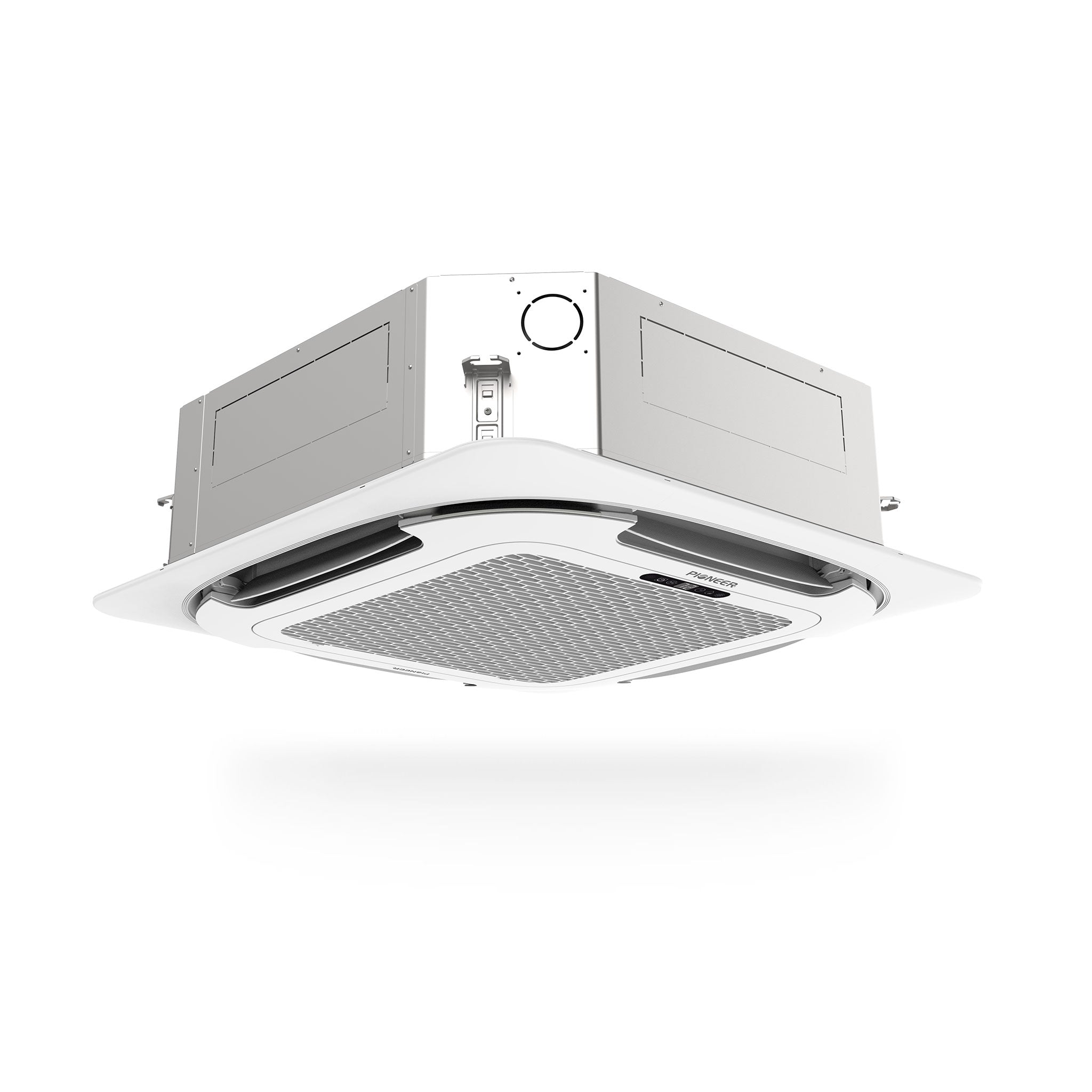

• Indoor Unit
  • Part Number: CT018GLSILCFHG
  • Air Flow (Turbo/Hi/Med/Lo/Mute): 735/676/529/423/394 CFM
  • Sound Level (Turbo/Hi/Med/Lo/Mute): 50/47/43/38/34 dB(A)
  • Product Dimensions (W×D×H): 22½" × 22½" × 9⅝"
  • Carton Dimensions (W×D×H): 28¼" × 25⅞" × 11⅞"
  • Net / Gross Weight: 32.0 / 38.6 lbs
• Decorative Panel
  • Part Number: CT0918DPNL
  • Product Dimensions (W×D×H): 25⅝" × 25⅝" × 2⅜"
  • Carton Dimensions (W×D×H): 28⅞" × 28⅞" × 4⅜"
  • Net / Gross Weight: 6.0 / 9.5 lbs

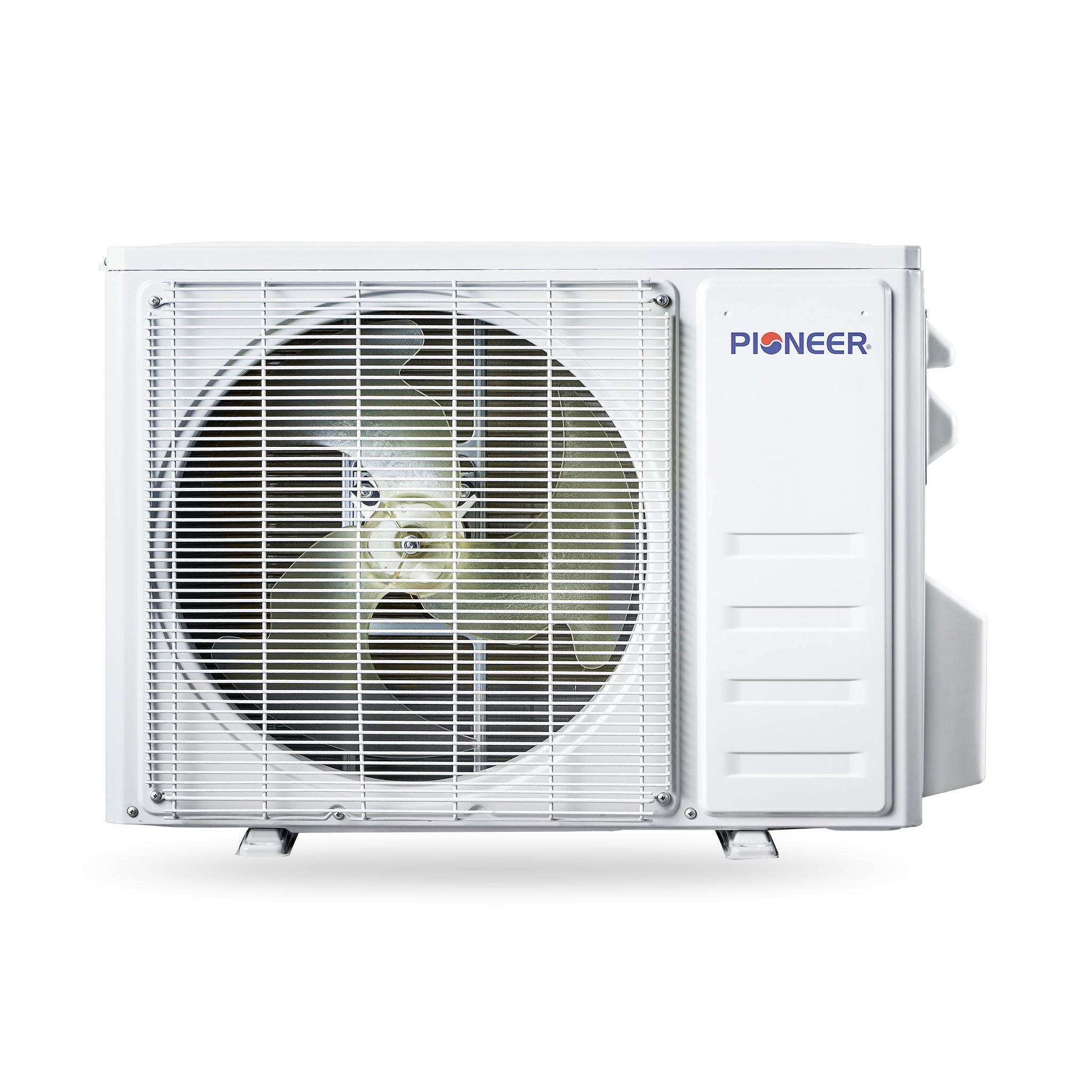

• Outdoor Unit
  • Part Number: YN018GLSI24RPG
  • Breaker Needed: 20A (Double-Pole)
  • Sound Level: 53 dB(A)
  • Net Dimensions (W×D×H): 36½" × 15" × 27½"
  • Carton Dimensions (W×D×H): 37⅜" × 16½" × 28⅞"
  • Net / Gross Weight: 90.4 / 97.0 lbs

Dimension Chart
