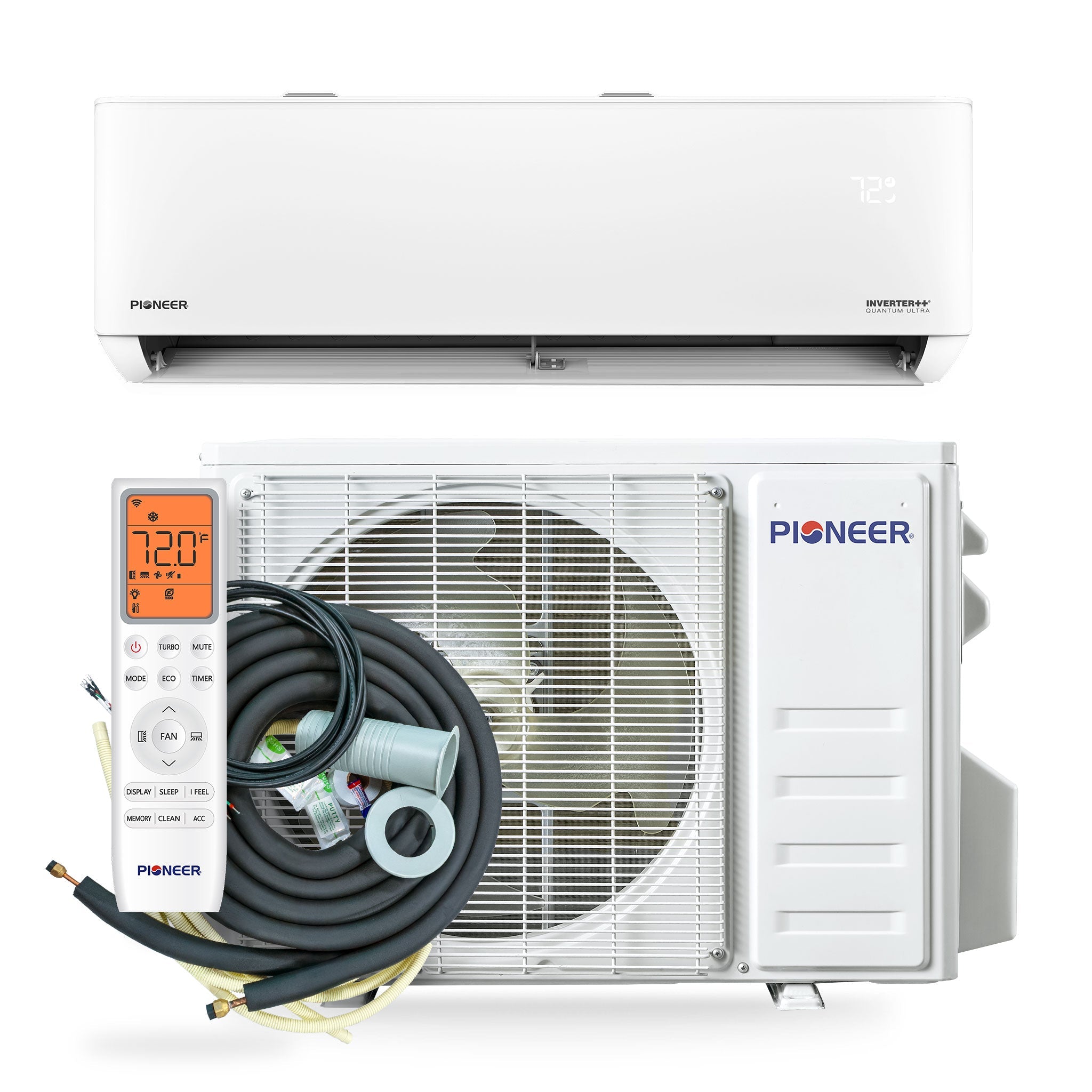

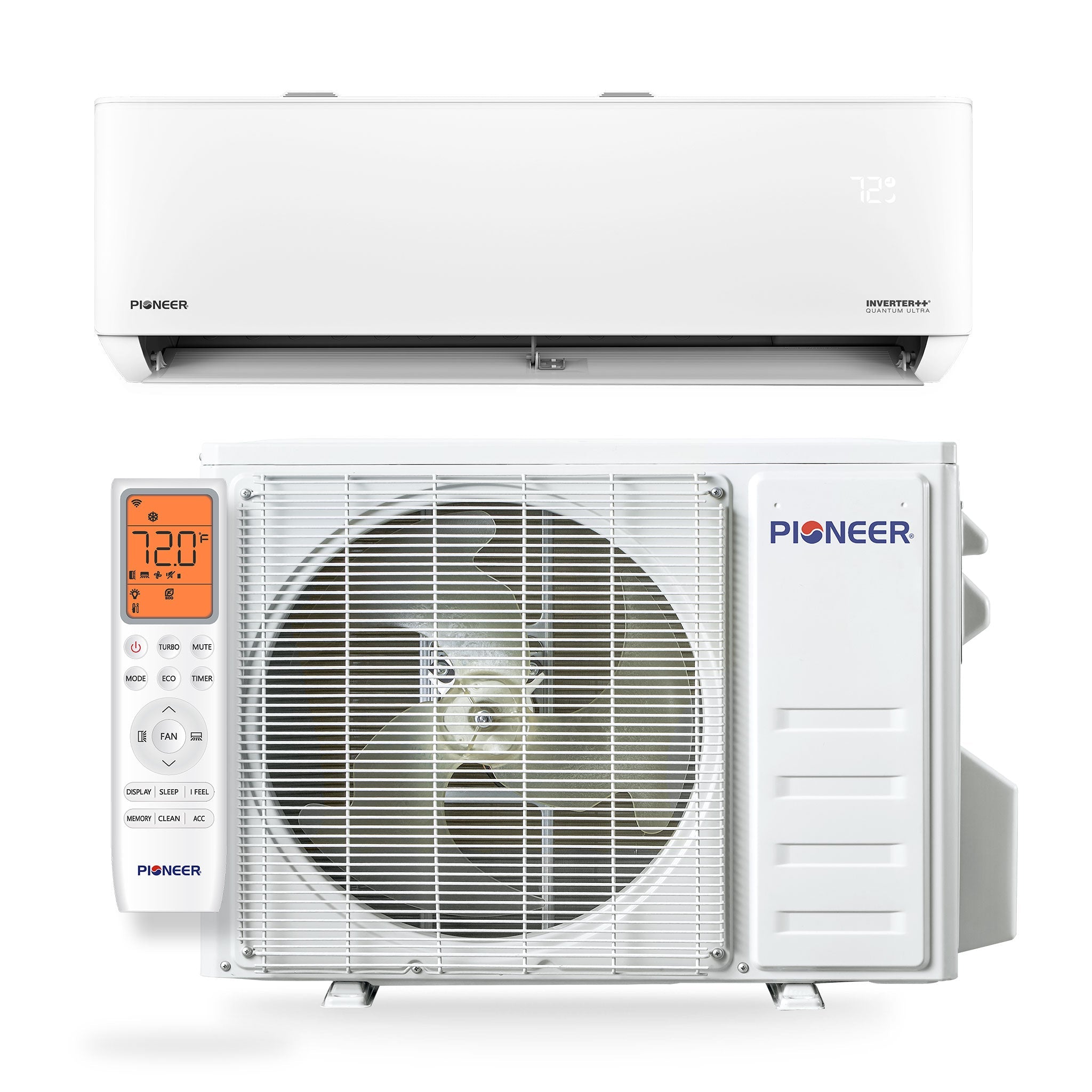

Quantum Ultra 18,000 BTU Ductless Mini Split Heat Pump System

The Quantum Ultra 18,000 BTU Ductless Mini Split Heat Pump System delivers powerful year-round comfort with cutting-edge inverter technology, ultra-high efficiency, and whisper-quiet operation. Designed for wall-mounted installation, it provides heating and cooling in one sleek unit while maintaining impressive energy savings and superior environmental performance.

Summary

• System Type: Ultra High Efficiency Quantum Ultra Ductless Mini Split Heat Pump System
• Cooling Capacity: 18,000 BTU/H with 23 SEER2 / 12.5 EER2 efficiency
• Heating Capacity: 19,000 BTU/H with 9.5 HSPF2 / 3.81 COP2 efficiency
• Voltage: 208/230V, 60Hz, 1Ph
• Mount Type: High Wall-Mounted Ductless Air Conditioning & Heating System

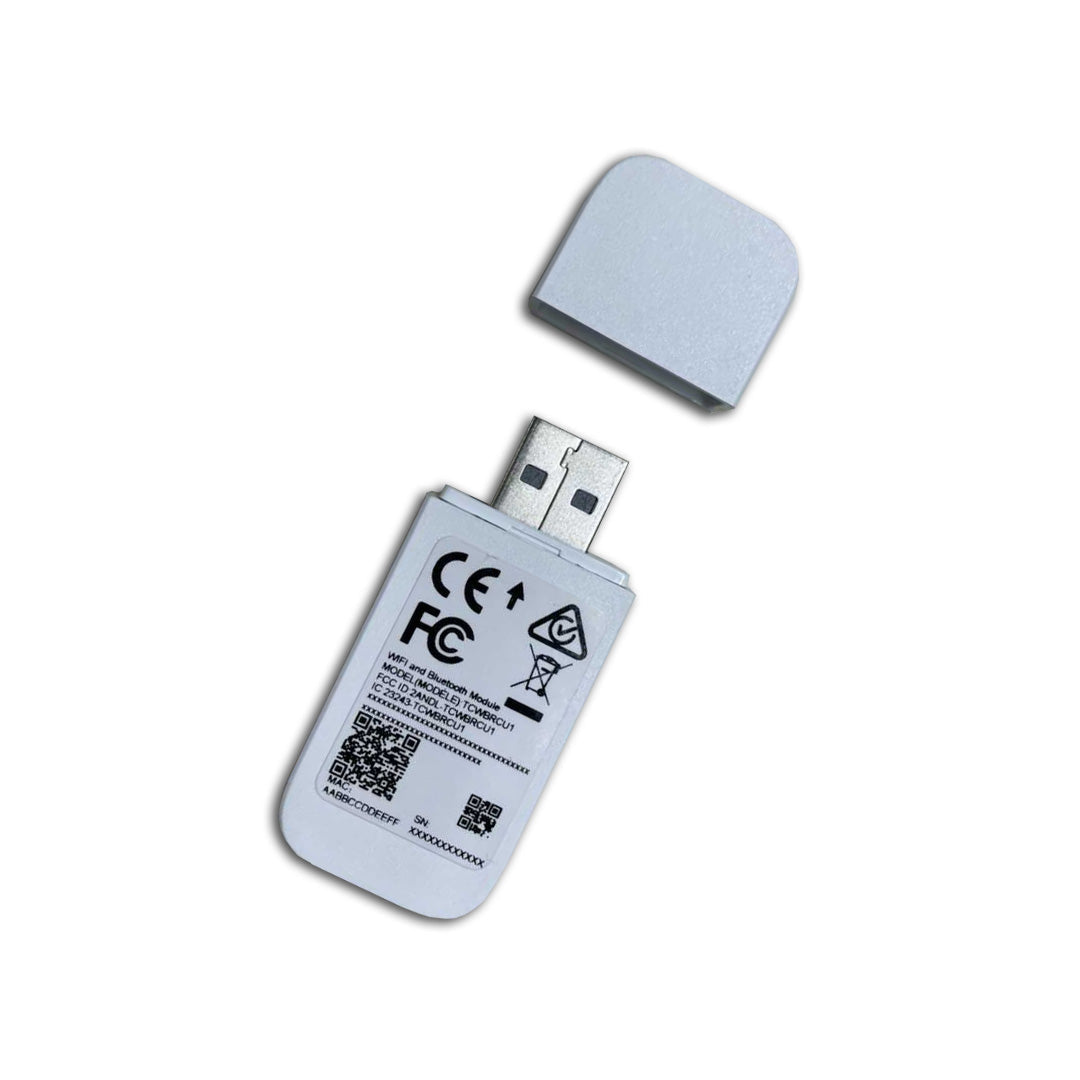

• Wi-Fi Enabled: Controllable by smartphone via the free Pioneer Airlink App
• Inverter Technology: Variable-Speed DC Inverter Driven Performance
• Refrigerant: Factory-Precharged with Environmentally Friendly R454b
• Operating Range: Ultra Low Ambient Operation (as low as -13°F in heating / up to 131°F in cooling)

Features

• Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
• Dual-Drainage Ports for Flexible Installation
• Washable, Reusable Air Filters
• Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)

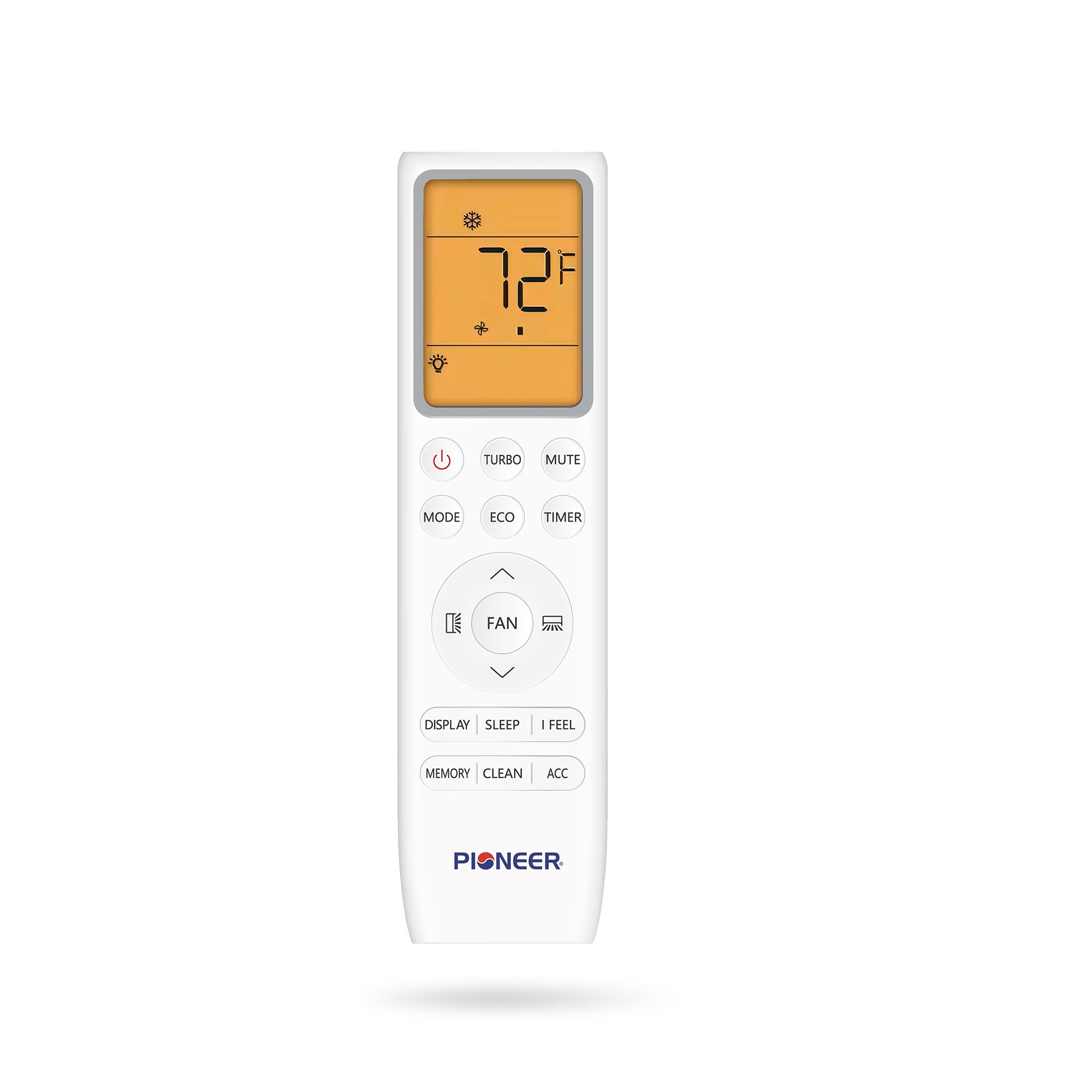

• Functional Remote Control Featuring:
  • ECO and SLEEP Modes for Energy Conservation
  • Timer On/Off Control
  • TURBO Mode for High-Demand Operation
  • Self-Clean Cycle
  • MEMORY Function to Recall Favorite Settings
  • IFEEL Function to Detect and Adjust to Local Temperature

Technical Information & Performance

• AHRI Certificate: View Document
• Energy Guide: View Document

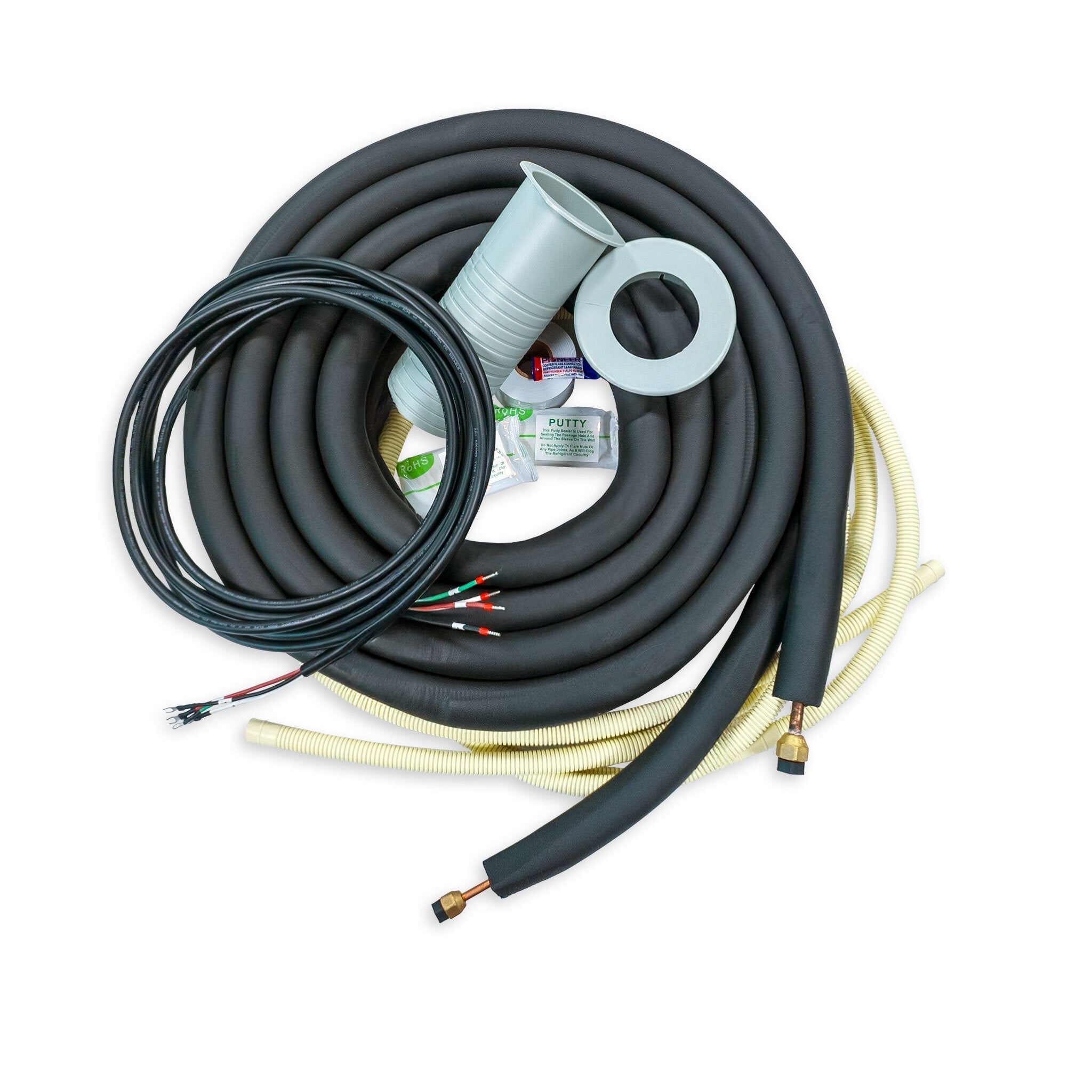

• System Kit
  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 18,000 BTU/h
  • Cooling Capacity Range: 4,000~19,000 BTU/h
  • Cooling SEER2: 23.0 BTU/W.h
  • Cooling EER2: 12.5 BTU/W.h
  • Heating Rated Capacity: 19,000 BTU/h
  • Heating Capacity Range: 4,000~21,000 BTU/h
  • Heating HSPF2 (Region IV): 9.5 / 8.2 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 3.81 / 1.8 W/W
  • Refrigerant Type: R454b
  • Recommended Room Size: 500~750 Sq.Ft
  • Minimum Room Size: 51 Sq.Ft
  • Minimum Installation Height: 6 ft
  • Piping Diameter: 1/4" x 1/2"
  • AHRI Reference: 217048752

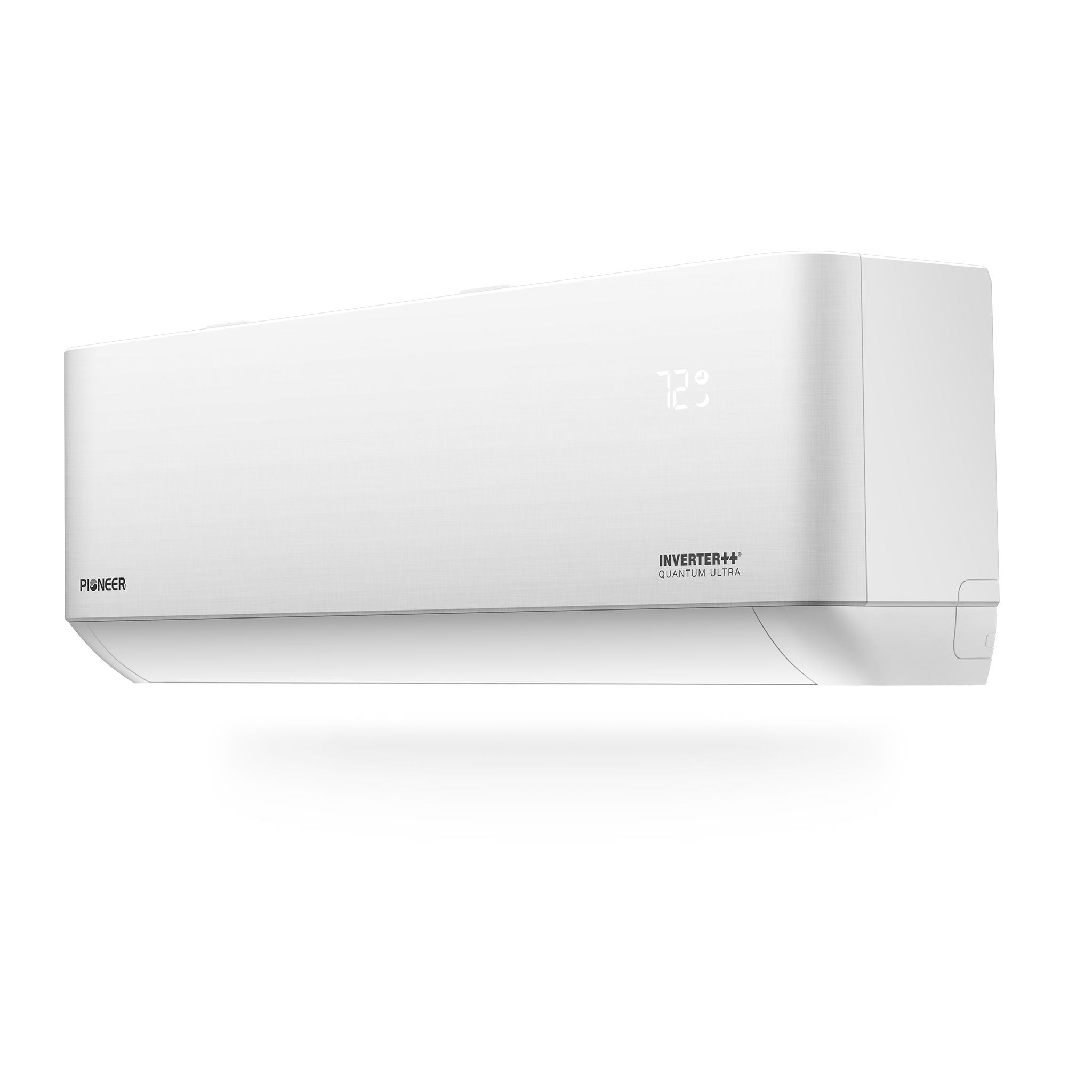

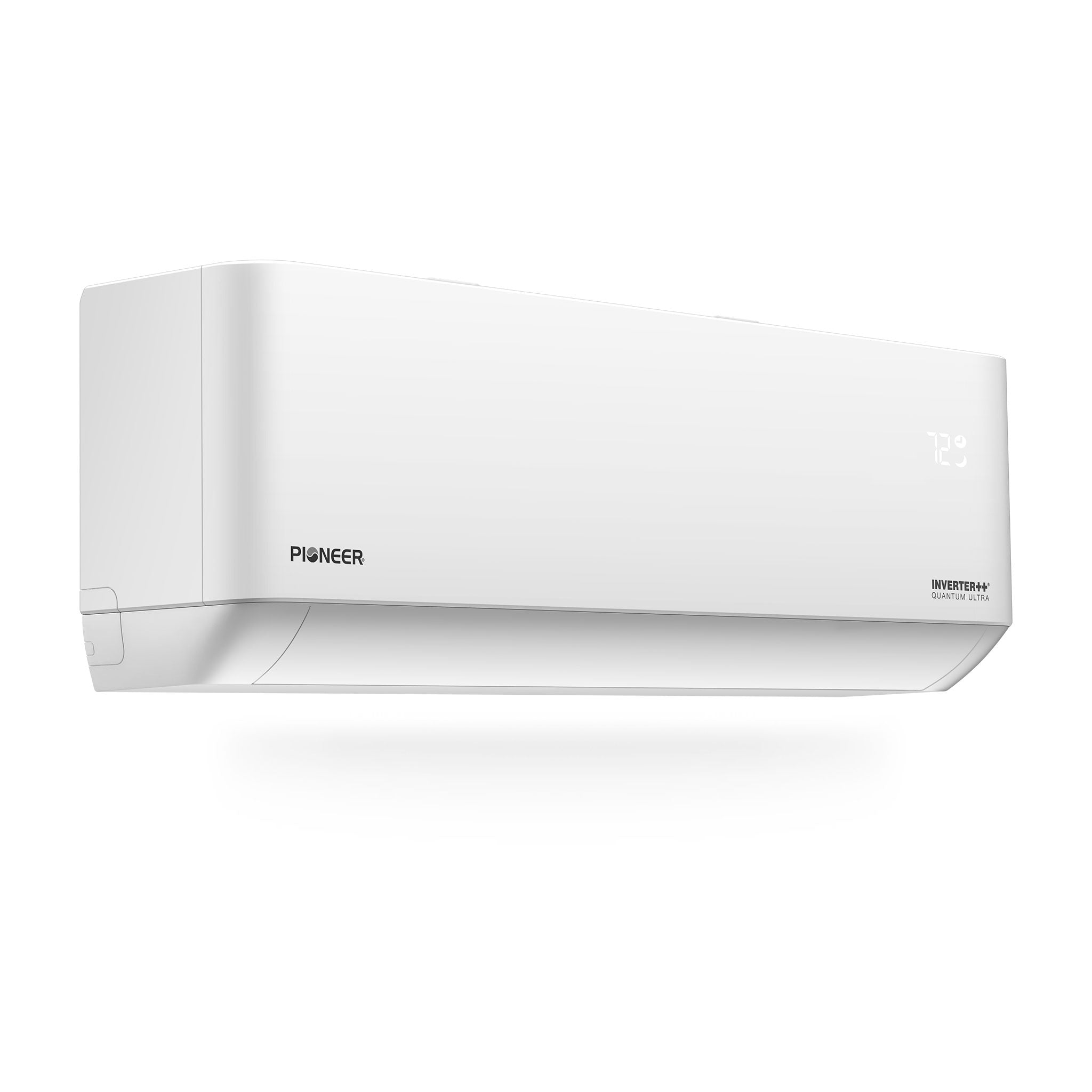

• Indoor Unit
  • Part Number: WT018GLSI24HLG
  • Air Flow (Turbo/Hi/Med/Lo/Mute): 735 / 676 / 529 / 423 / 394 CFM
  • Sound Level (Turbo/Hi/Med/Lo/Mute): 50 / 47 / 43 / 38 / 34 dB(A)
  • Product Dimensions (W x D x H): 43⅛" x 8¾" x 13"
  • Carton Dimensions (W x D x H): 45⅞" x 11⅝" x 16"
  • Net / Gross Weight: 30.9 / 35.3 lbs

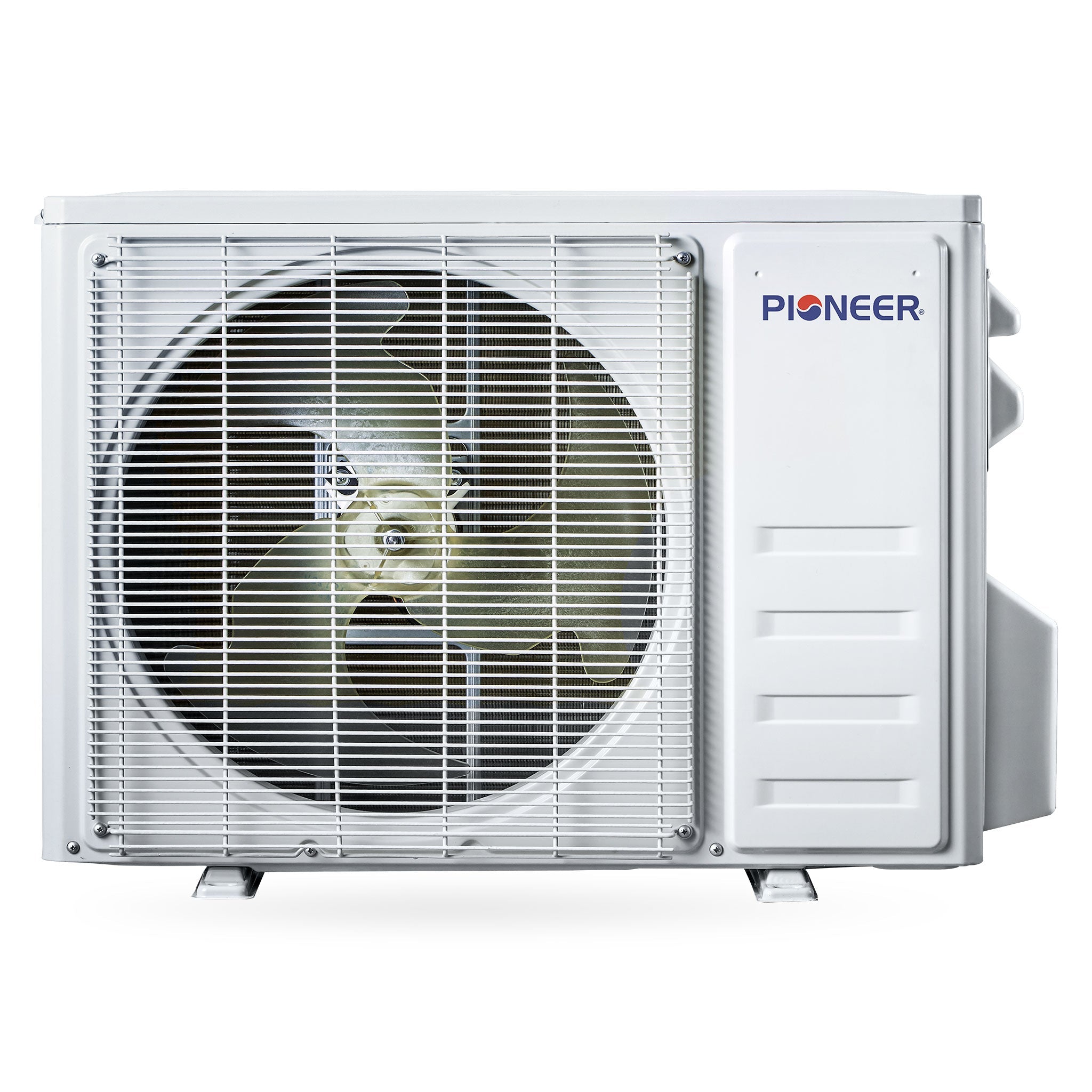

• Outdoor Unit
  • Part Number: YN018GLSI24RPG
  • Breaker Needed: 20A (Double-Pole)
  • Sound Level: 53 dB(A)
  • Net Dimensions (W x D x H): 36½" x 15" x 27½"
  • Carton Dimensions (W x D x H): 37⅜" x 16¾" x 28¾"
  • Net / Gross Weight: 90.4 / 99.2 lbs

Dimension Chart
