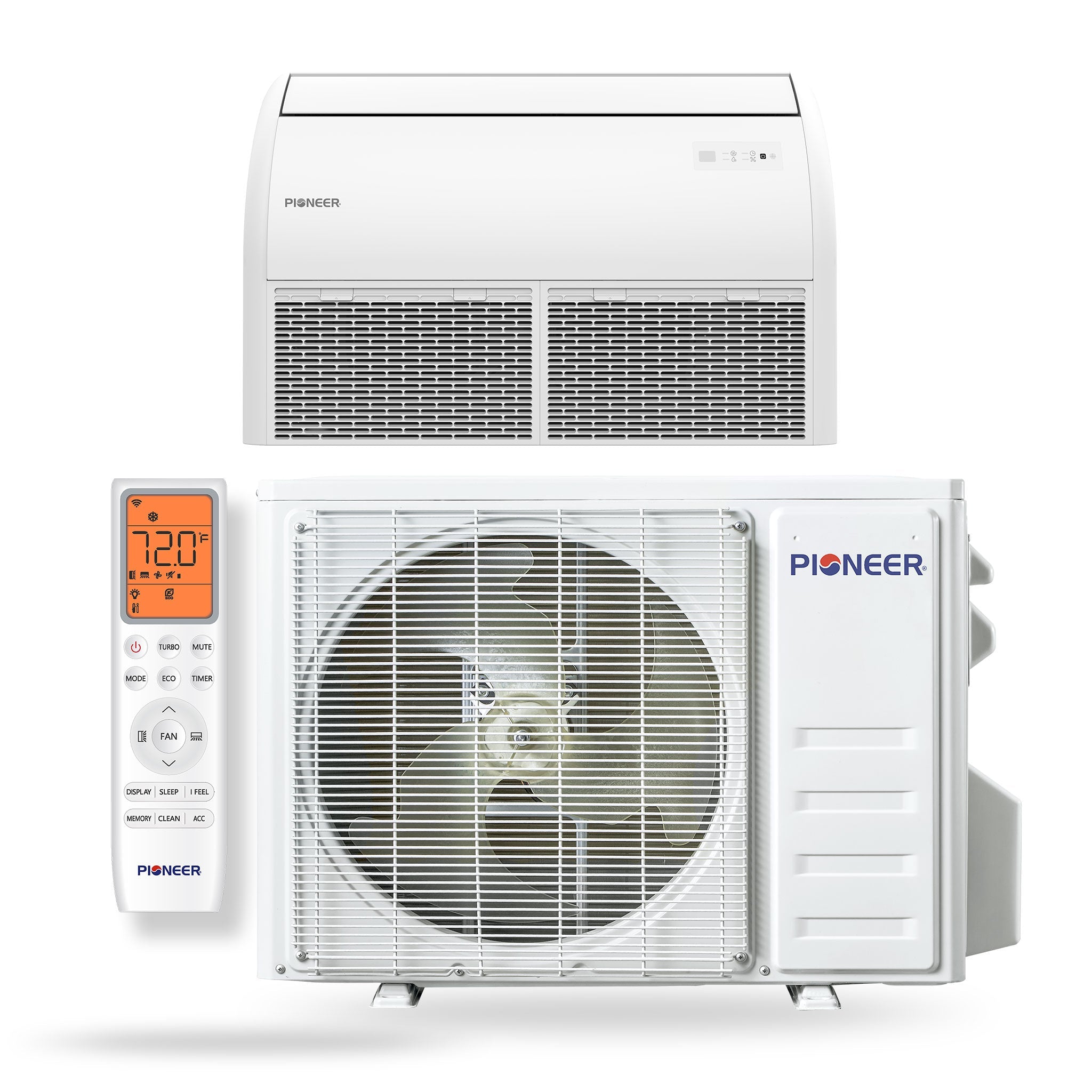

Quantum Ultra Floor/Ceiling/Low-Wall Ductless Split Heat Pump System

The Quantum Ultra Floor/Ceiling/Low-Wall Ductless Split Heat Pump System combines flexibility and performance in one high-efficiency design. Whether mounted on the floor, ceiling, or low-wall, this system provides precise climate control with inverter-driven technology and eco-friendly R454b refrigerant. Built for reliable year-round operation, it performs efficiently in extreme temperatures—from -13°F in heating to 131°F in cooling—making it ideal for both residential and light commercial applications.

Specifications

• Cooling Capacity: 22,200 BTU/H (20.0 SEER2 / 11.7 EER2)

• Heating Capacity: 24,400 BTU/H (9.5 HSPF2 / 3.0 COP2)

• Voltage: 208/230V, 60Hz, 1Ph

• Mount Type: Floor/Ceiling/Low-Wall Mounted Ductless Air Conditioning & Heating System

• Compressor Type: Variable-Speed DC Inverter

• Refrigerant: Factory-Precharged with R454b

• Operating Range: -13°F (Heating) to 131°F (Cooling)

• Suitable Area: 750–1,000 Sq.Ft

• AHRI Reference: 217048767

Features

• Comprehensive Climate Modes: Cooling, Heating, Dry, and Ventilation

• Dual-Drainage Ports: For easy installation flexibility

• Washable, Reusable Air Filters: Ensures long-term efficiency and easy maintenance

• Dual-Axis Airflow: Motorized up-down and left-right louvers for optimal air distribution

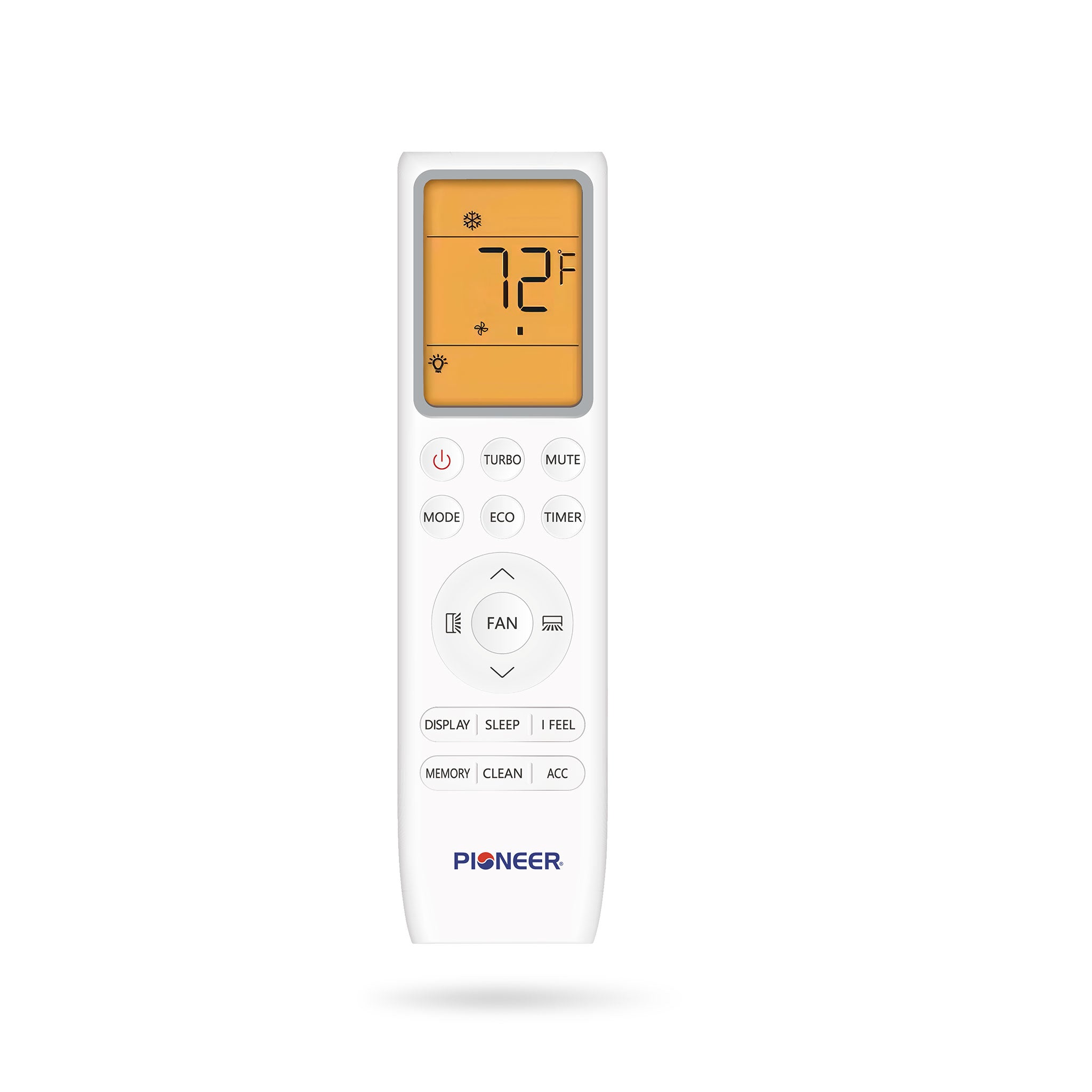

• Functional Remote Control Includes:

  • ECO and SLEEP Modes: Energy-conserving comfort

  • Timer On/Off Control: Schedule temperature changes automatically

  • TURBO Mode: Rapid cooling or heating during peak demand

  • Self-Clean Cycle: Reduces moisture and prevents mildew buildup

  • MEMORY Function: Recalls last-used settings automatically

  • IFEEL Sensor: Detects temperature at remote for precise comfort

Technical Information & Performance

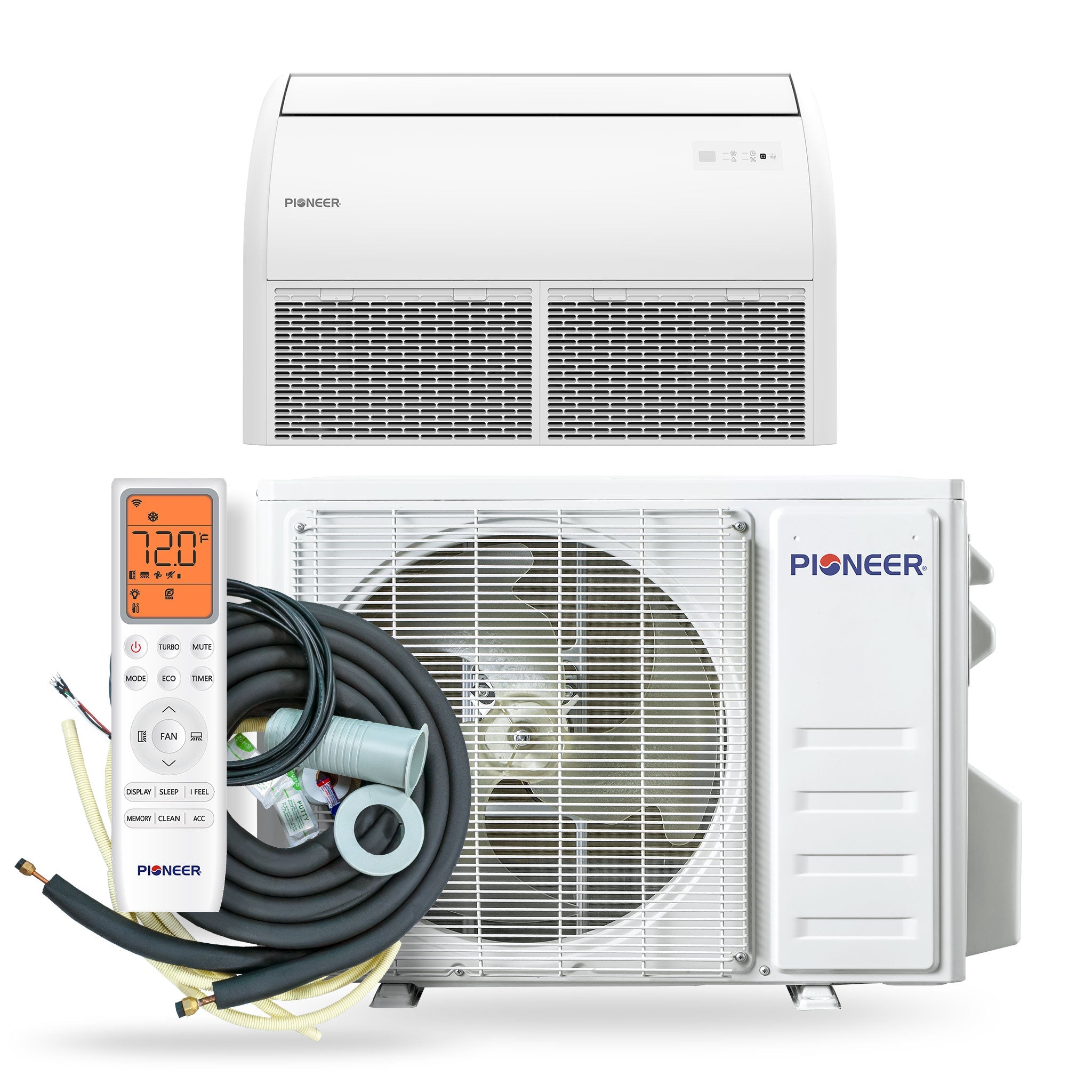

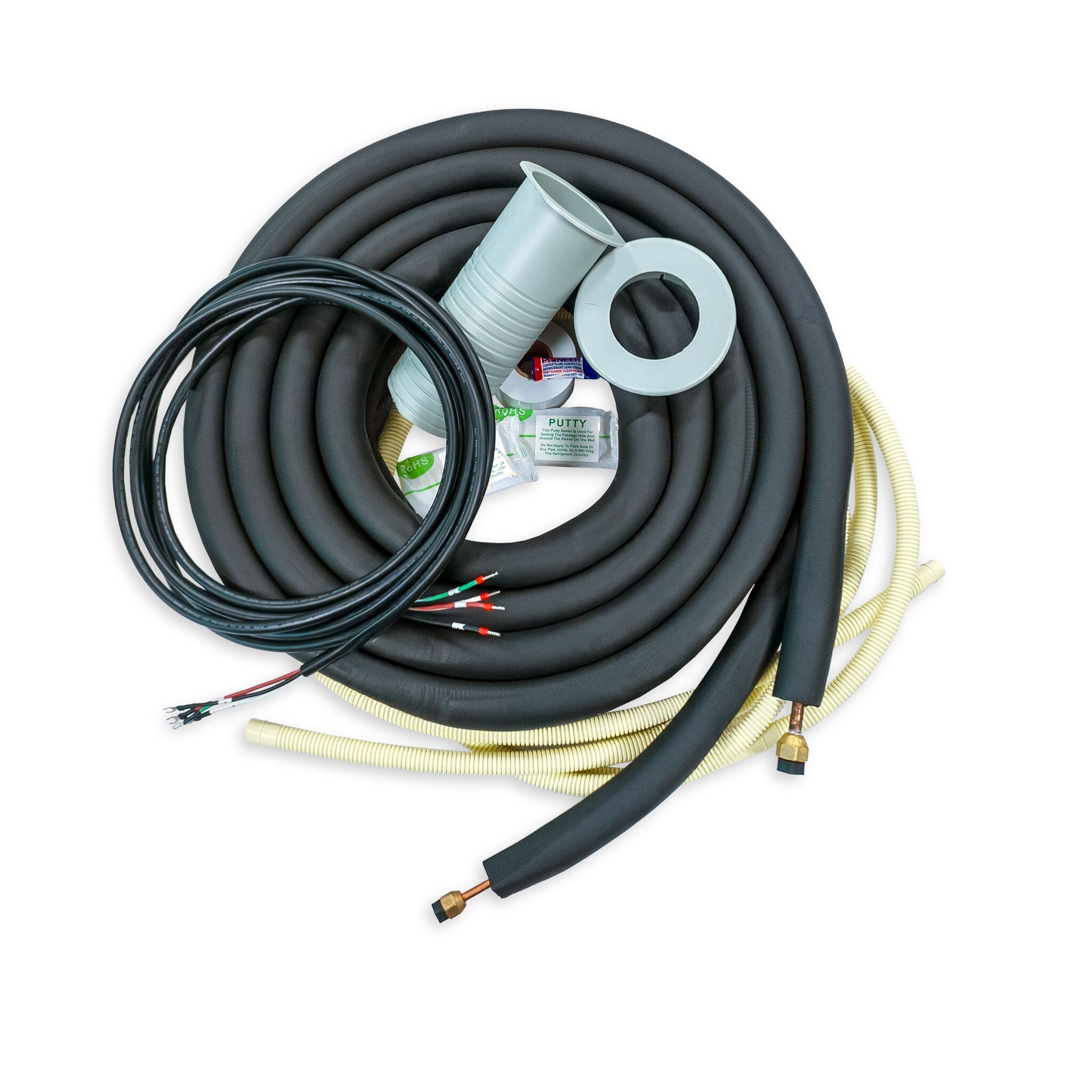

• System Kit

  • Power Supply: 208~230V, 60Hz, 1Ph

  • Cooling Rated Capacity: 22,200 BTU/h

  • Cooling Capacity Range: 6,010~24,610 BTU/h

  • Cooling SEER2: 20.0 BTU/W.h

  • Cooling EER2: 11.7 BTU/W.h

  • Heating Rated Capacity: 24,400 BTU/h

  • Heating Capacity Range: 4,750~28,640 BTU/h

  • Heating HSPF2 (Region IV): 9.5 / 8.5 BTU/W.h

  • Heating C.O.P.2 (47°F/5°F): 3.0 / 2.0 W/W

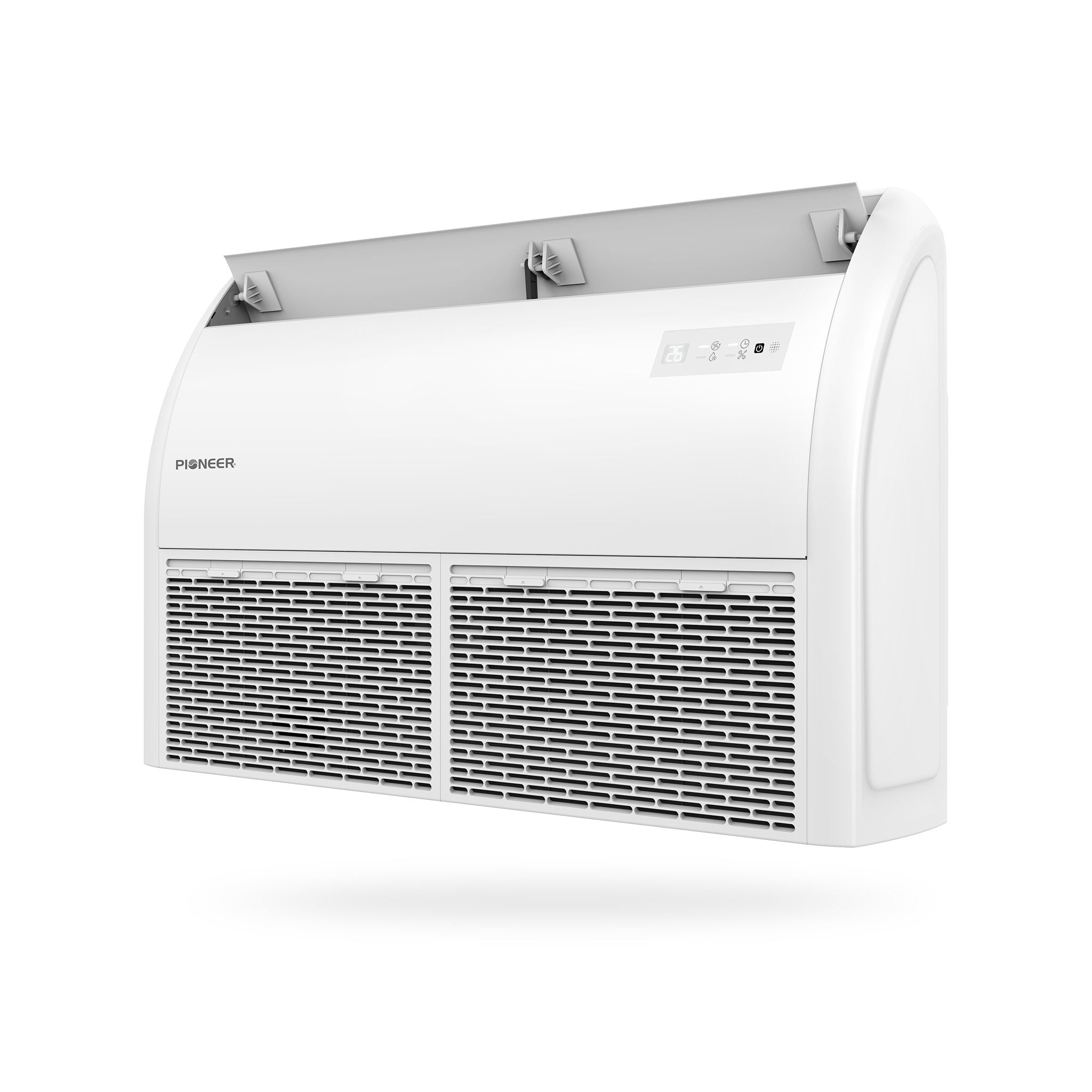

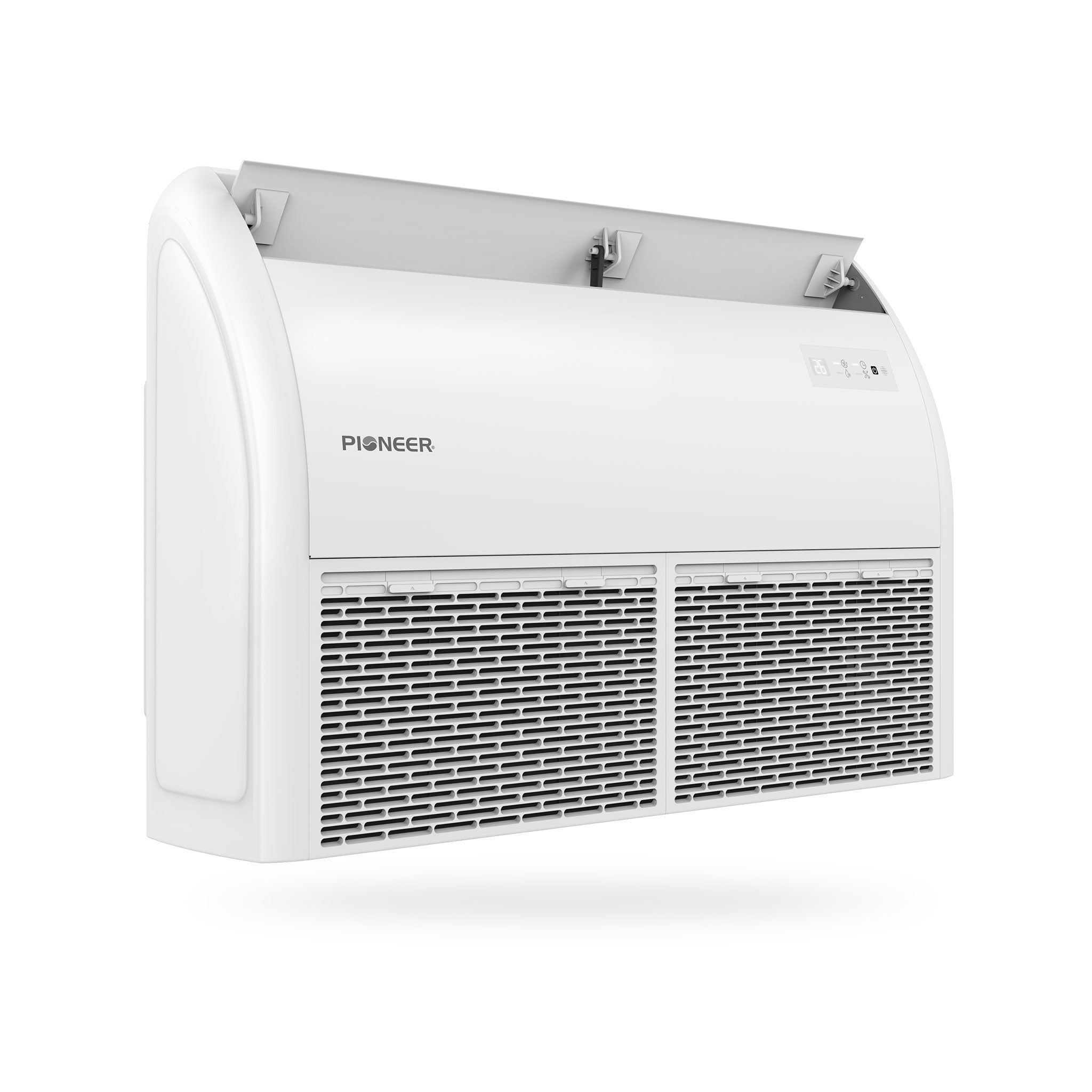

• Indoor Unit

  • Part Number: UT024GLSILSFHG

  • Air Flow (Turbo/Hi/Med/Lo/Mute): 647/588/517/470/412 CFM

  • Sound Level (Turbo/Hi/Med/Lo/Mute): 53/52/48/44/40 dB(A)

  • Product Dimensions (W×D×H): 41½″ × 26½″ × 9¼″

  • Carton Dimensions (W×D×H): 44½″ × 26½″ × 12″

  • Net / Gross Weight: 57.3 / 68.3 lbs.

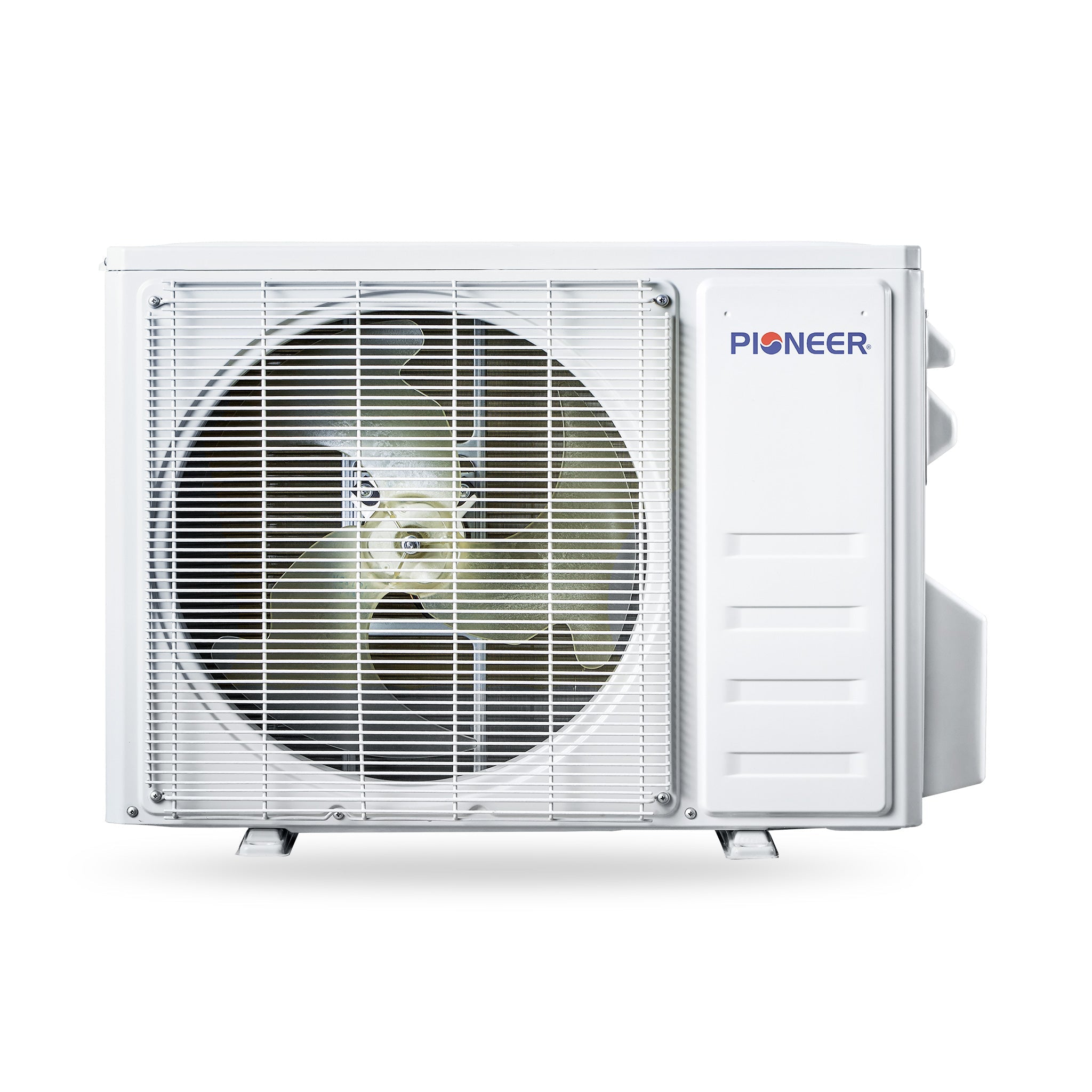

• Outdoor Unit

  • Part Number: YN024GLSI24RPG

  • Breaker Needed: 20A (Double-Pole)

  • Sound Level: 54 dB(A)

  • Net Dimensions (W×D×H): 38½″ × 16⅝″ × 31⅝″

  • Carton Dimensions (W×D×H): 40¼″ × 18⅞″ × 31⅞″

  • Net / Gross Weight: 104.7 / 119.0 lbs.

Documentation

• AHRI Certificate
• Energy Guide

Dimension Chart
