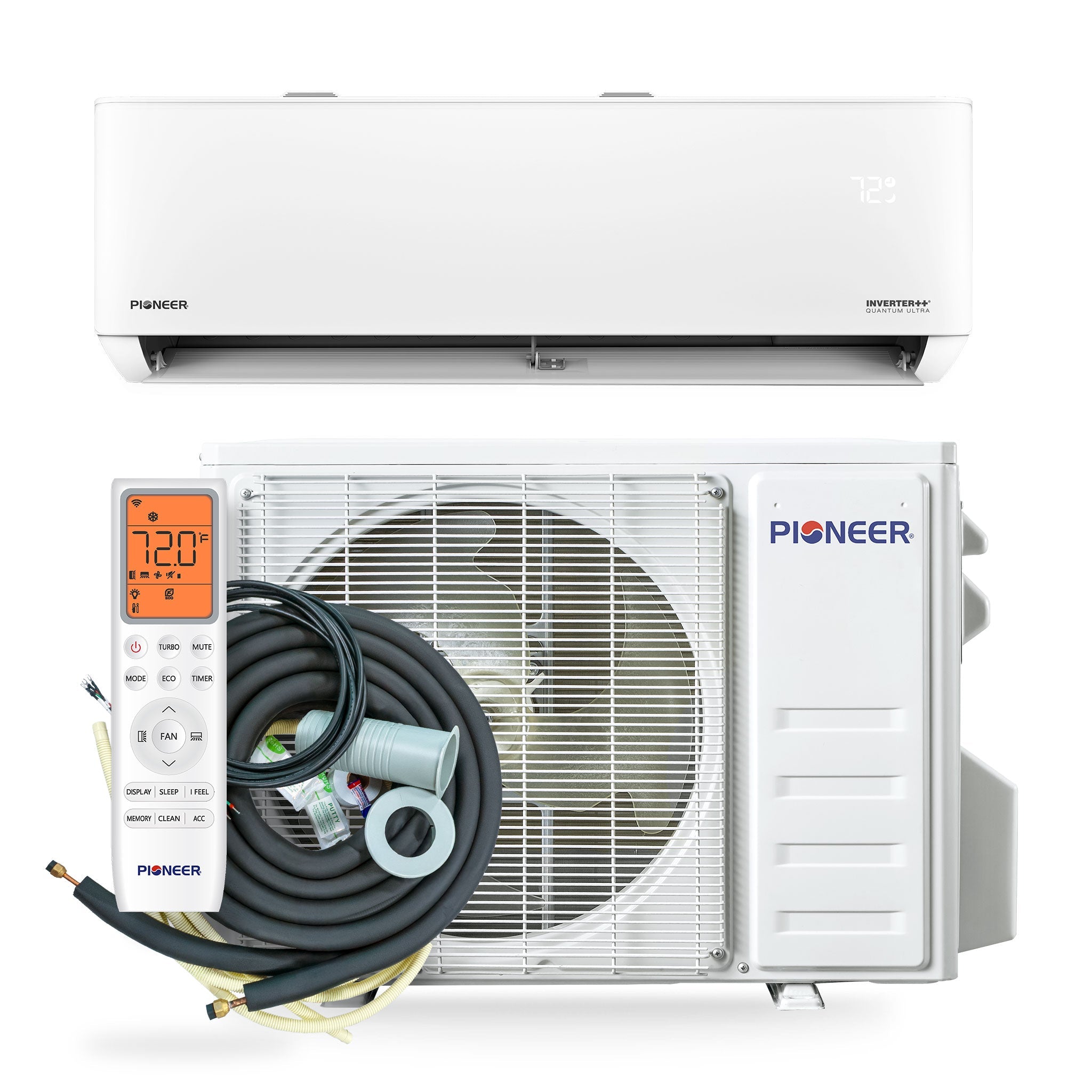

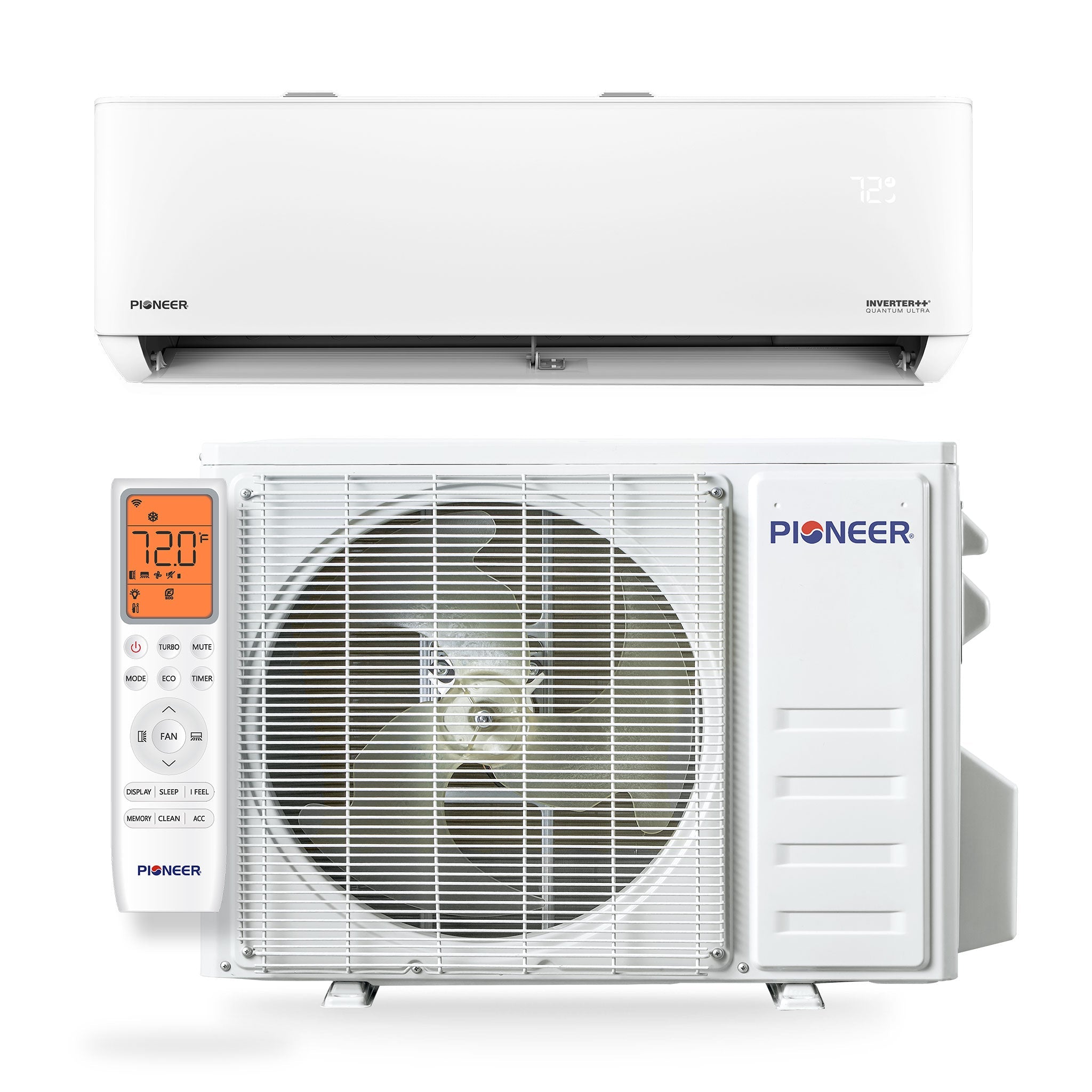

Quantum Ultra Ductless Mini Split Heat Pump System

The Quantum Ultra Ductless Mini Split Heat Pump System delivers ultra high efficiency performance with powerful cooling and heating capabilities in a compact, wall-mounted design. Equipped with smart inverter technology, Wi-Fi control, and eco-friendly R454b refrigerant, it ensures consistent comfort and quiet operation across a wide temperature range—from -13°F in heating to 131°F in cooling.

Specifications

• Cooling Capacity: 23,000 BTU/H (23 SEER2 / 12 EER2)

• Heating Capacity: 25,000 BTU/H (9.5 HSPF2 / 3.41 COP2)

• Voltage: 208/230V, 60Hz, 1Ph

• Mount Type: High Wall-Mounted Ductless Air Conditioning & Heating System

• Refrigerant: Environmentally Friendly R454b

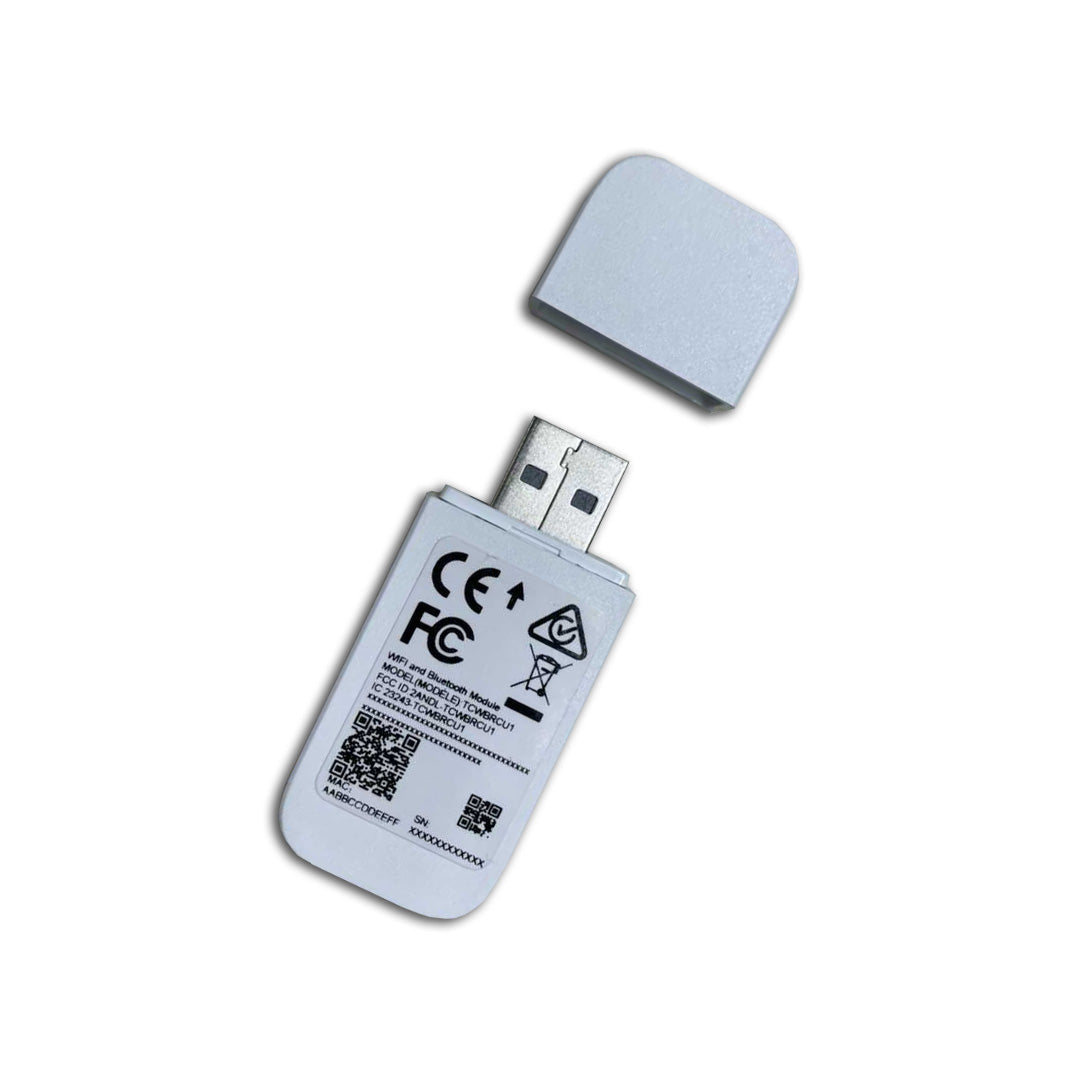

• Wi-Fi Control: Compatible with the Free Pioneer Airlink App

• Operation Range: -13°F (Heating) to 131°F (Cooling)

• Compressor Type: Variable-Speed DC Inverter

Features

• 4-in-1 Functionality: Cooling, Heating, Dry, and Ventilation Modes

• Dual Drainage Ports: Flexible Installation Options

• Washable Filters: Easy to Clean and Reusable

• Dual-Axis Airflow: Motorized Up-Down and Left-Right Louvers for Even Air Distribution

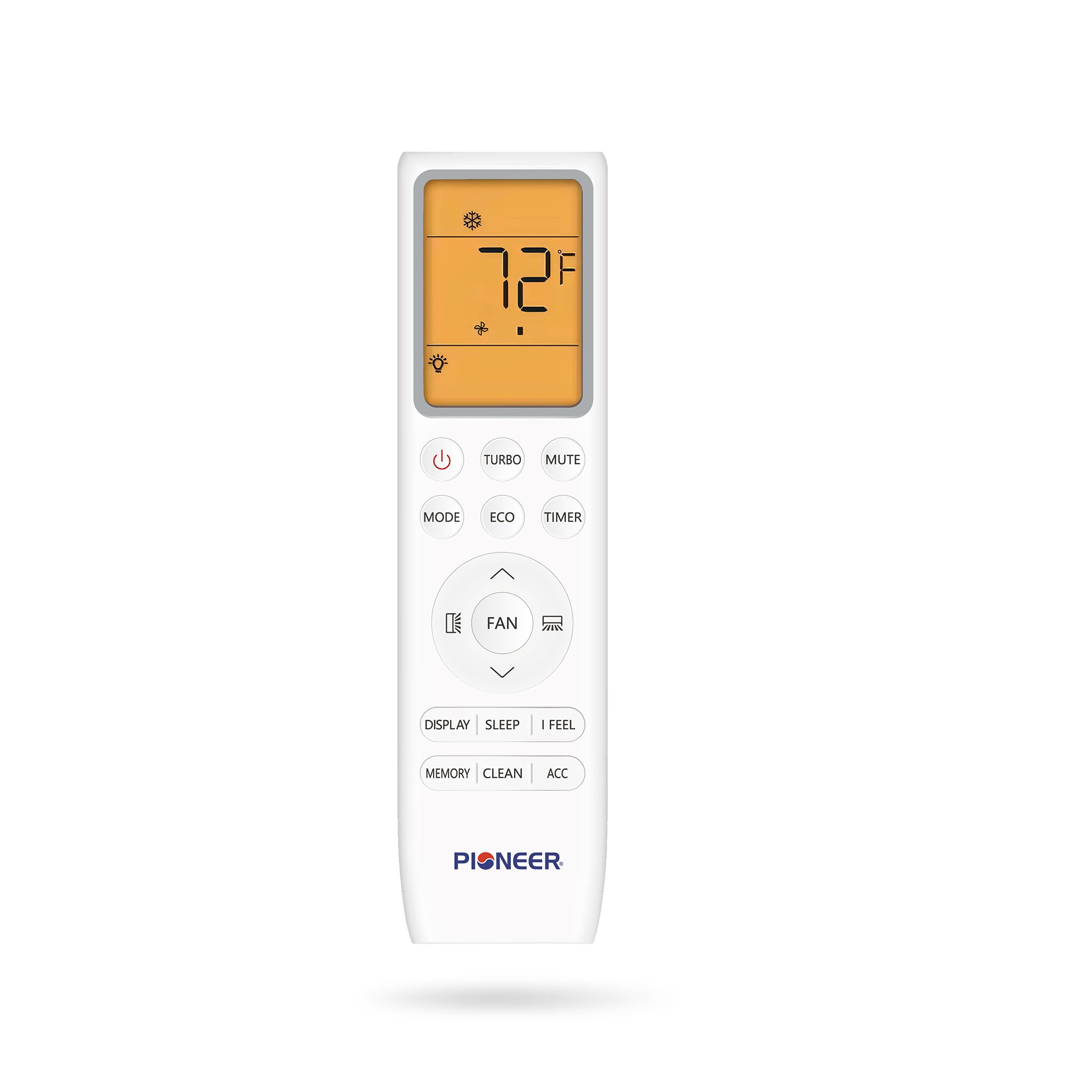

• Smart Remote Control: ECO, SLEEP, TIMER, TURBO, SELF-CLEAN, MEMORY, and IFEEL Functions

Technical Information & Performance

• Power Supply: 208~230V, 60Hz, 1Ph

• Cooling Capacity Range: 4,700–25,000 BTU/h

• Heating Capacity Range: 4,700–26,500 BTU/h

• HSPF2 (Region IV): 9.5 / 8.2 BTU/W.h

• C.O.P.2 (47°F/5°F): 3.41 / 1.8 W/W

• Recommended Room Size: 750–1,000 sq. ft.

• Minimum Room Size: 62 sq. ft.

• Minimum Installation Height: 6 ft

• Piping Diameter: 1/4" x 5/8"

• AHRI Reference: 217048753

• AHRI Certificate

• Energy Guide

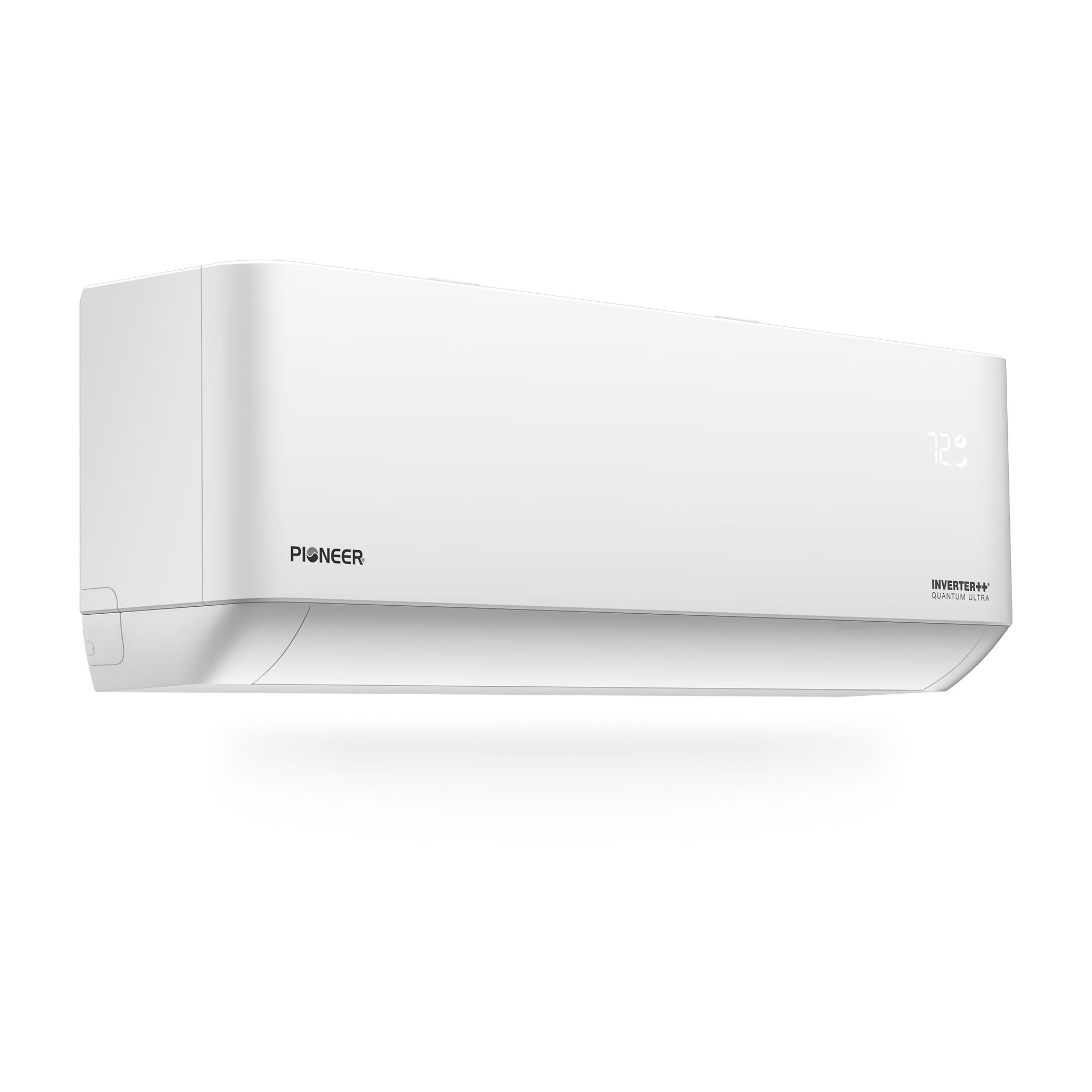

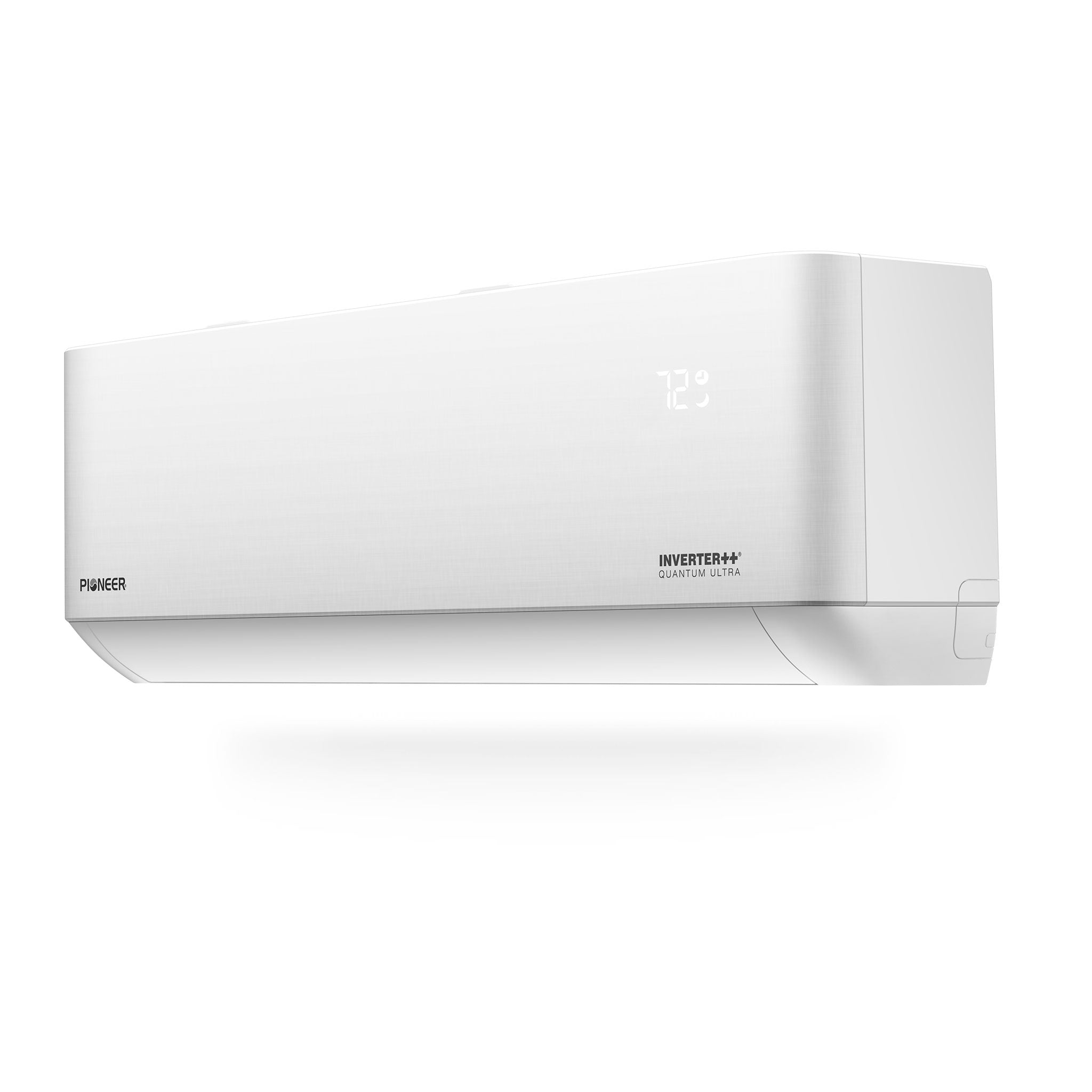

Indoor Unit

• Part Number: WT024GLSI24HLG

• Air Flow (Turbo/Hi/Med/Lo/Mute): 735 / 676 / 529 / 423 / 394 CFM

• Sound Level (Turbo/Hi/Med/Lo/Mute): 50 / 47 / 43 / 38 / 34 dB(A)

• Product Dimensions (W×D×H): 43⅛" × 8¾" × 13⅛"

• Carton Dimensions (W×D×H): 45⅞" × 11⅝" × 16"

• Net / Gross Weight: 30.9 / 35.3 lbs.

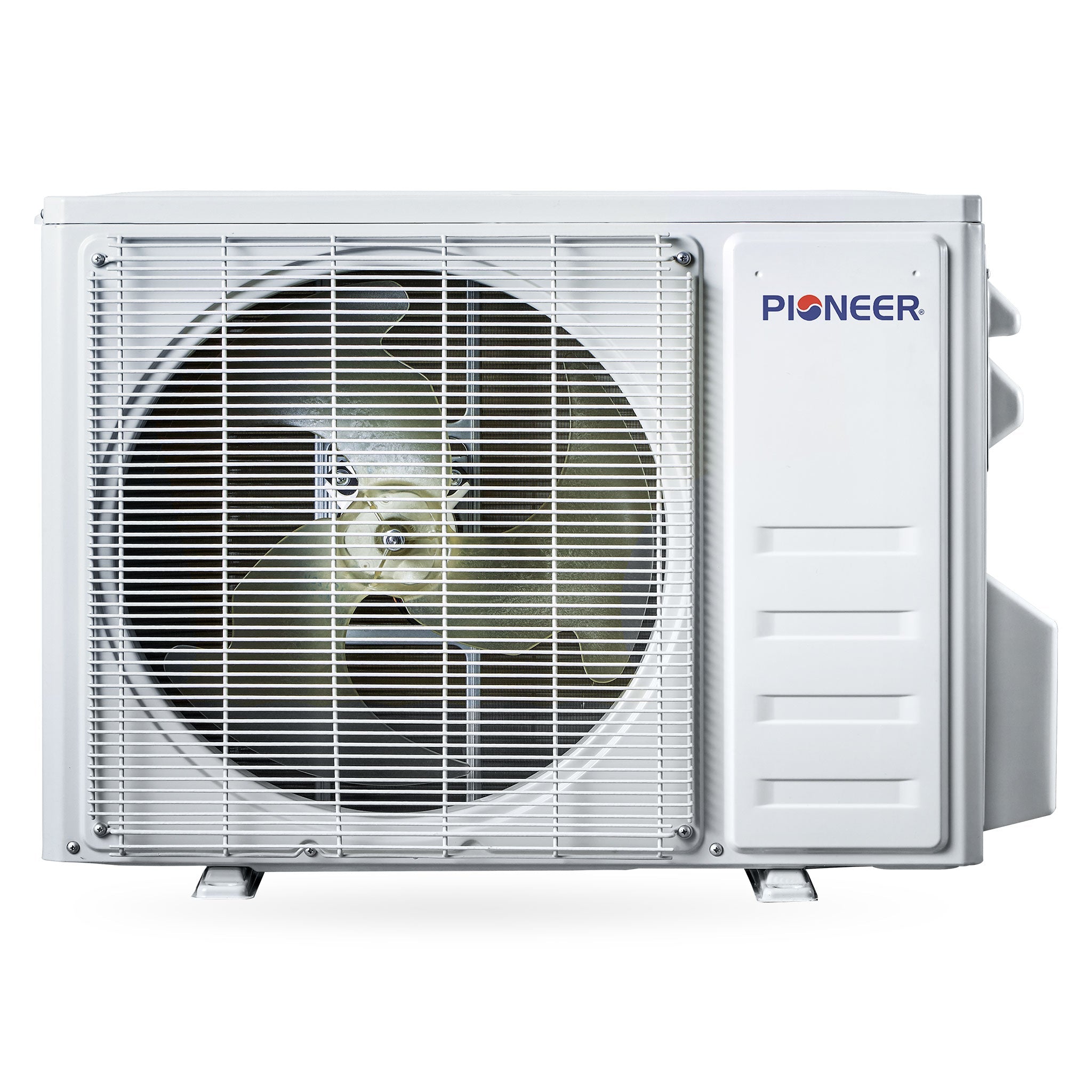

Outdoor Unit

• Part Number: YN024GLSI24RPG

• Breaker Required: 20A (Double-Pole)

• Sound Level: 54 dB(A)

• Product Dimensions (W×D×H): 38½" × 16⅝" × 31⅝"

• Carton Dimensions (W×D×H): 40¼" × 18⅞" × 31⅞"

• Net / Gross Weight: 104.7 / 113.5 lbs.

Dimension Chart
