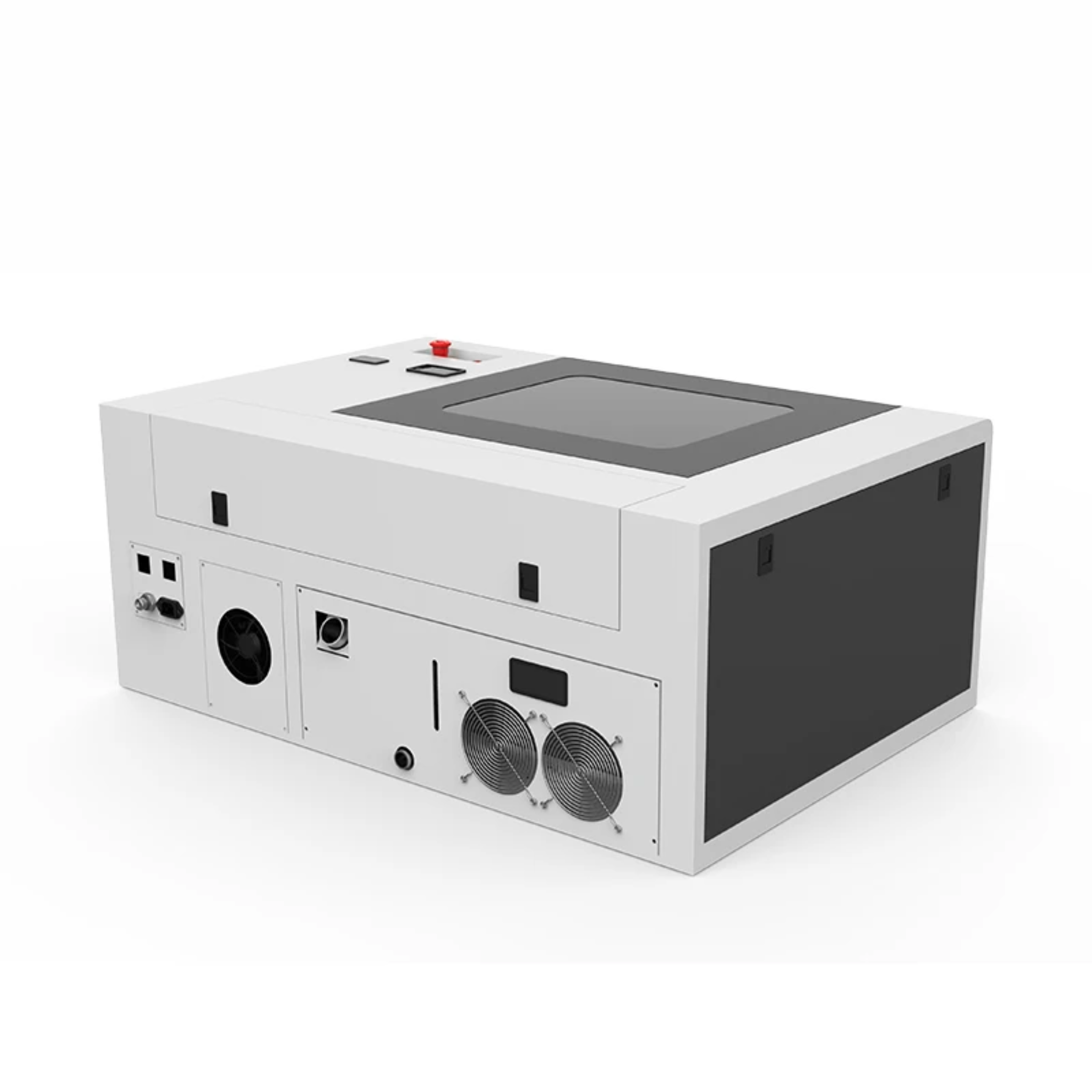

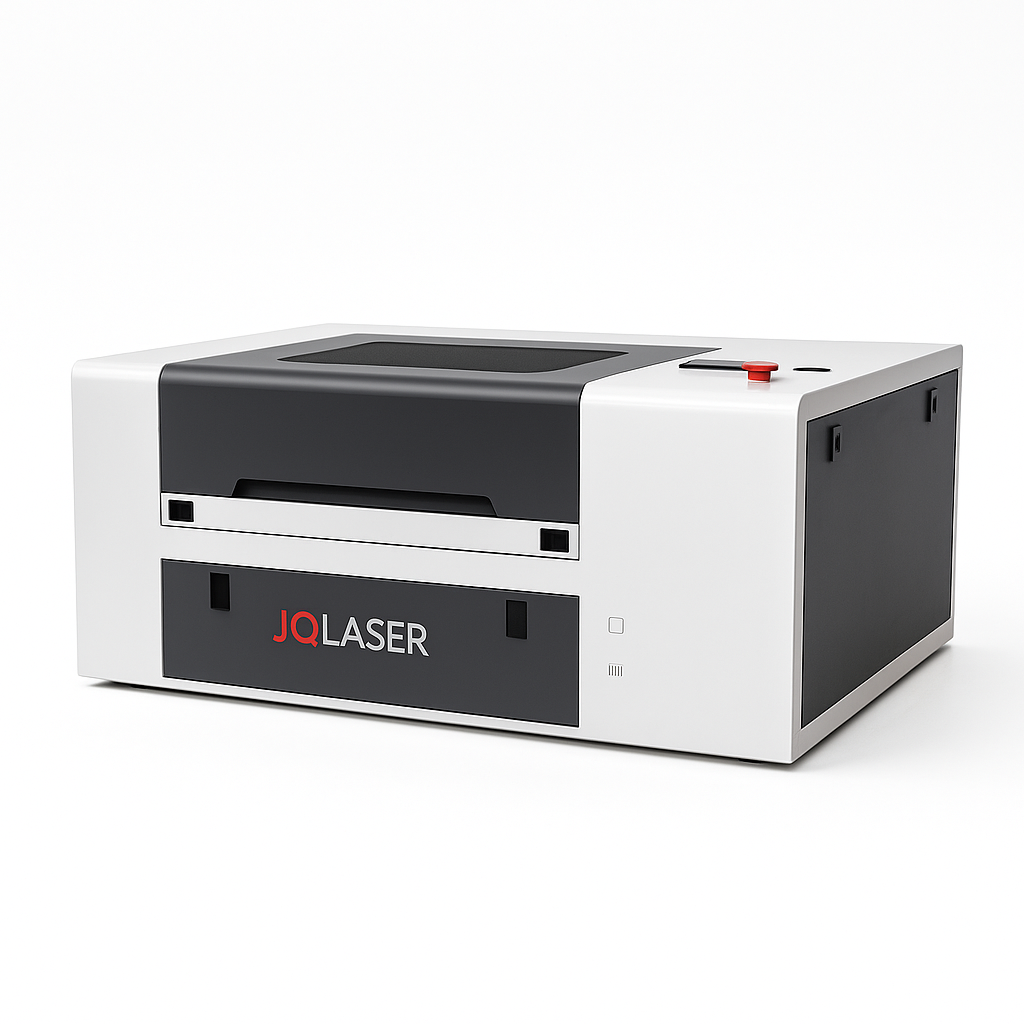

JQLaser Nova S400 Desktop Laser Engraver

The JQLaser Nova S400 Desktop Laser Engraver is designed for those who demand the best. This fully-enclosed, class-1 desktop system uses a sealed CO₂ laser tube, paired with autofocus, onboard camera alignment, and integrated air assist for crisp, clean cuts and detailed engraving. Housed in a rigid metal chassis with a panoramic lid window and emergency-stop, it delivers professional results for studios, makers, and small shops without taking over your workspace.

Specifications

• Material: Powder-coated steel chassis, acrylic viewing window, aluminum internal rails

• Dimensions: 80 cm (L) x 50 cm (W) x 28 cm (H)

• Features: Enclosed class-1 design, autofocus Z, camera alignment, Wi-Fi/LAN, air assist, emergency stop

• Work Area: 500 mm x 300 mm

• Laser Output: Sealed CO₂ 40 W (peak 45 W), 10.6 µm wavelength

Features

• High-Resolution Engraving: Up to 1000 dpi with precise belt-driven motion

• Autofocus Z & Motorized Bed: One-touch height calibration for perfect focal distance

• Onboard Camera: Live preview and drag-to-place artwork for accurate positioning

• Clean Cuts: Integrated air assist and external exhaust port reduce char and smoke

• Material Versatility: Engraves wood, leather, acrylic, coated metals, glass, rubber, and more

• Safe & Connected: Class-1 enclosure, door interlock, E-stop, Wi-Fi/LAN with browser control

Maintenance

• Daily: Wipe lens and bed, empty debris and ensure exhaust flow

• Weekly: Check mirror alignment, clean rails, and inspect air-assist line

• Annually: Replace intake filter, service cooling system, and perform full optical calibration

Warranty

• Frame & Mechanics: 2 years

• Laser Tube & Electronics: 1 year
