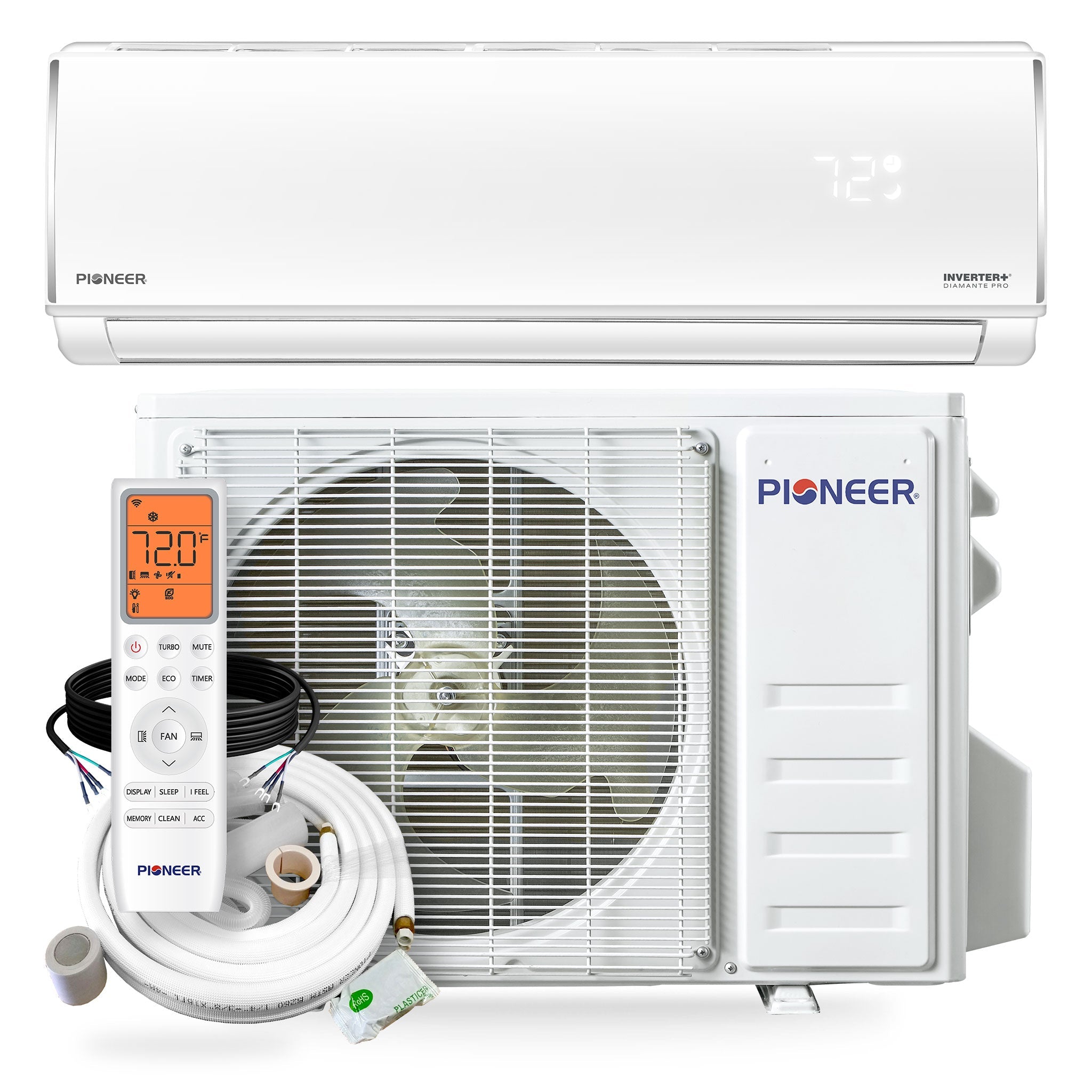

Pioneer Diamante Pro™ 36,000 BTU Wall-Mounted Ductless Mini Split

The Diamante Pro delivers dependable, high-capacity comfort with 36,000 BTU/h cooling and heating, rated at 19 SEER2 / 9.0 EER2 and 9.0 HSPF2. This variable-speed DC inverter system arrives factory-precharged with eco-forward R454b refrigerant and operates in a low ambient range (heating to -4°F, cooling to 122°F). A quiet high wall-mounted indoor unit and robust outdoor unit make it ideal for large zones and open-plan spaces.

Specifications

  • Type: High wall-mounted ductless heat pump (cooling & heating)

  • Power Supply: 208~230V, 60Hz, 1Ph

  • Cooling Rated Capacity: 36,000 BTU/h (range 7,500–36,000)

  • Heating Rated Capacity: 36,000 BTU/h (range 7,500–36,000)

  • Efficiency Ratings: 19.0 SEER2 / 9.0 EER2; 9.0 HSPF2 (Region IV); COP2 3.15 (47°F) / 2.1 (5°F)

  • Refrigerant: R454b (factory-precharged)

  • Recommended Room Size: 1,000–1,400 sq ft; Minimum Room Size: 63 sq ft

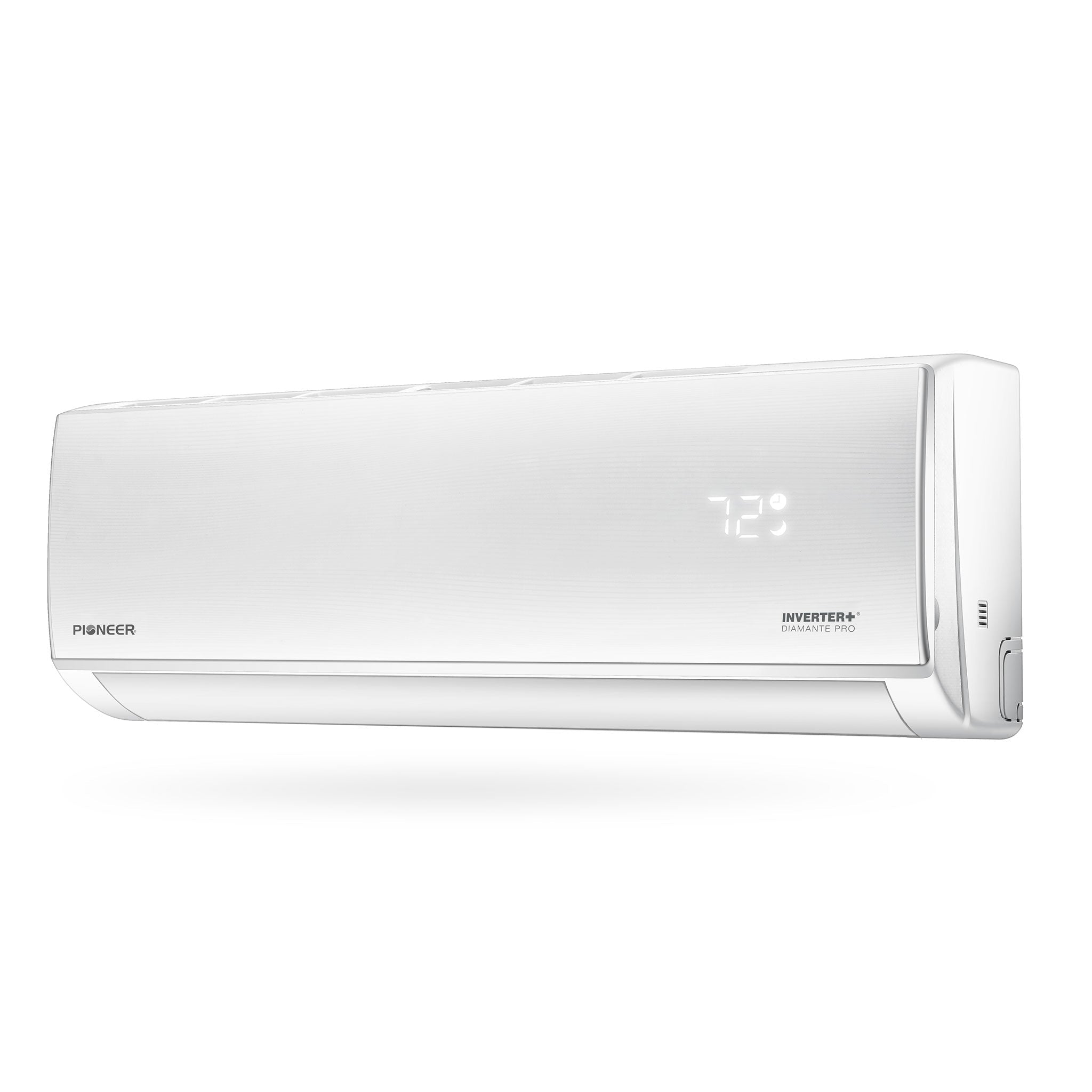

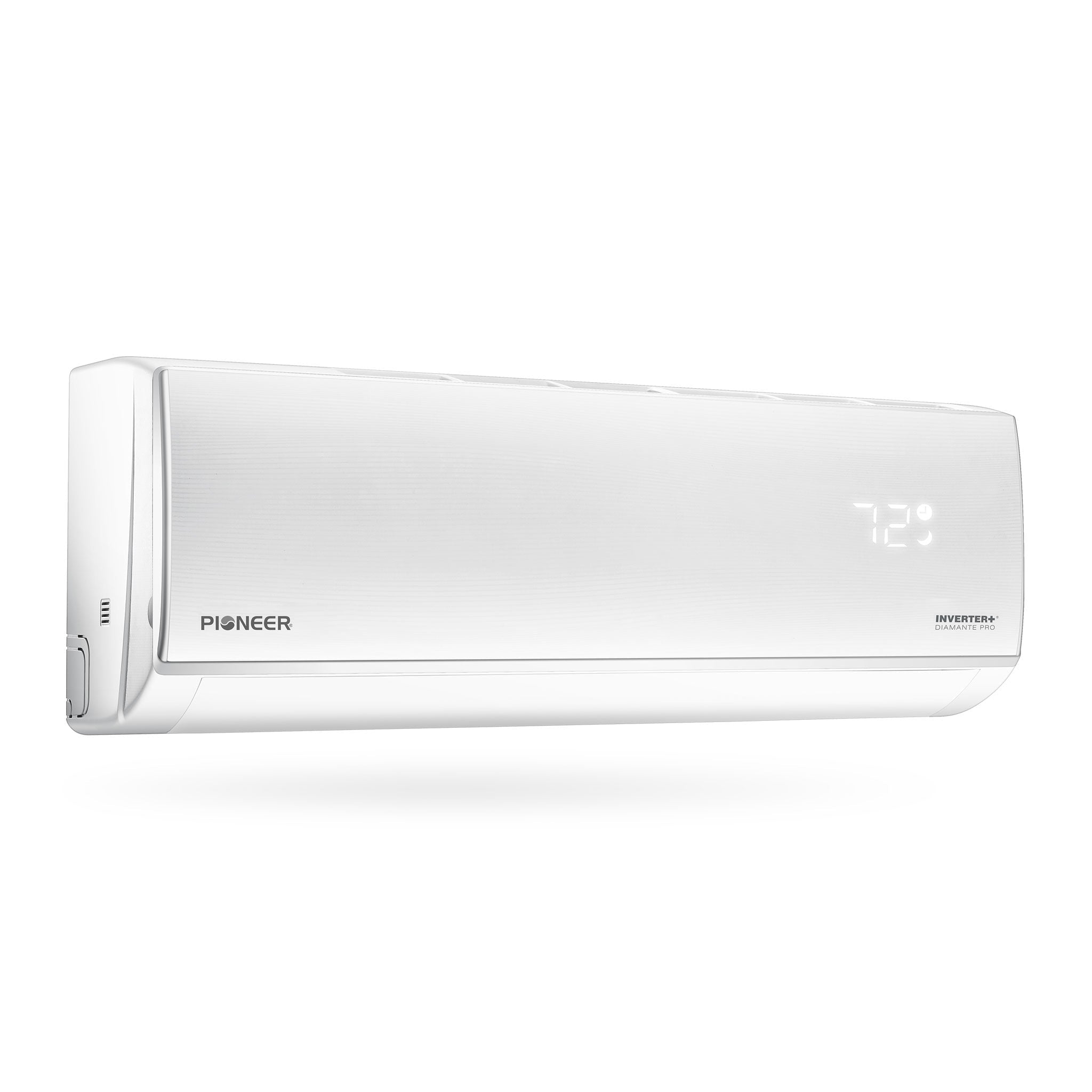

  • Indoor Unit (WT036GLSI20HLF): Airflow 847/705/588/470/412 CFM; Sound 52/49/43/38/36 dB(A); Dimensions (W×D×H) 46-7/8" × 10-1/4" × 14-1/4"; Net/Gross 39.7 / 48.5 lbs

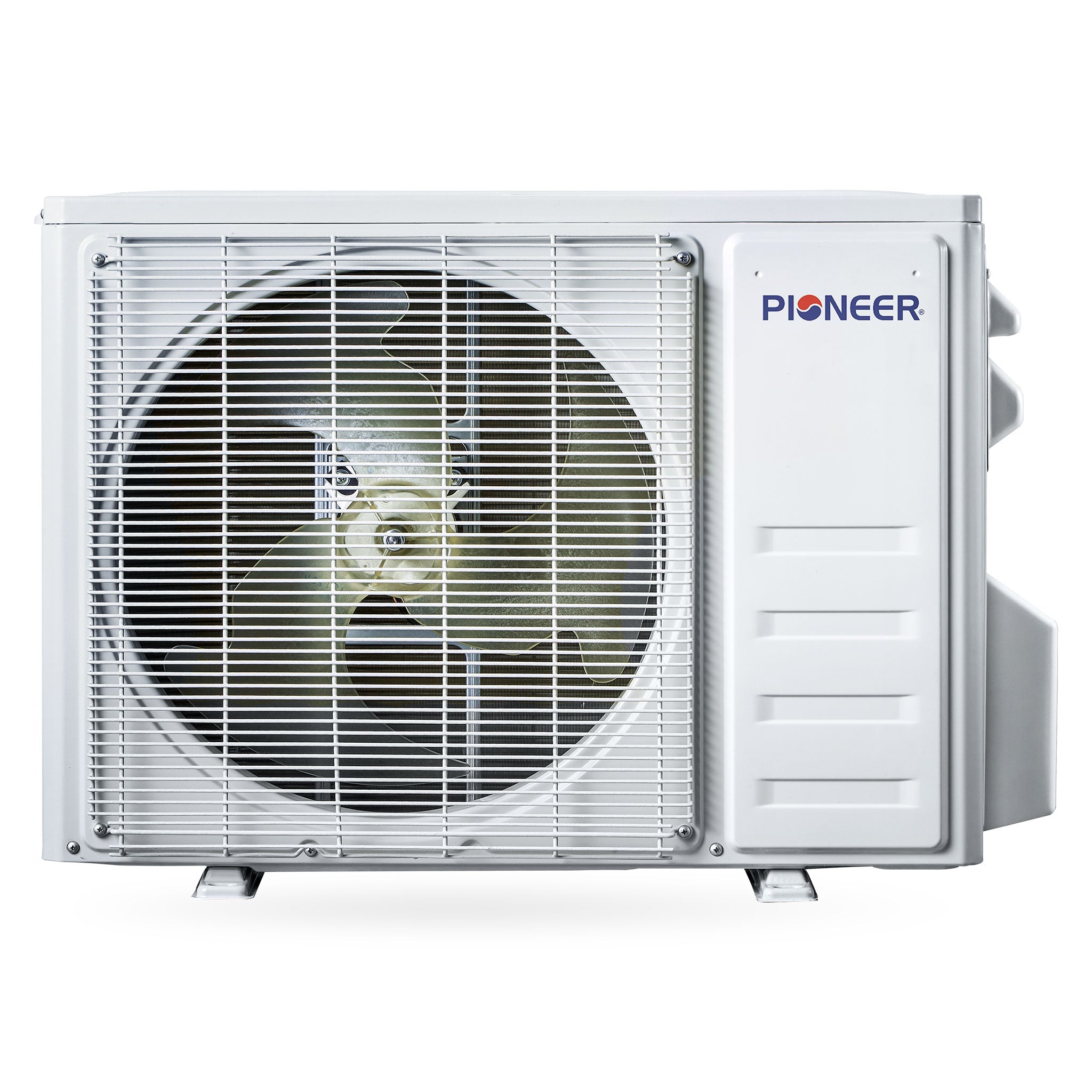

  • Outdoor Unit (YN036GLSI20RPF): Breaker 30A (double-pole); Sound 63 dB(A); Dimensions (W×D×H) 38-1/2" × 16-1/2" × 31-5/8"; Net/Gross 105.8 / 120.2 lbs

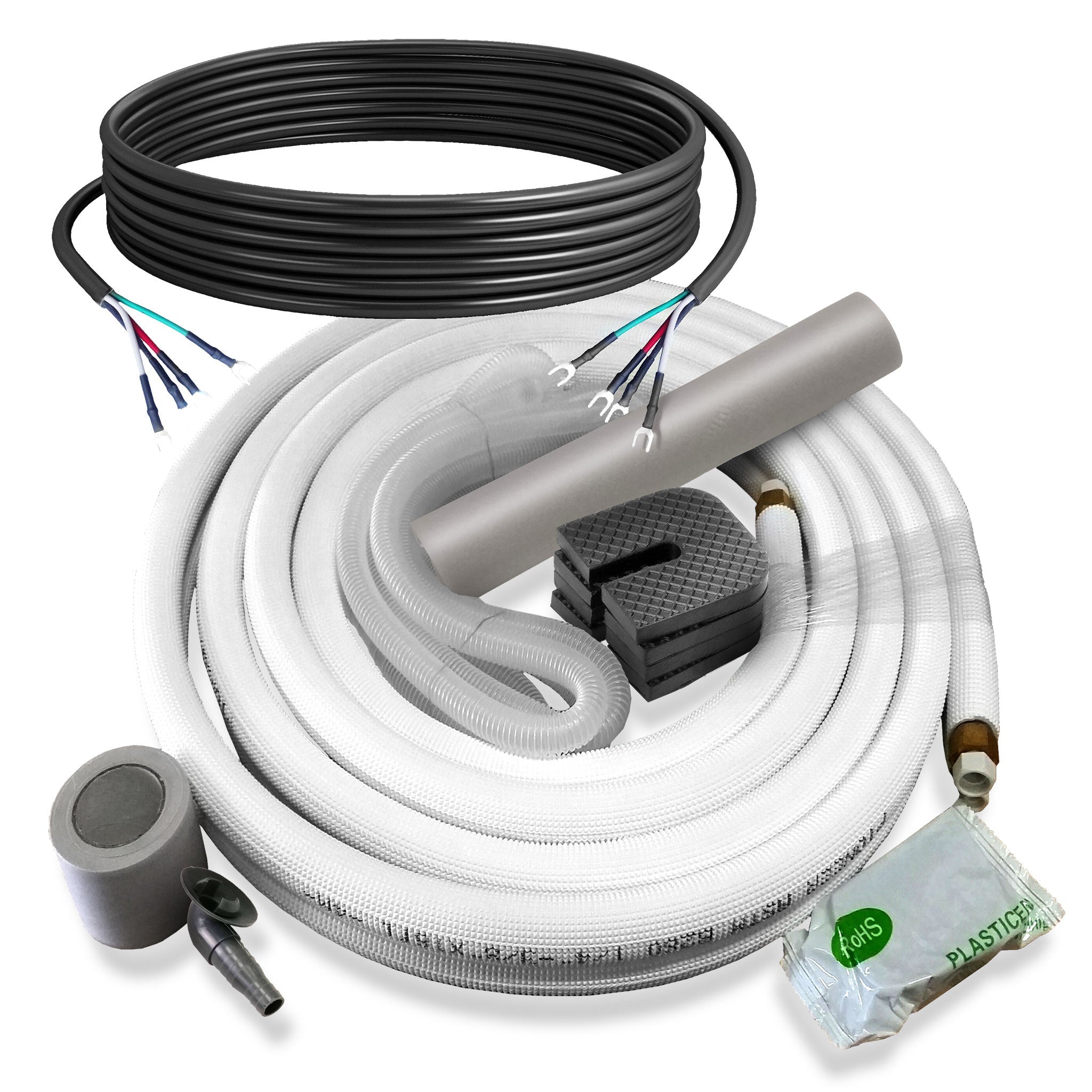

  • Piping Diameter: 1/4"–5/8"; Minimum Installation Height: 6 ft

  • Ambient Range: Heating to -4°F / Cooling to 122°F

  • AHRI Reference: 217048747

Features

  • Operating Modes: Cooling, heating, dry, and ventilation

  • Drainage: Dual-drainage ports for flexible installs

  • Filtration: Washable, reusable air filters

  • Airflow Control: Dual-axis motorized louvers (up-down & left-right)

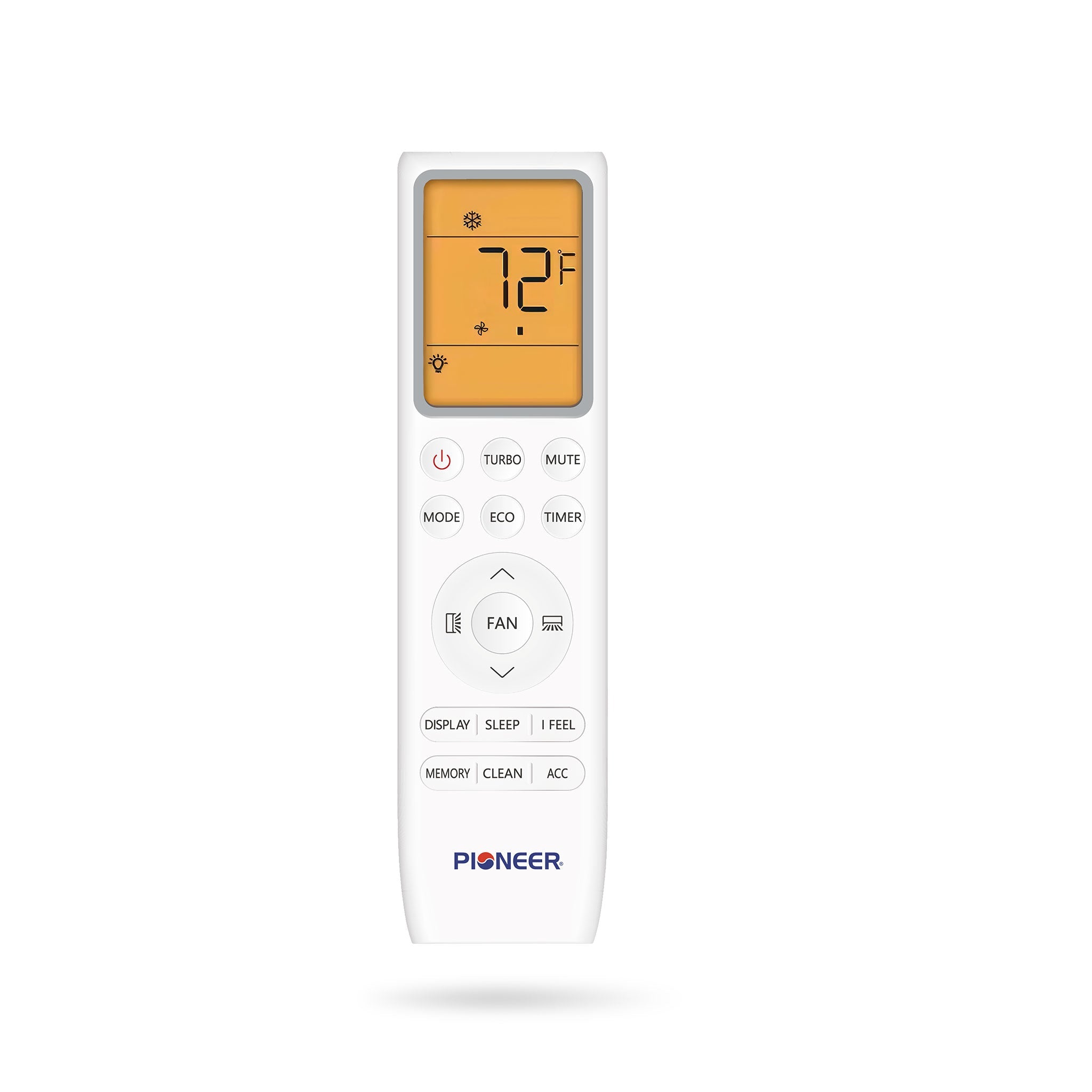

  • Remote Functions: ECO & SLEEP, Timer On/Off, TURBO, Self-Clean, MEMORY, IFEEL (ambient sensing)

Maintenance

  • Filters: Rinse washable filters regularly to maintain airflow

  • Self-Clean: Run the self-clean cycle periodically to reduce coil residue

  • Seasonal Care: Keep the outdoor unit clear of debris; verify condensate drainage; schedule annual professional checkups

Warranty

  • Coverage: See manufacturer’s parts and compressor warranty terms

  • Documentation: Refer to the AHRI Certificate and Energy Guide for certified ratings
