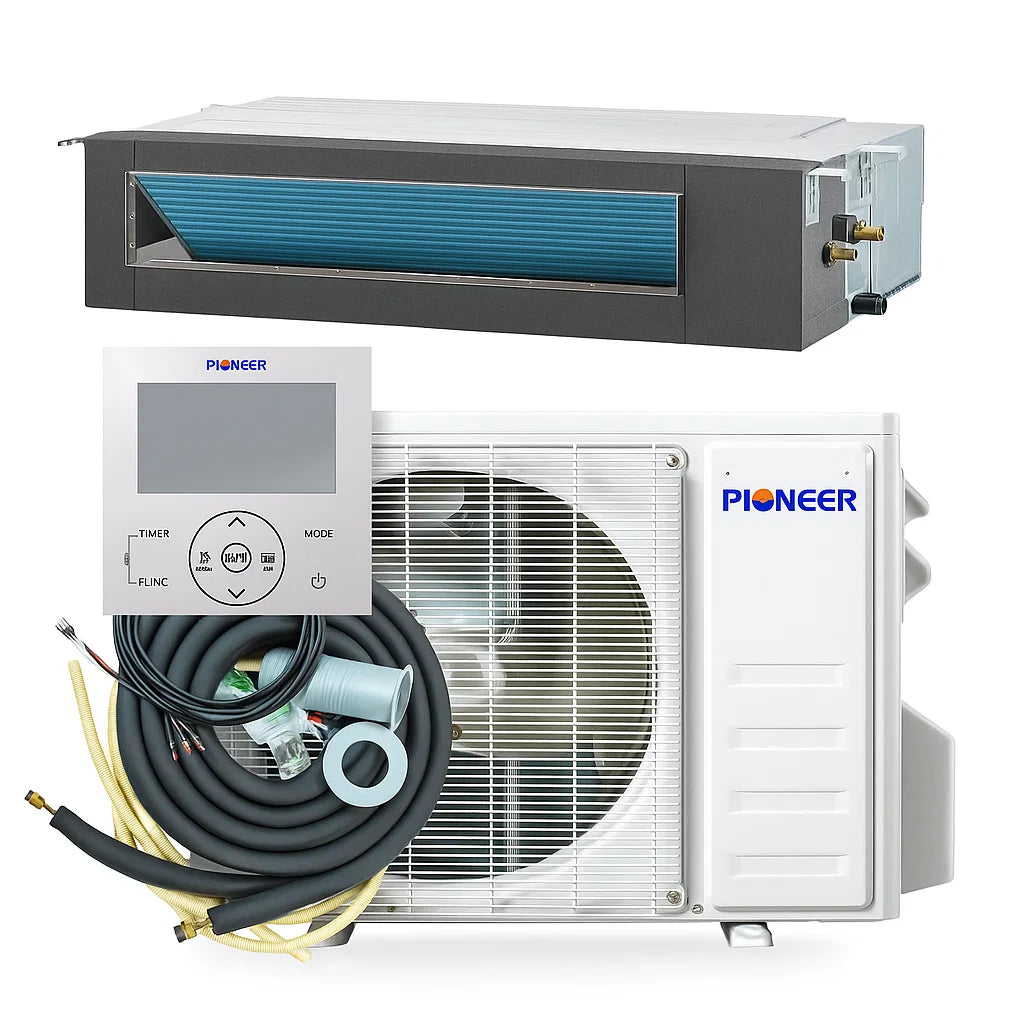

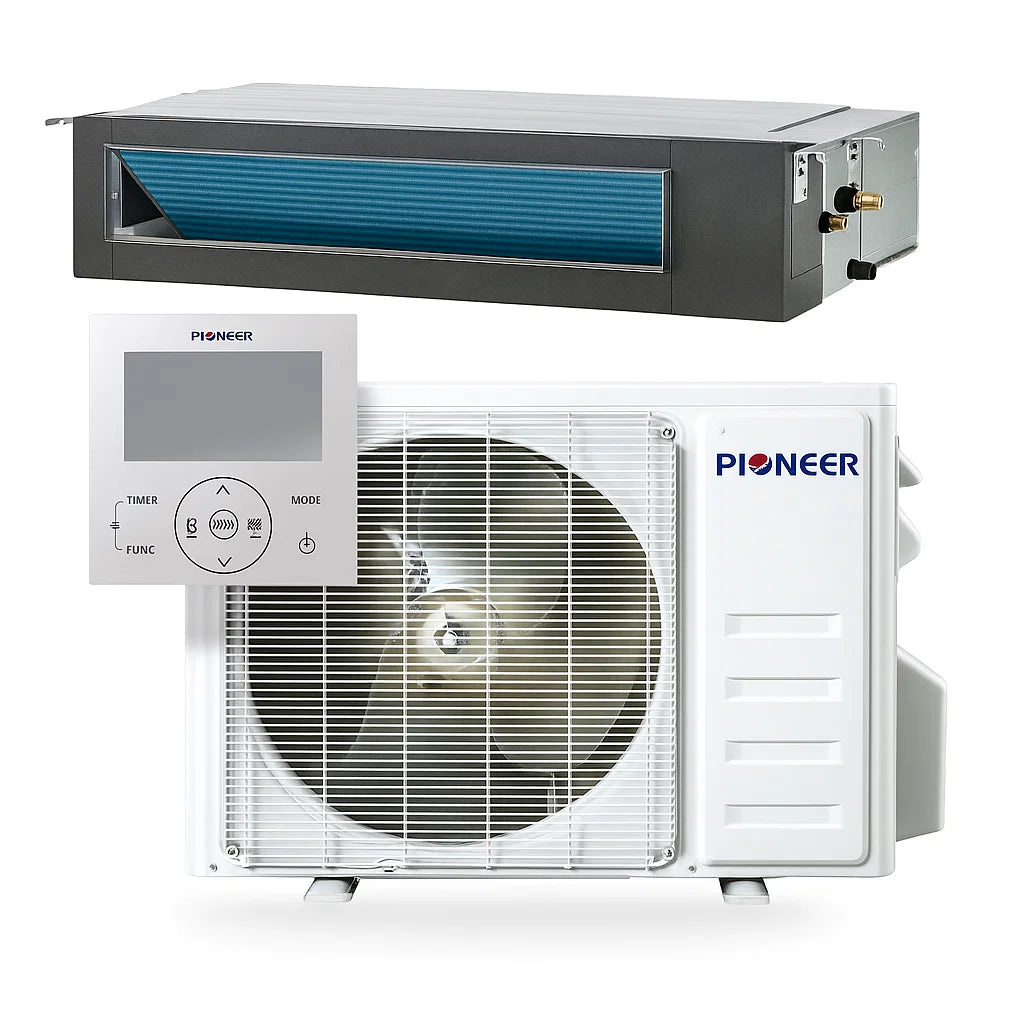

Quantum Ultra 17,000 BTU Ceiling Concealed Ducted Split Heat Pump System

The Quantum Ultra Ceiling Concealed Ducted Split Heat Pump System offers high-efficiency heating and cooling performance with advanced inverter technology and ultra-low ambient operation. Designed for discreet ceiling installation, it provides quiet, powerful comfort for medium-sized spaces while maintaining excellent energy savings through its DC inverter and R454b refrigerant system.

Specifications

• Cooling Capacity: 17,000 BTU/H (21 SEER2 / 11.7 EER2)

• Heating Capacity: 18,000 BTU/H (8.1 HSPF2 / 2.9 COP2)

• Voltage: 208/230V, 60Hz, 1Ph

• Mount Type: Ceiling Concealed Mounted Ducted System

• Refrigerant: Environmentally Friendly R454b

• Operation Range: -13°F (Heating) to 131°F (Cooling)

• Suitable Area: 500–750 sq. ft.

• AHRI Reference: 217048764

Features

• High Efficiency: DC Inverter-driven compressor ensures energy savings and stable performance.

• Multi-Mode Operation: Heat Pump with Cooling, Heating, Dry, and Ventilation modes.

• Dual Drainage Ports: Flexible installation options to suit your ceiling layout.

• Washable Filters: Reusable air filters for easy maintenance.

• Dual-Axis Airflow: Motorized up-down and left-right louvers for optimal air distribution.

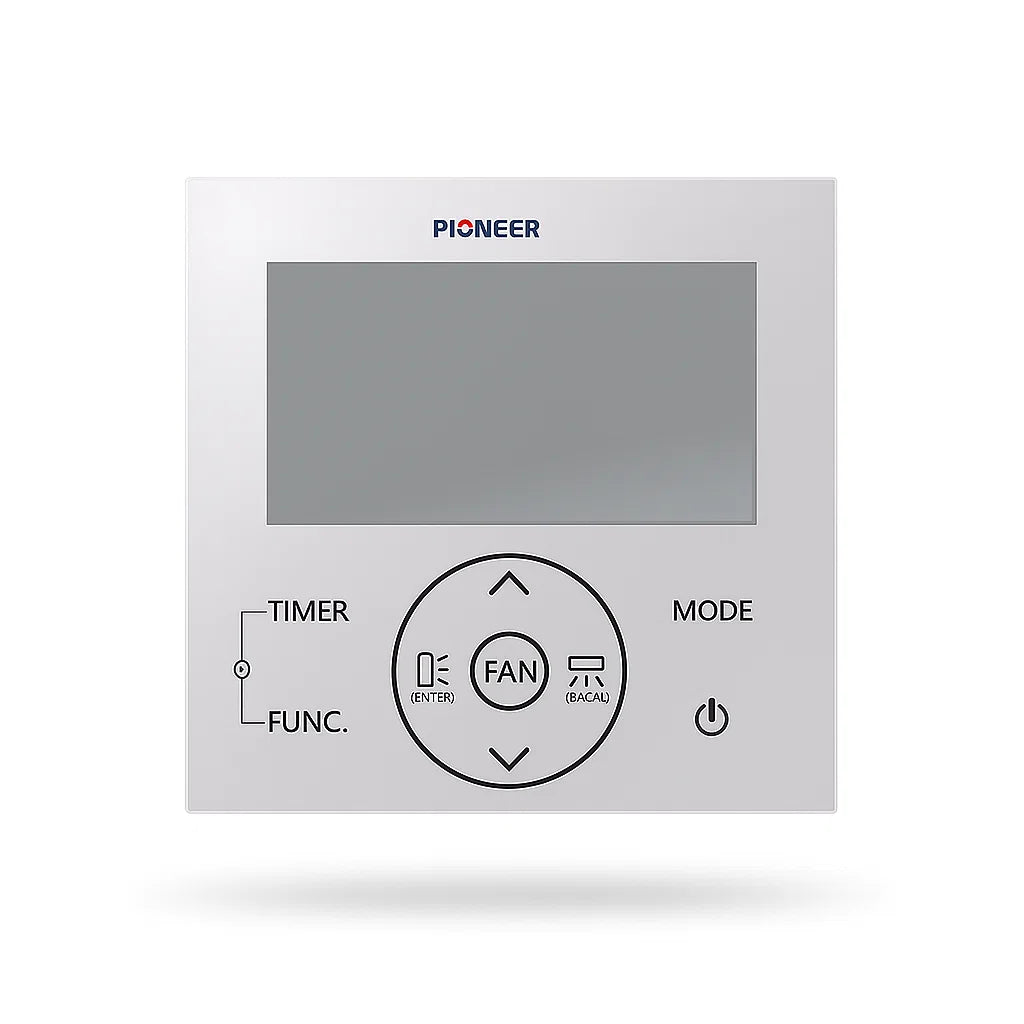

• Smart Remote Control: Features ECO, SLEEP, TIMER, TURBO, SELF-CLEAN, MEMORY, and IFEEL temperature detection modes.

• Ultra Low Ambient Range: Reliable operation from -13°F to 131°F.

• Quiet Performance: Indoor unit sound level as low as 36 dB(A).

Technical Information

• Power Supply: 208~230V, 60Hz, 1Ph

• Cooling Capacity Range: 6,000~19,400 BTU/h

• Heating Capacity Range: 4,000~21,400 BTU/h

• HSPF2 (Region IV): 8.1 / 7.2 BTU/W.h

• C.O.P.2 (47°F/5°F): 2.9 / 1.8 W/W

• AHRI Certificate: View PDF

• Energy Guide: View PDF

Indoor Unit

• Model: RT018GLSILCFHG

• Air Flow (Turbo/Hi/Med/Lo/Mute): 500 / 426 / 370 / 300 / 283 CFM

• Sound Level (Turbo/Hi/Med/Lo/Mute): 41 / 38 / 36 dB(A)

• Dimensions (W×D×H): 35½" × 19¼" × 7⅞"

• Carton Dimensions: 44⅛" × 21⅞" × 9⅞"

• Weight (Net/Gross): 39.7 / 46.3 lbs.

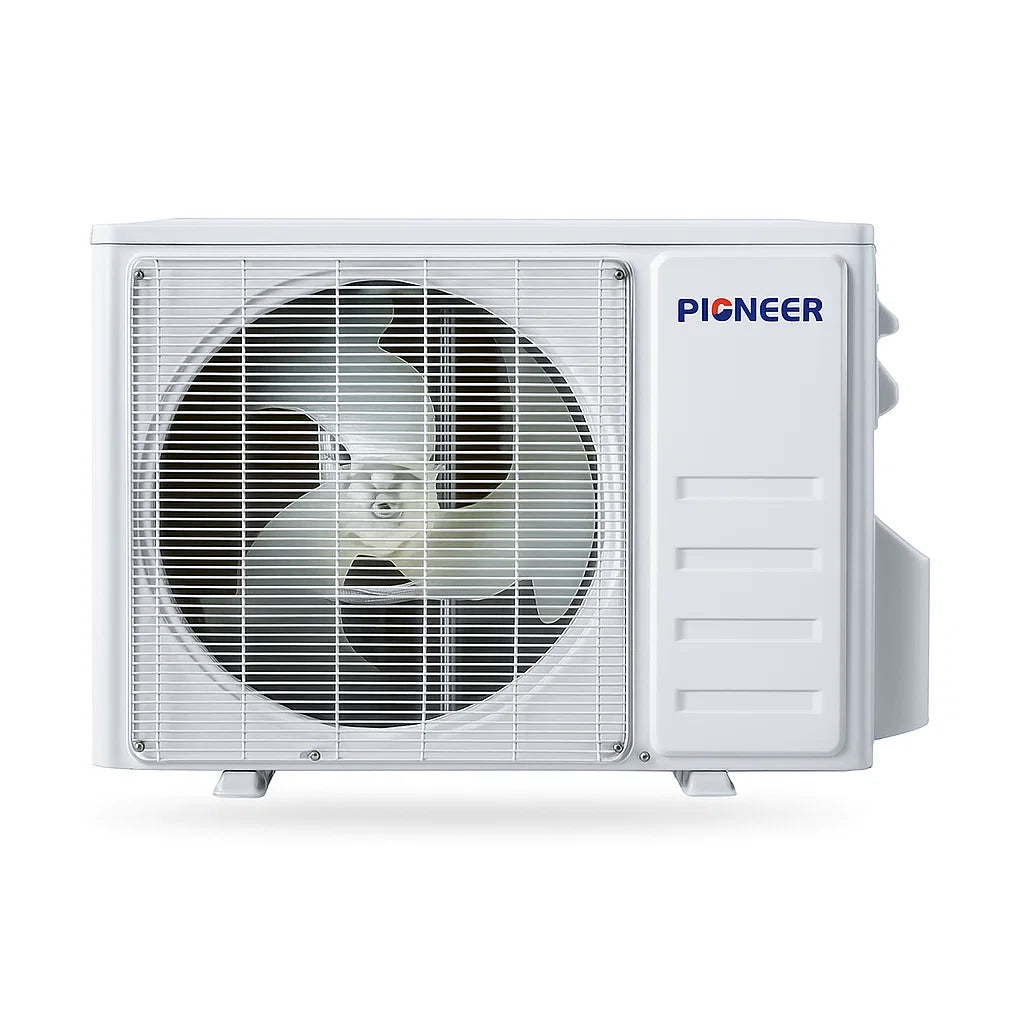

Outdoor Unit

• Model: YN018GLSI24RPG

• Breaker Required: 20A (double-pole)

• Sound Level: 53 dB(A)

• Dimensions (W×D×H): 36½" × 15" × 27½"

• Carton Dimensions: 37⅜" × 16½" × 28⅞"

• Weight (Net/Gross): 90.4 / 97.0 lbs.

Dimension Chart
