Quantum Ultra Ceiling Cassette Split Heat Pump System
The Quantum Ultra Ceiling Cassette Split Heat Pump System delivers high-efficiency heating and cooling performance with quiet operation and a sleek ceiling-mounted design. Engineered with advanced DC inverter technology and pre-charged with eco-friendly R454b refrigerant, this system ensures maximum comfort and energy savings even in extreme temperatures down to -13°F and up to 131°F.
Summary
- Type: Ceiling Cassette Mounted Ductless Air Conditioning & Heating System
- Cooling Capacity: 23,000 BTU/H (22.5 SEER2 / 11.7 EER2)
- Heating Capacity: 25,000 BTU/H (10.4 HSPF2 / 3.6 COP2)
- Voltage: 208/230V, 60Hz, 1Ph
- Inverter: Variable-Speed DC Inverter Driven Performance
- Refrigerant: Factory-Precharged with R454b (Environmentally Friendly)
- Operating Range: -13°F (Heating) / 131°F (Cooling)
Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)

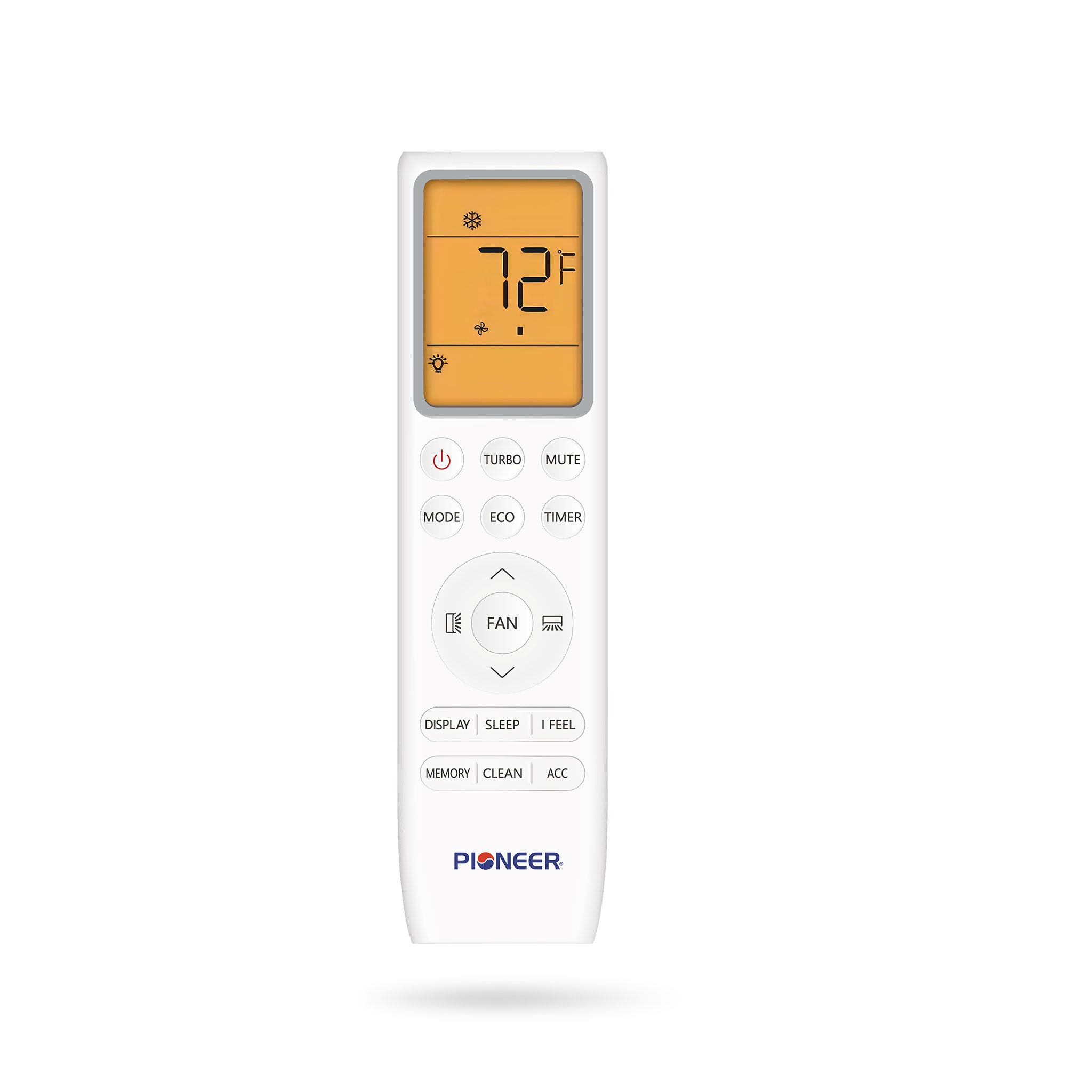

- Functional Remote Control Featuring:
- ECO and SLEEP Modes for Energy Conservation
- Timer On/Off Control
- TURBO Mode for Rapid Cooling or Heating
- Self-Clean Cycle
- MEMORY Function to Recall Preferred Settings
- IFEEL Sensor to Detect and Adjust to Local Temperature
Technical Information & Performance
-

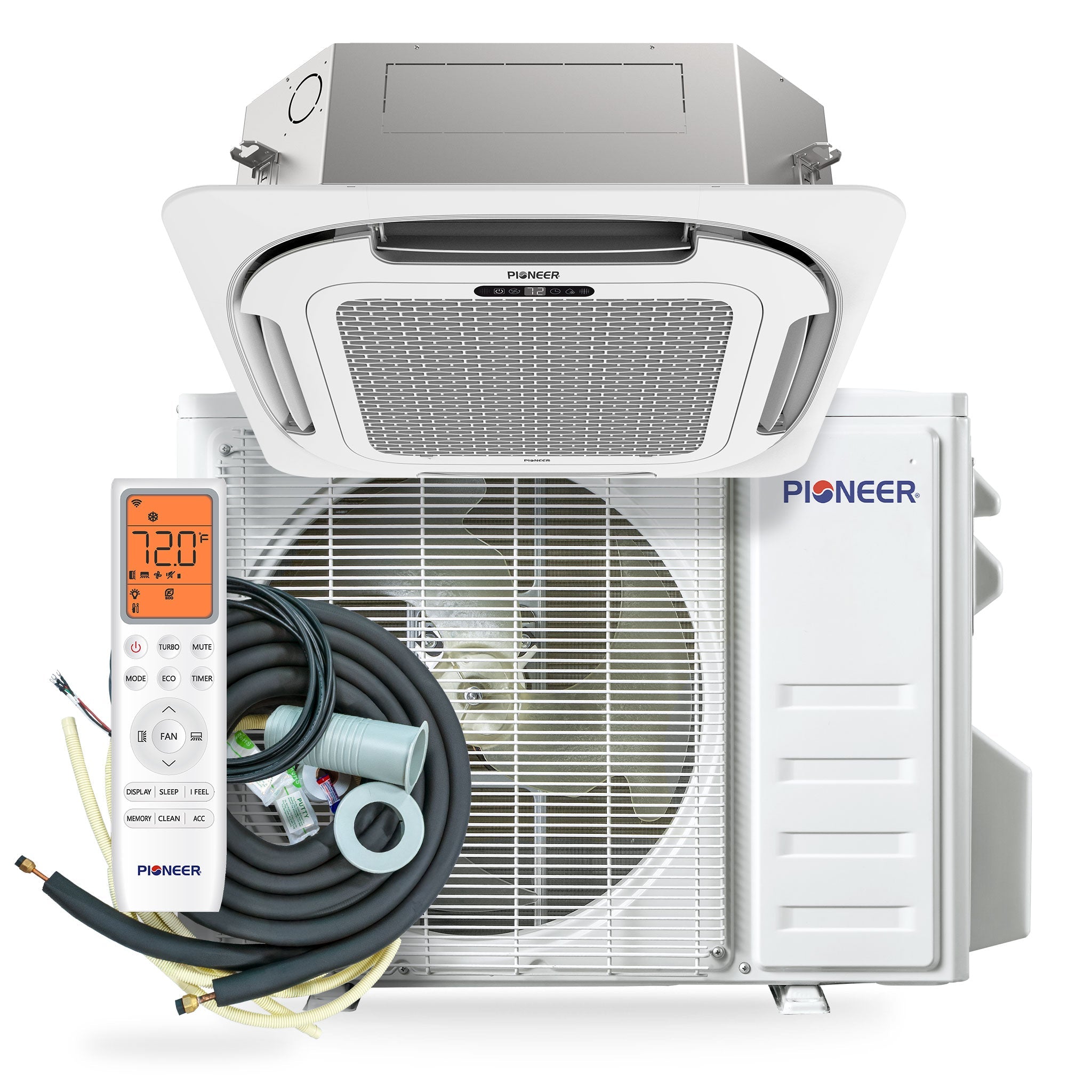

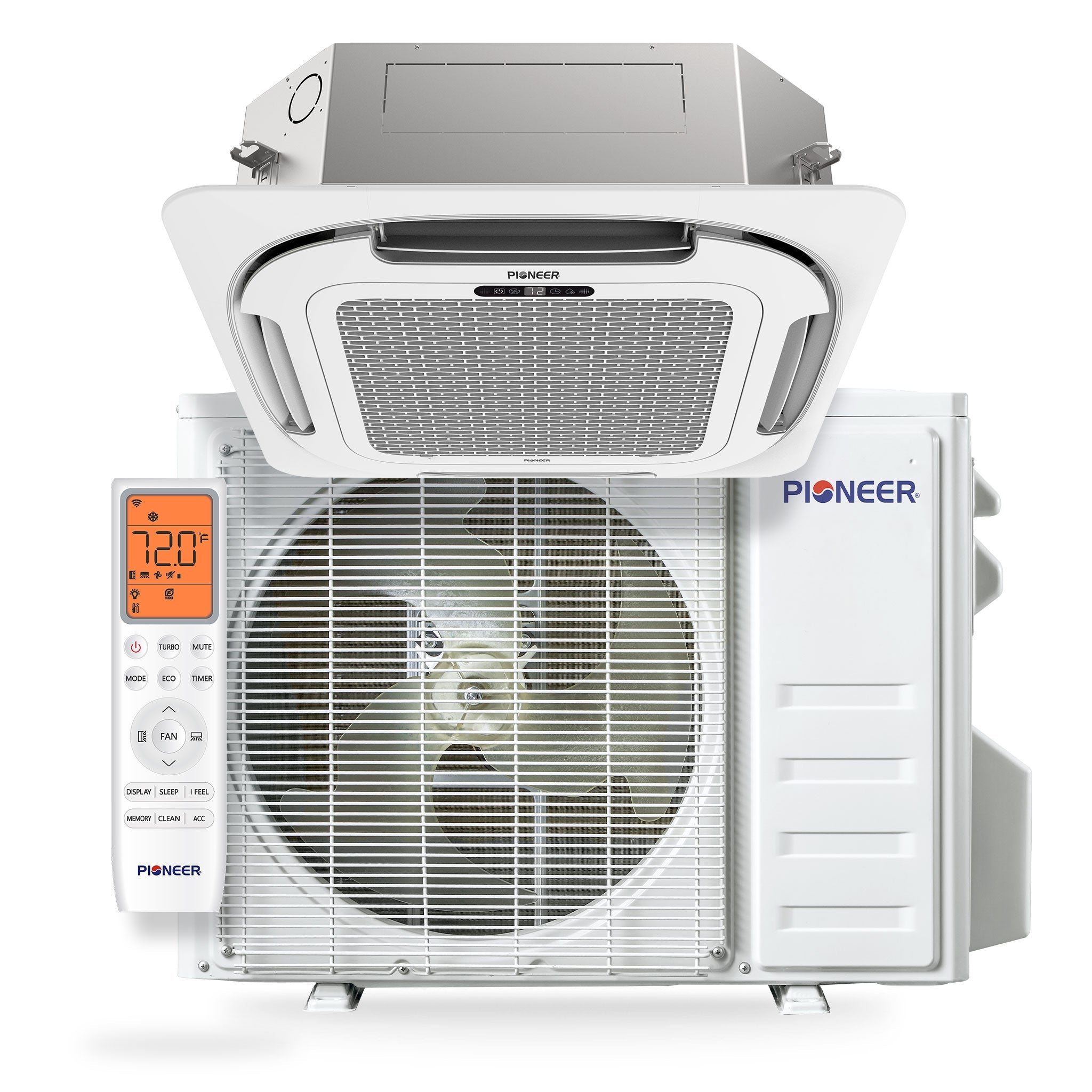

System Kit
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 23,000 BTU/h
- Cooling Range: 7,550–25,200 BTU/h
- Cooling Efficiency: 22.5 SEER2 / 11.7 EER2
- Heating Rated Capacity: 25,000 BTU/h
- Heating Range: 8,700–28,300 BTU/h
- Heating Efficiency: 10.4 HSPF2 / 3.6 COP2
- Refrigerant Type: R454b
- Suitable Area: 750–1,000 Sq. Ft.
- AHRI Reference: 217048761
-

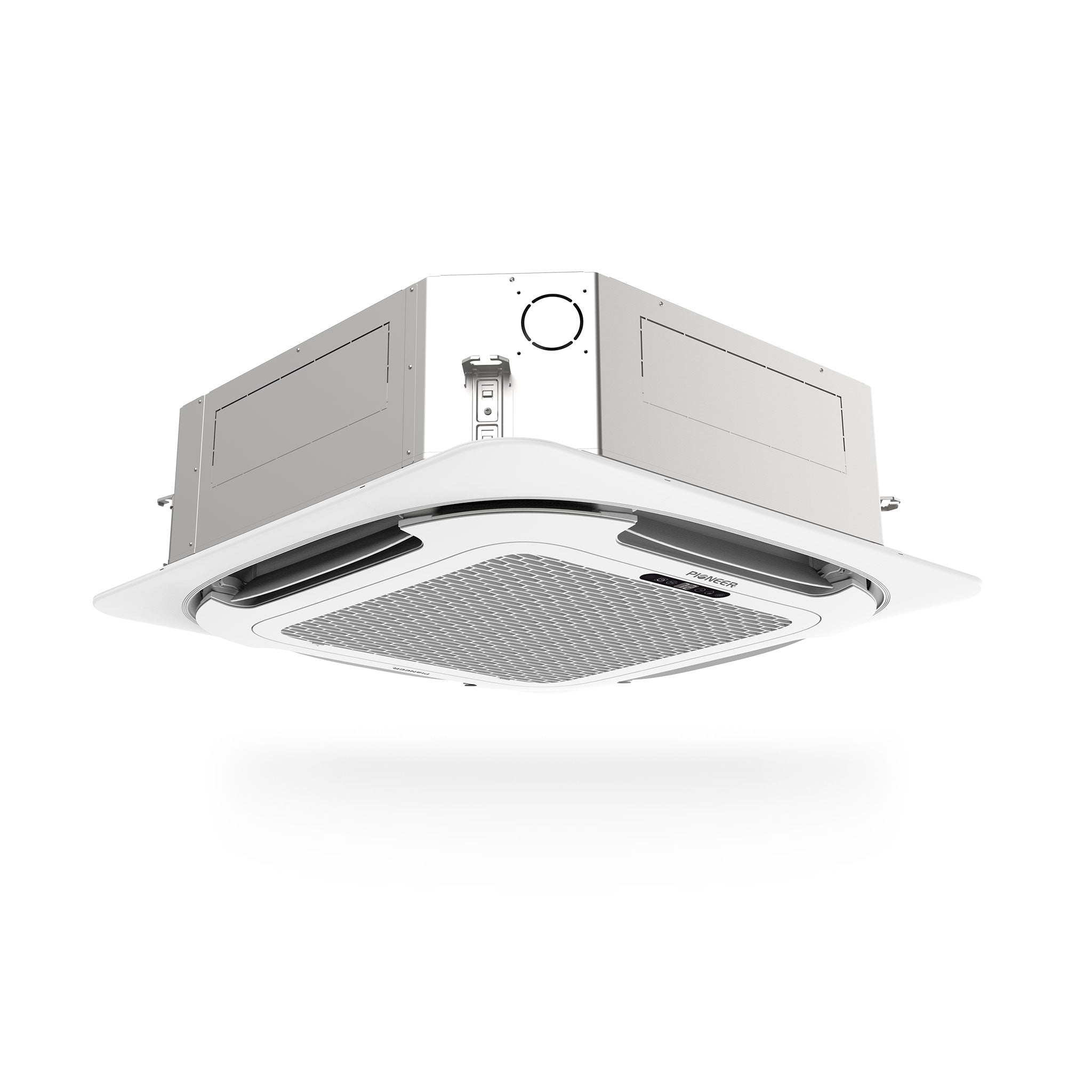

Indoor Unit
- Part Number: CT024GLSILSFHG
- Air Flow (Turbo/Hi/Med/Lo/Mute): 735 / 676 / 529 / 423 / 394 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 50 / 47 / 43 / 38 / 34 dB(A)
- Product Dimensions (W×D×H): 33⅛" × 33¾" × 10¾"
- Carton Dimensions (W×D×H): 36⅞" × 36⅞" × 11½"
- Net / Gross Weight: 51.8 / 59.5 lbs
-

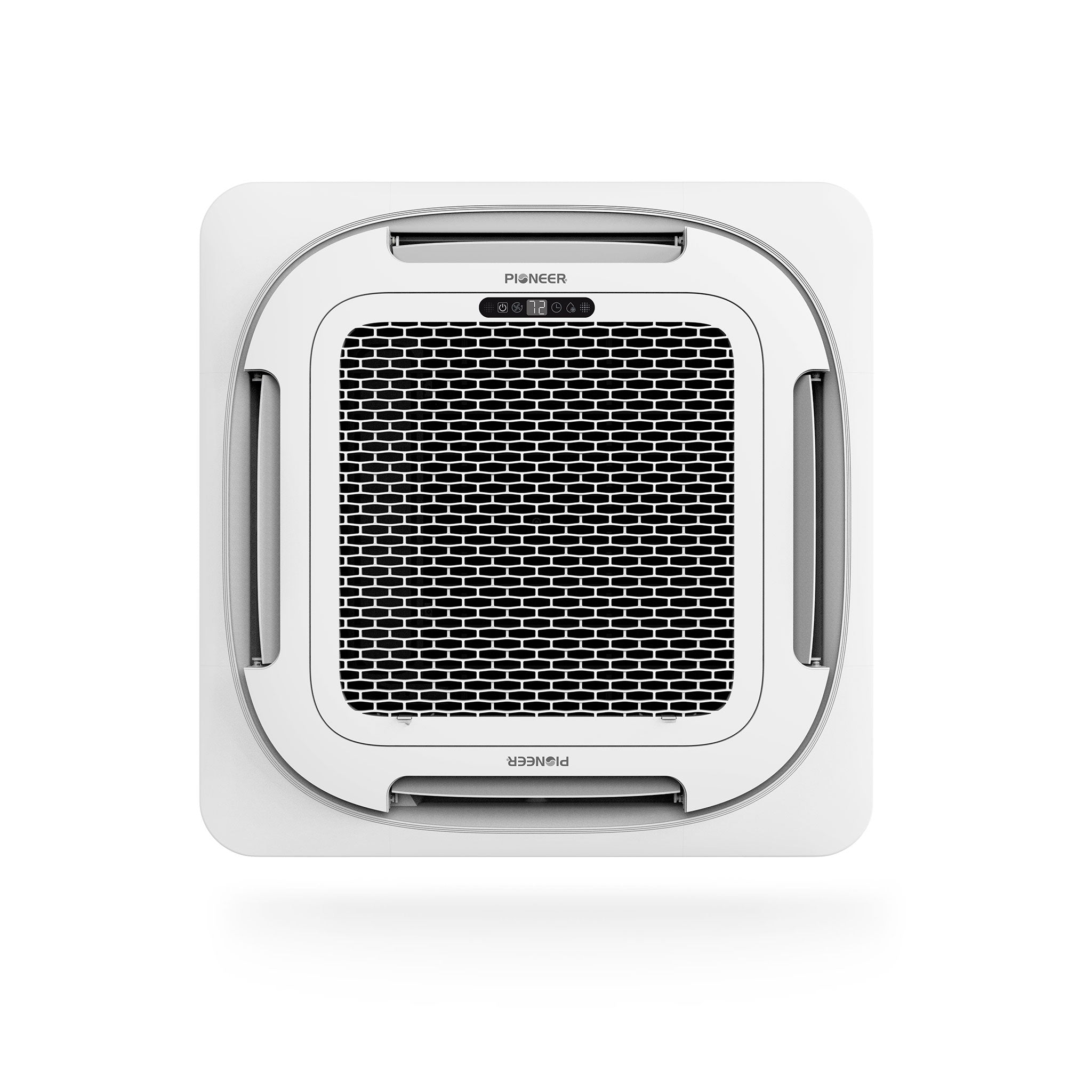

Decorative Panel
- Part Number: CT2460DPNL
- Product Dimensions (W×D×H): 37⅜" × 37⅜" × 2⅞"
- Carton Dimensions (W×D×H): 41½" × 41½" × 3½"
- Net / Gross Weight: 13.2 / 19.8 lbs
-

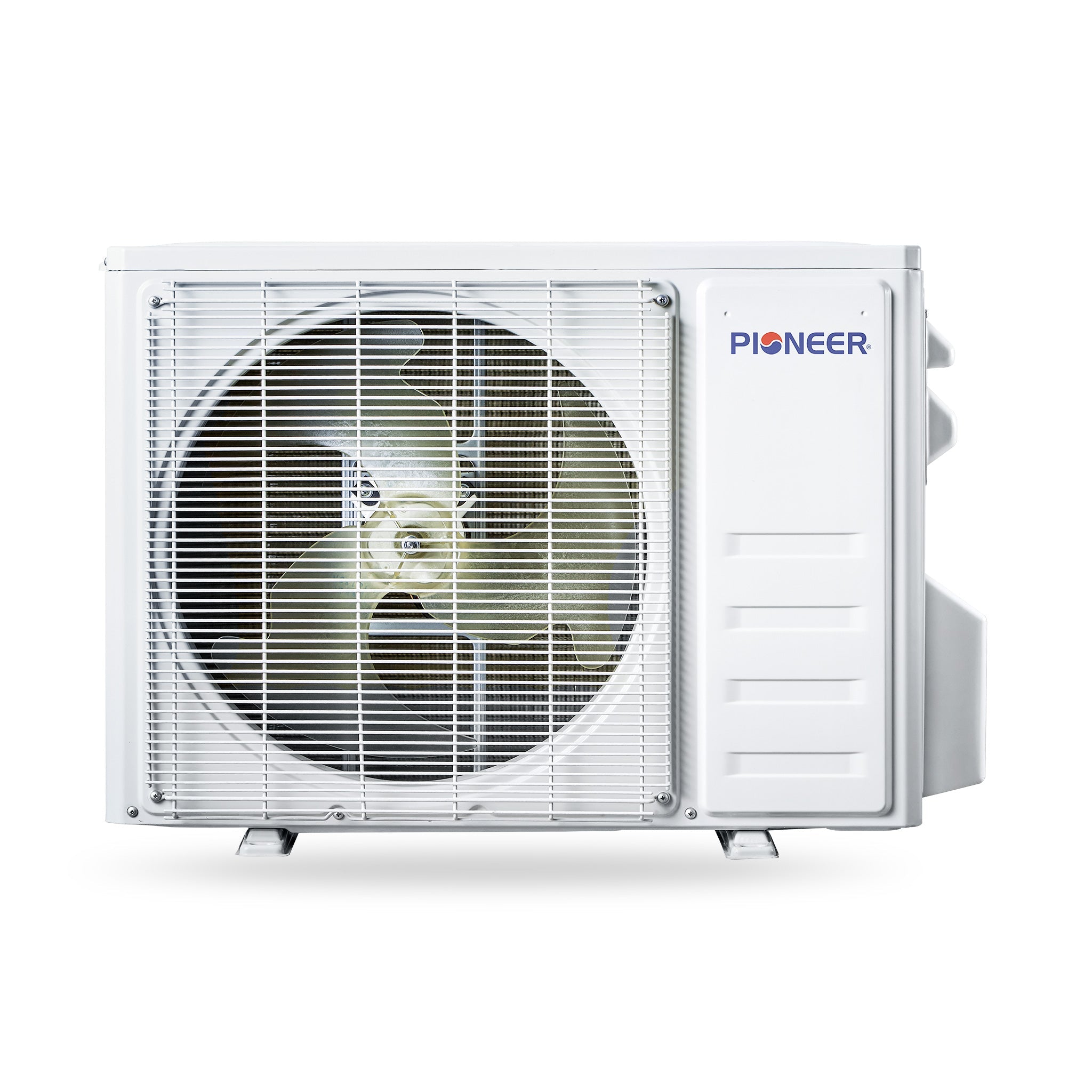

Outdoor Unit
- Part Number: YN024GLSI24RPG
- Breaker Required: 20A (Double-Pole)
- Sound Level: 54 dB(A)
- Net Dimensions (W×D×H): 38½" × 16⅝" × 31⅝"
- Carton Dimensions (W×D×H): 40¼" × 18⅞" × 31⅞"
- Net / Gross Weight: 104.7 / 119.0 lbs
