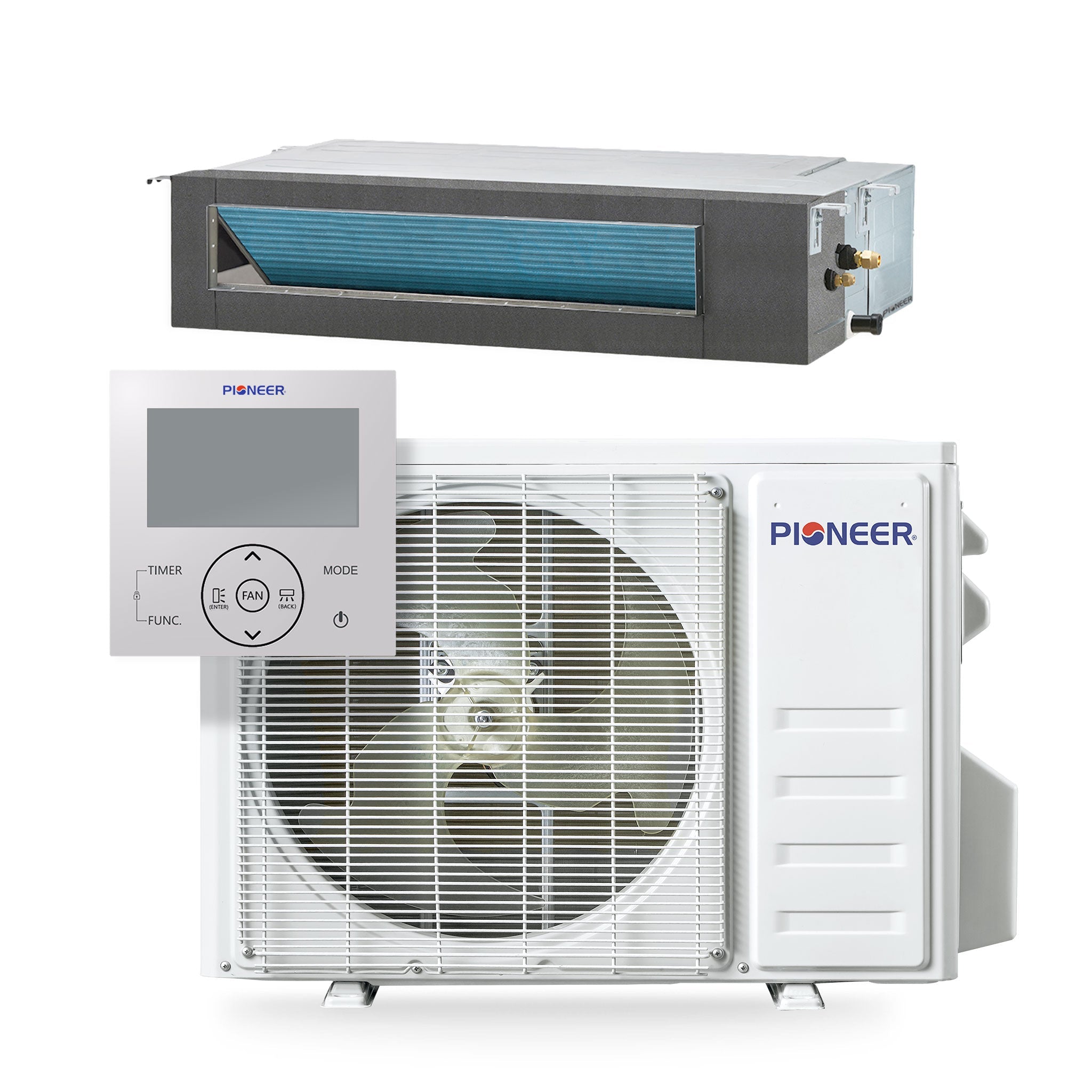

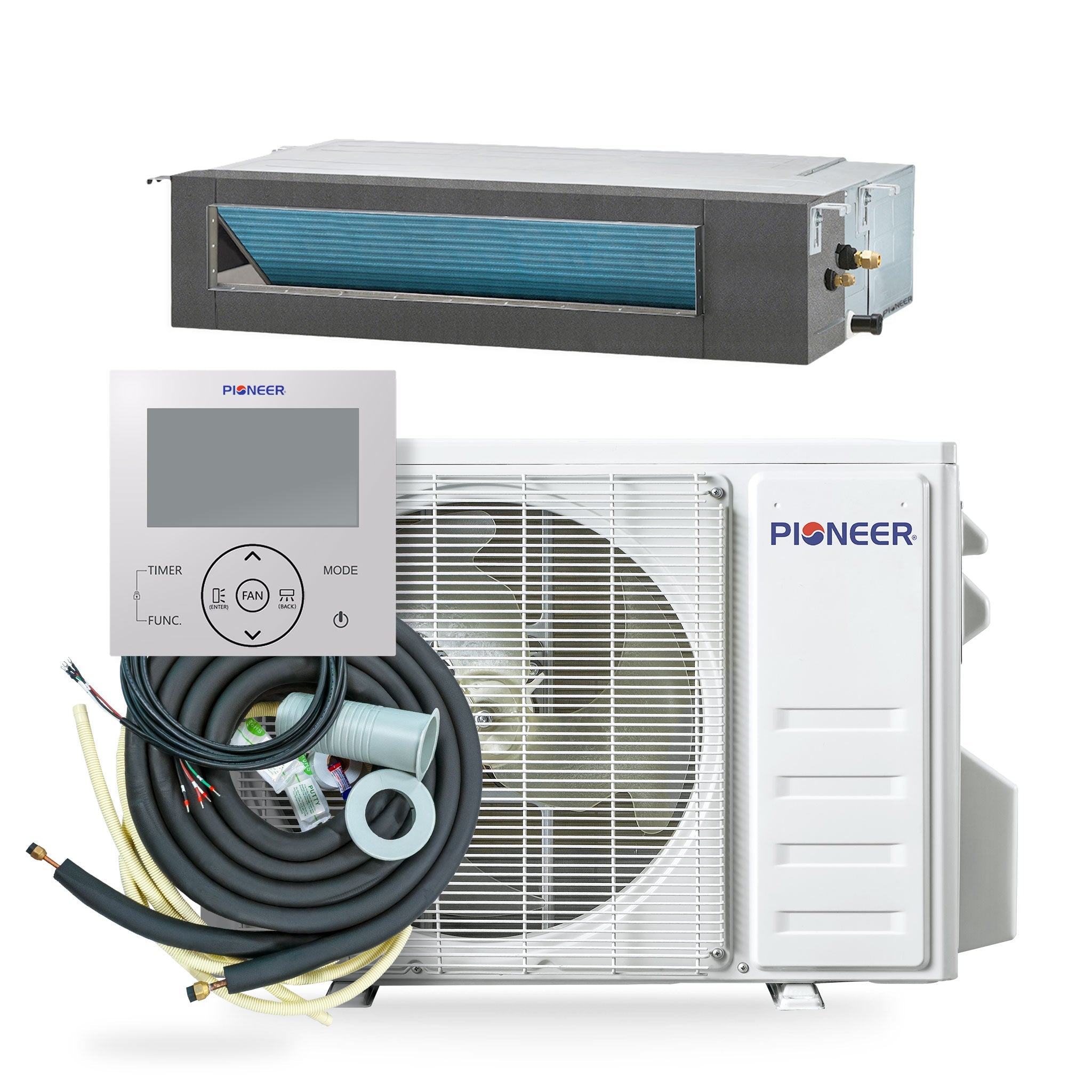

Pioneer Quantum Ultra™ 9,500 BTU Ceiling-Concealed Ducted Mini Split

The Quantum Ultra Ceiling Concealed ducted heat pump delivers high efficiency, quiet comfort, and flexible installation. Powered by a variable-speed DC inverter and factory-precharged with eco-friendly R454b refrigerant, it provides dependable performance in an ultra-low ambient range (down to -13°F heating / up to 131°F cooling) for year-round climate control.

Specifications

• Type: Ceiling-concealed ducted heat pump (cooling & heating)

• Power Supply: 208/230V, 60Hz, 1Ph

• Cooling Capacity: 9,500 BTU/h (range 2,000–10,400)

• Heating Capacity: 9,500 BTU/h (range 2,500–12,300)

• Efficiency: 20.5 SEER2 / 12.5 EER2; 9.5 HSPF2 (Region IV); COP2 3.5 (47°F) / 1.9 (5°F)

• Refrigerant: R454b (factory-precharged)

• Suitable Area: 250–350 sq ft

• Indoor Unit (RT009GLSILCFHG): Airflow 335/305/276/182/182 CFM; Sound 43/41/39 dB(A); Dimensions (W×D×H) 27½" × 19¼" × 7⅞"; Net/Gross 33.1 / 40.8 lbs

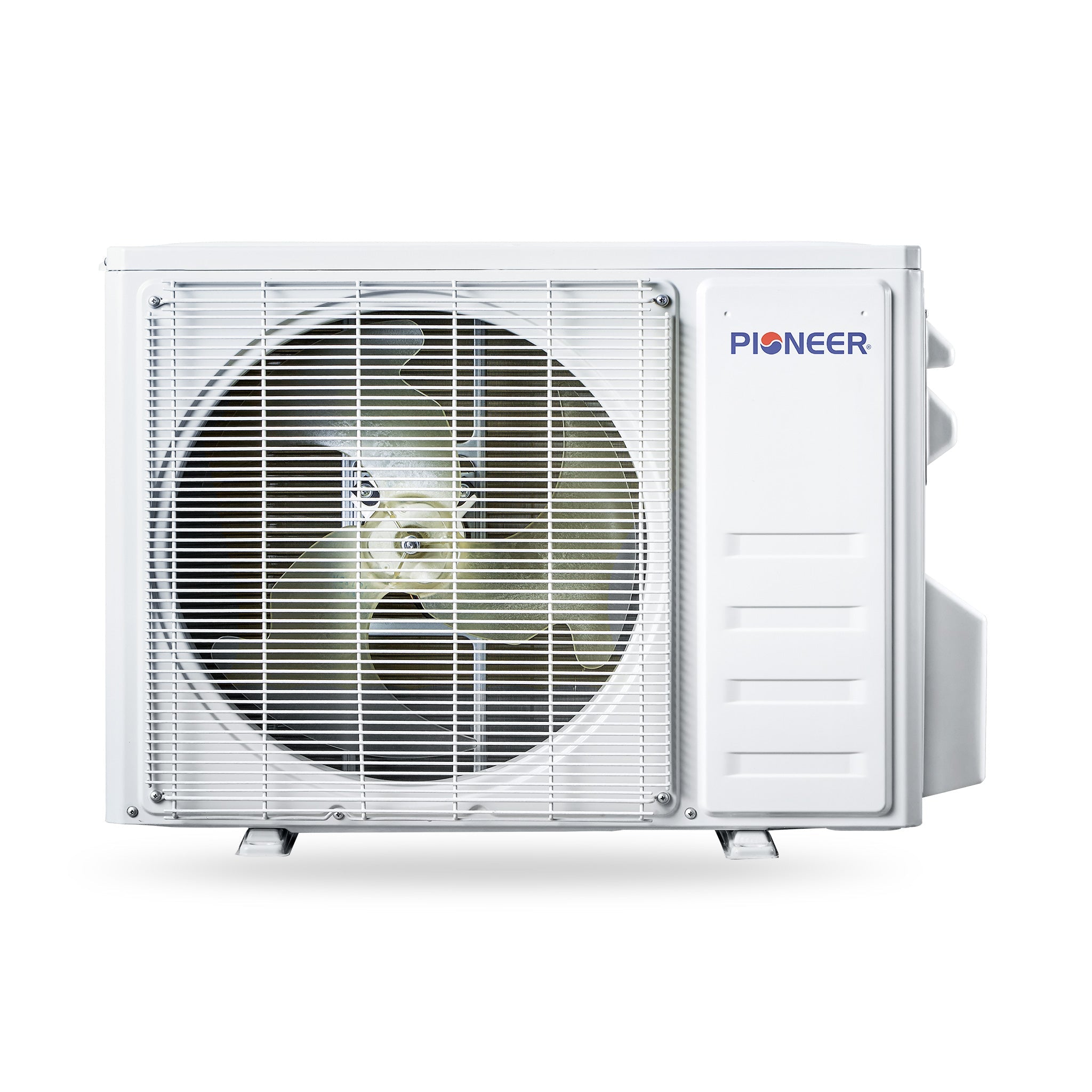

• Outdoor Unit (YN009GLSI24RPG): Breaker 15A (double-pole); Sound 50 dB(A); Dimensions (W×D×H) 31⅞" × 12" × 21⅝"; Net/Gross 52.7 / 57.1 lbs

• AHRI Reference: 217048762

Features

• Operating Modes: Cooling, heating, dry, and ventilation

• Drainage: Dual-drain ports for flexible install

• Filtration: Washable, reusable air filters

• Airflow Control: Dual-axis (motorized up-down & left-right) louvers

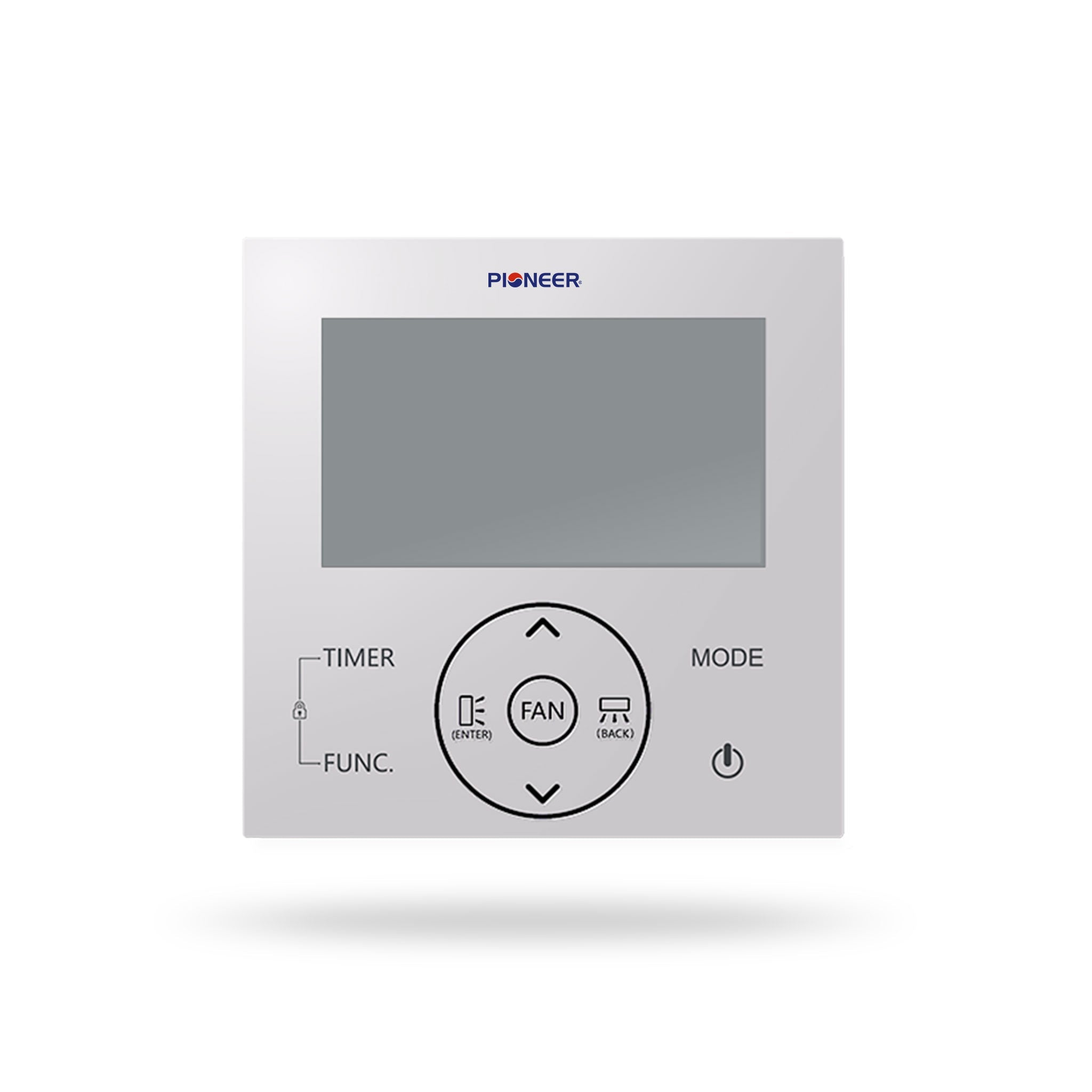

• Remote Functions: ECO & SLEEP modes, Timer On/Off, TURBO, Self-Clean, MEMORY, IFEEL (ambient sensing)

• Ultra-Low Ambient: Heating to −13°F / Cooling to 131°F

Maintenance

• Filters: Rinse washable filters regularly for optimal airflow

• Self-Clean: Run the self-clean cycle periodically to reduce coil residue

• Seasonal Care: Verify condensate drainage; keep outdoor unit clear; schedule professional checkups annually

Warranty

• Coverage: Refer to manufacturer’s current parts and compressor warranty terms

• Documentation: See AHRI Certificate and Energy Guide for certified ratings
