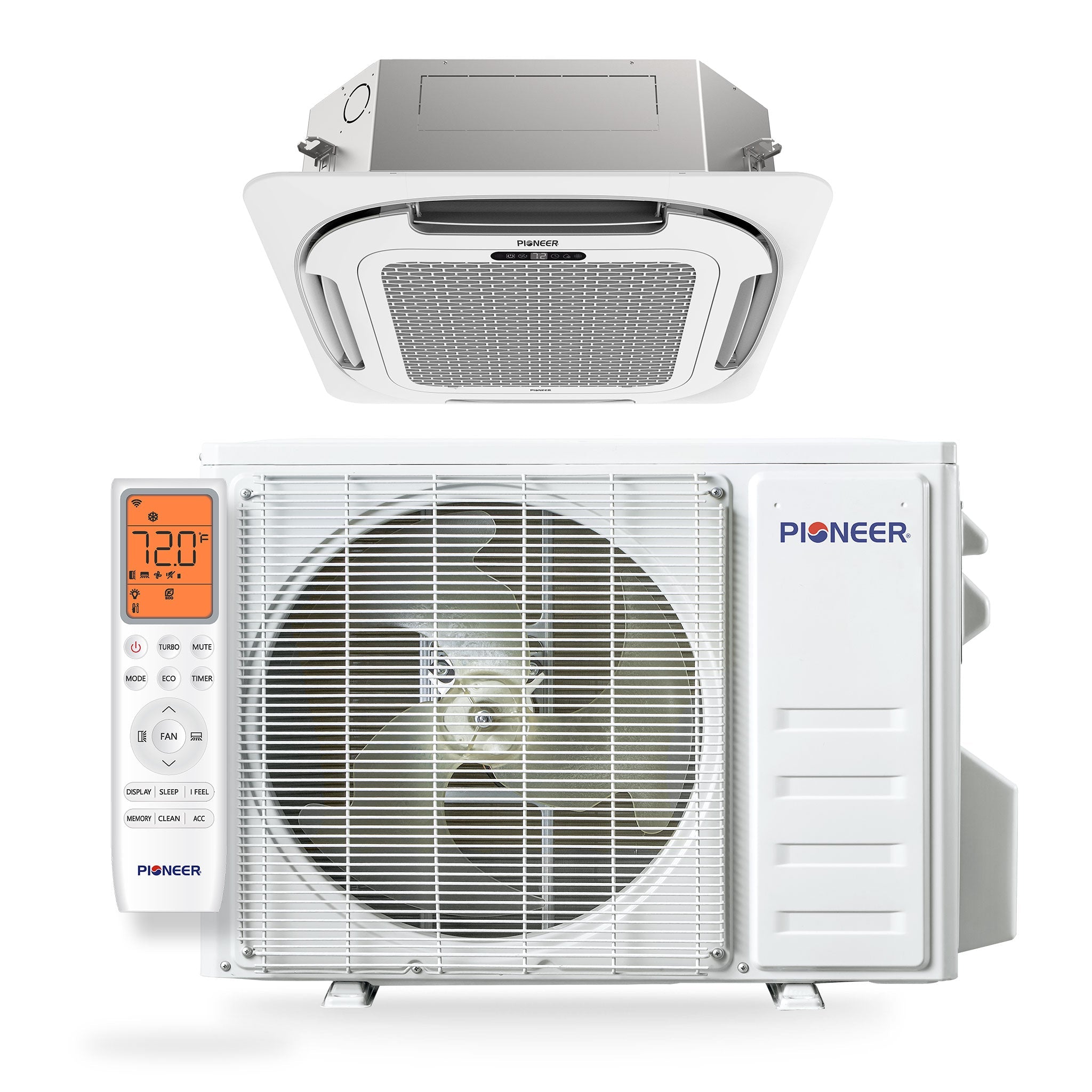

Pioneer Quantum Ultra™ 9,500 BTU Ceiling Cassette Mini Split

The Quantum Ultra Ceiling Cassette ductless heat pump delivers discreet, even comfort with a compact cassette and decorative panel. Powered by a variable-speed DC inverter and factory-precharged with eco-friendly R454b, it achieves high efficiency (23 SEER2 / 12.5 EER2, 10.0 HSPF2) and reliable ultra low ambient performance down to −13°F (heating) and up to 131°F (cooling).

Specifications

• Type: Ceiling cassette mounted ductless heat pump (cooling & heating)

• Power Supply: 208/230V, 60Hz, 1Ph

• Cooling Rated Capacity: 9,500 BTU/h (range 2,000–10,400)

• Heating Rated Capacity: 9,500 BTU/h (range 2,500–12,500)

• Efficiency: 23.0 SEER2 / 12.5 EER2; 10.0 HSPF2 (Region IV); COP2 4.0 (47°F) / 2.0 (5°F)

• Refrigerant: R454b (factory-precharged)

• Suitable Area: 250–350 sq ft

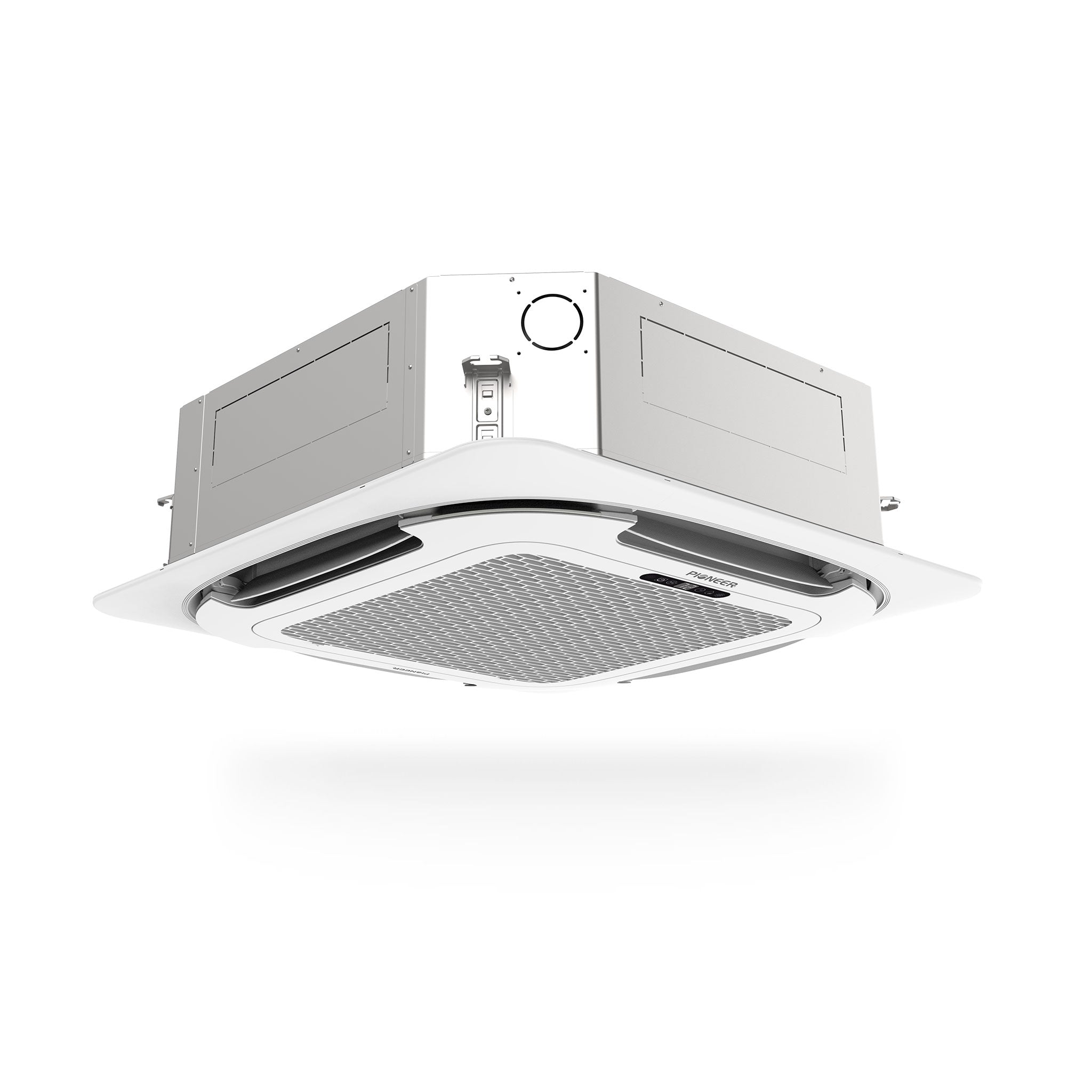

• Indoor Unit (CT009GLSILCFHG): Airflow 326/282.5/235/188/153 CFM; Sound 43/40/33/31/30 dB(A); Dimensions (W×D×H) 22½" × 22½" × 9⅝"; Net/Gross 32.0 / 38.6 lbs

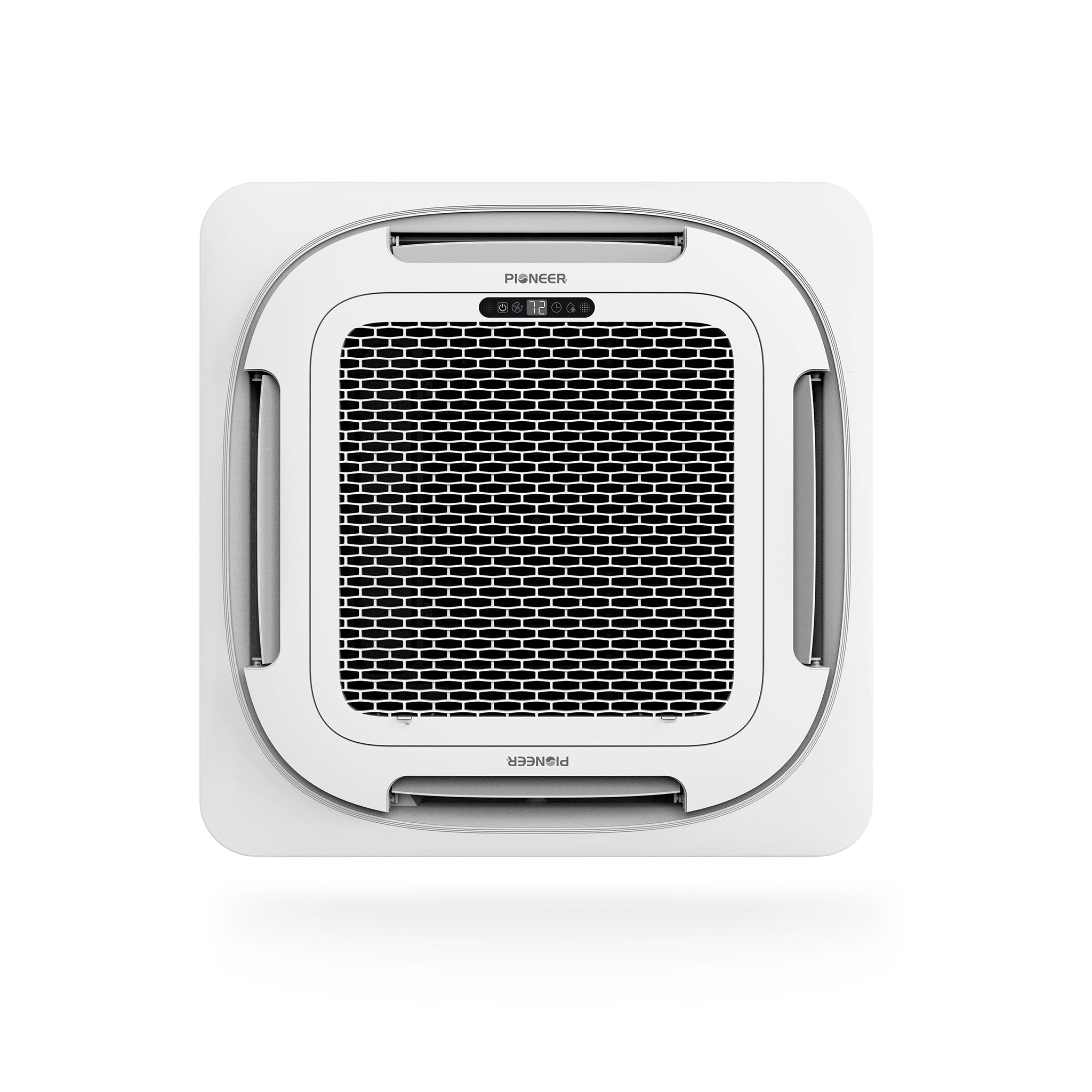

• Decorative Panel (CT0918DPNL): Dimensions (W×D×H) 25⅝" × 25⅝" × 2⅜"; Net/Gross 6.0 / 9.5 lbs

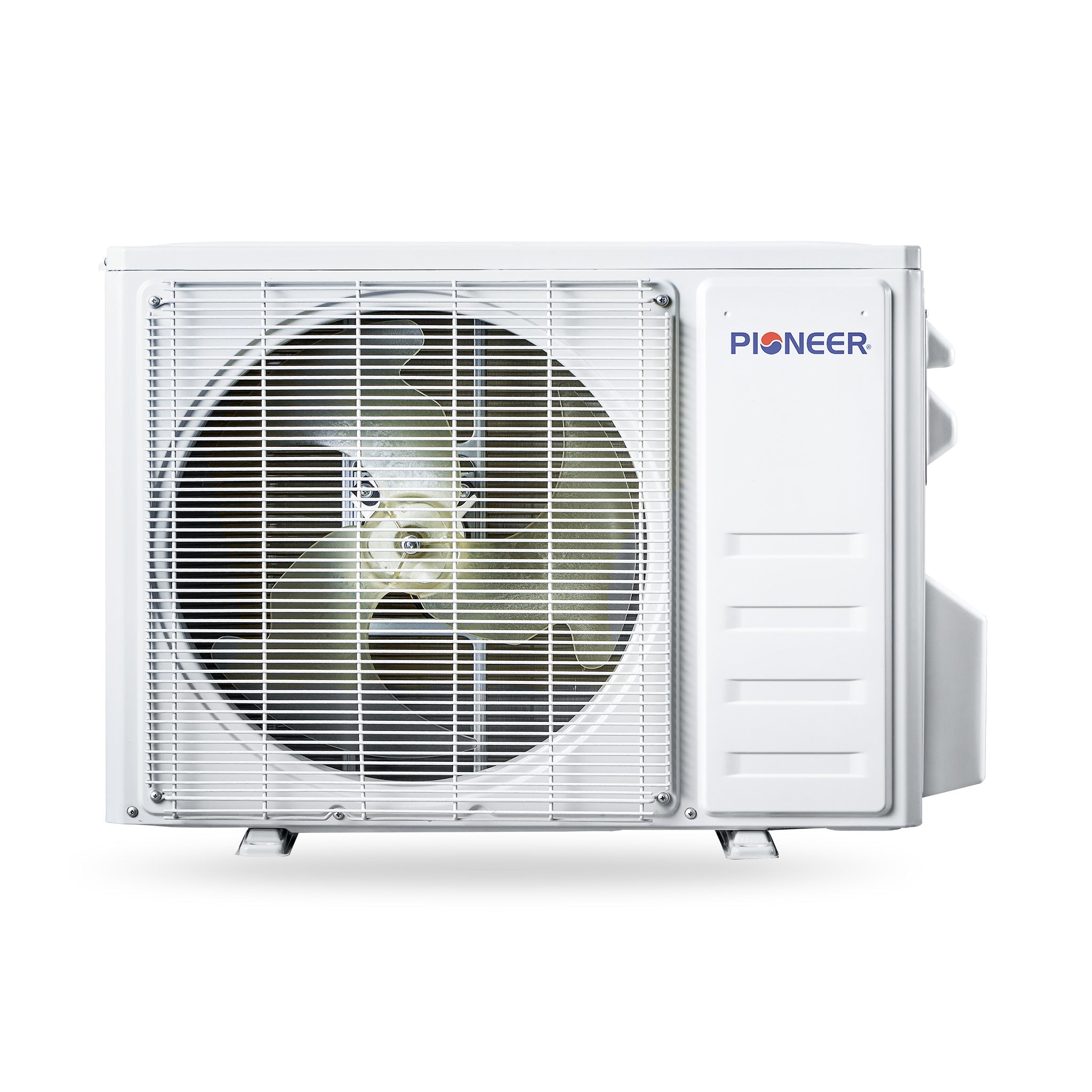

• Outdoor Unit (YN009GLSI24RPG): Breaker 15A (double-pole); Sound 50 dB(A); Dimensions (W×D×H) 31⅞" × 12" × 21⅝"; Net/Gross 52.7 / 57.1 lbs

• AHRI Reference: 217048758

Features

• Operating Modes: Cooling, heating, dry, and ventilation

• Drainage: Dual-drainage ports for flexible installation

• Filtration: Washable, reusable air filters

• Airflow Control: Dual-axis motorized louvers (up-down & left-right)

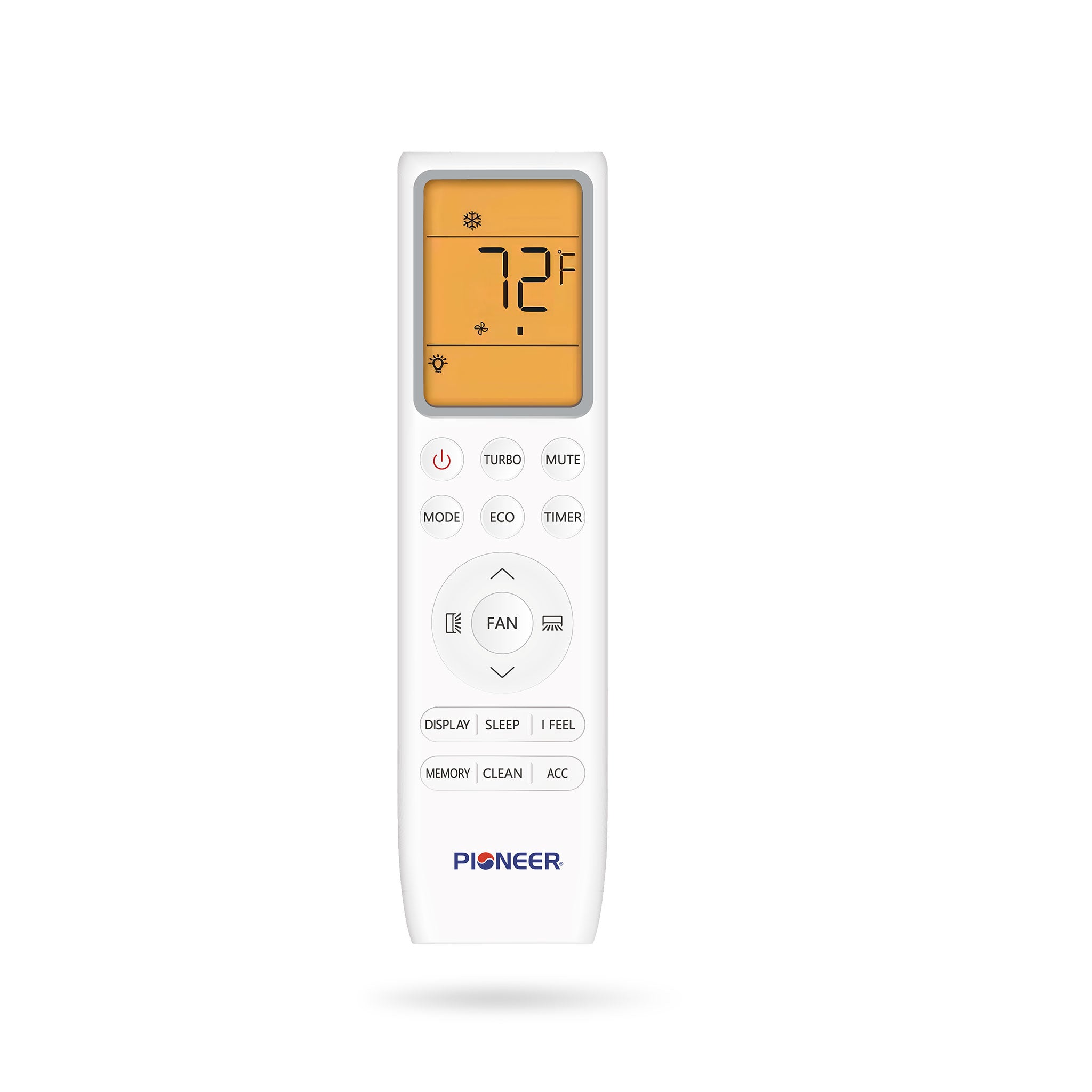

• Remote Functions: ECO & SLEEP modes, Timer On/Off, TURBO, Self-Clean, MEMORY, IFEEL (ambient sensing)

• Ultra Low Ambient: Heating to −13°F / Cooling to 131°F

Maintenance

• Filters: Rinse washable filters regularly to maintain airflow

• Self-Clean: Run the self-clean cycle periodically to reduce coil residue

• Seasonal Care: Verify condensate drainage; keep outdoor coil clear; schedule annual professional checkups

Warranty

• Coverage: Refer to manufacturer’s current parts and compressor warranty terms

• Documentation: See AHRI Certificate and Energy Guide for certified ratings
